86130201 Series

Catalog

CONN HEADER R/A 20POS 2.54MM

Part	Material Flammability Rating	Shrouding	Contact Shape	Number of Positions	Voltage Rating	Termination	Style	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Type	Mounting Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Connector Type	Features	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Insulation Height	Insulation Height	Number of Rows	Contact Length - Post	Contact Length - Post

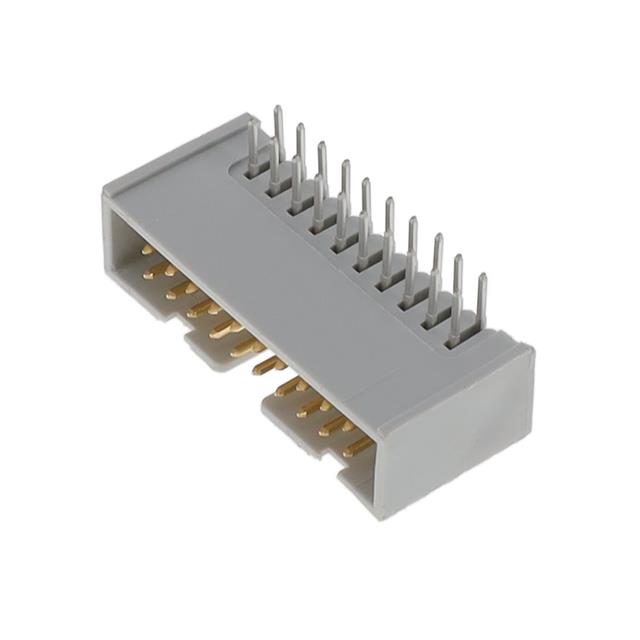

Amphenol ICC (FCI) 86130201013345E1LF	UL94 V-0	Shrouded - 4 Wall	Circular	20	250 VDC	Solder	Board to Cable/Wire	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	Gray	0.1 in	2.54 mm	Male Pin	Through Hole Right Angle	Push-Pull	2.54 mm	0.1 in	Copper Alloy	Header	Keying Slot	6.1 mm	0.24 in	Gold or Gold-Palladium	All	0.165 in	4.19 mm	Tin	8.75 mm	0.344 in	2
Amphenol ICC (FCI) 86130201024345E1LF	UL94 V-0	Shrouded - 4 Wall	Circular	20	250 VDC	Solder	Board to Cable/Wire	-55 °C	125 °C	Polybutylene Terephthalate (PBT)	Gray	0.1 in	2.54 mm	Male Pin	Through Hole	Push-Pull	2.54 mm	0.1 in	Copper Alloy	Header	Keying Slot	6.1 mm	0.24 in	Gold or Gold-Palladium	All			Tin	14.15 mm	0.557 in	2	0.114 in	2.9 mm
