UF318 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

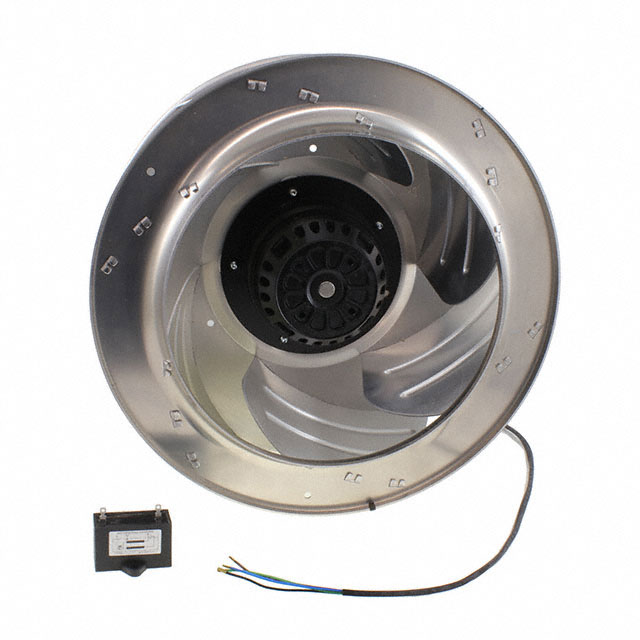

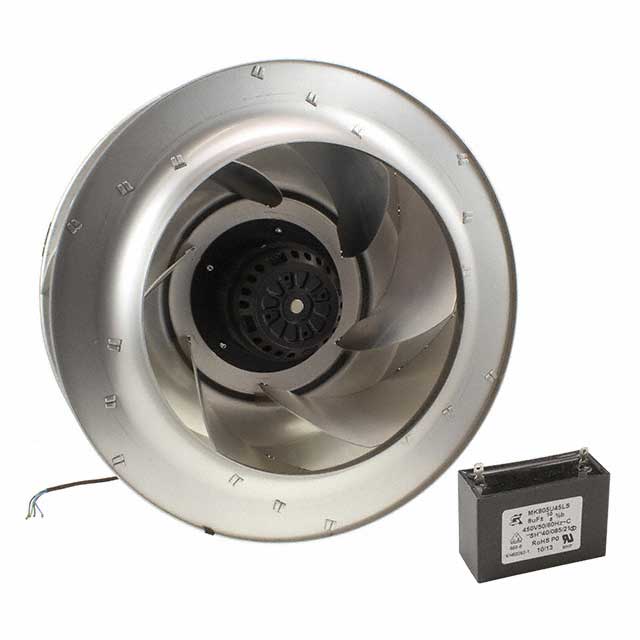

FAN IMP MTRZ 318X154.4MM 230VAC
| Part | Material - Blade | Material - Frame | Current Rating (Amps) | Features | Bearing Type | Width [y] | Static Pressure | Static Pressure | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | RPM | Air Flow | Air Flow | Fan Type | Approval Agency | Termination | Weight [custom] | Weight [custom] | Size / Dimension [diameter] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Steel | Steel | 0.7 A | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | Ball | 154.4 mm | 1.6 in H2O | 398.6 Pa | -20 ░C | 70 °C | 230 VAC | 1580 RPM | 1165 CFM | 32.62 mł/min | Motorized Impellers | CE cUL TUV UL | 4 Wire Leads | 8.3 lbs | 3.8 kg | 318 mm | 160 W |
 Mechatronics Fan Group | Steel | Steel | 0.7 A | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | Ball | 154.4 mm | 1.6 in H2O | 398.6 Pa | -20 ░C | 70 °C | 230 VAC | 1580 RPM | 1165 CFM | 32.62 mł/min | Motorized Impellers | CE cUL TUV UL | 4 Wire Leads | 8.3 lbs | 3.8 kg | 318 mm | 160 W |
