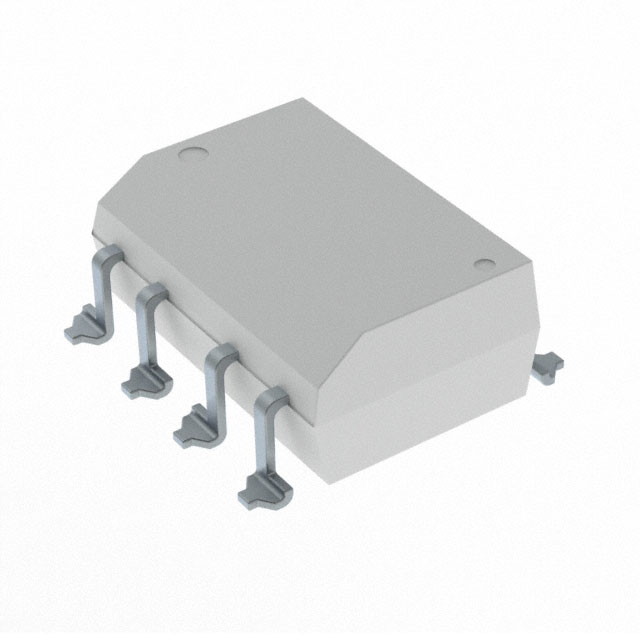

TLP382 Series

Catalog

MOSFET OUTPUT OPTOCOUPLERS PHOTORELAY 3A 100V 2500VRMS 720PF

Part	Voltage - Load [Max]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Approval Agency	Load Current	Voltage - Input	Mounting Type	Supplier Device Package	On-State Resistance (Max) [Max]
Toshiba Semiconductor and Storage TLP3823F(LF4,F	100 V	Gull Wing	-40 C	110 °C	AC DC	cUL UL	3 A	1.64 VDC	Surface Mount	8-SMD	150 mOhms

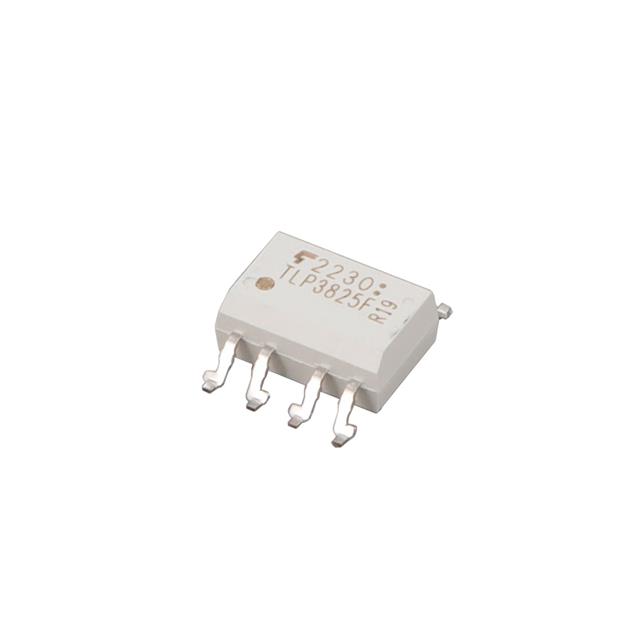

Toshiba Semiconductor and Storage TLP3825F(LF4,F	200 V	Gull Wing	-40 C	110 °C	AC DC	CSA cUL UL	1.5 A	1.64 VDC	Surface Mount	8-SMD	500 mOhm
Toshiba Semiconductor and Storage TLP3823(TP5,F	100 V	Gull Wing	-40 C	110 °C	AC DC	cUL UL	3 A	1.64 VDC	Surface Mount	8-SMD	150 mOhms
Toshiba Semiconductor and Storage TLP3823(LF5,F	100 V	Gull Wing	-40 C	110 °C	AC DC	cUL UL	3 A	1.64 VDC	Surface Mount	8-SMD	150 mOhms
Toshiba Semiconductor and Storage TLP3825(TP5,F	200 V	Gull Wing	-40 C	110 °C	AC DC	CSA cUL UL	1.5 A	1.64 VDC	Surface Mount	8-SMD	500 mOhm

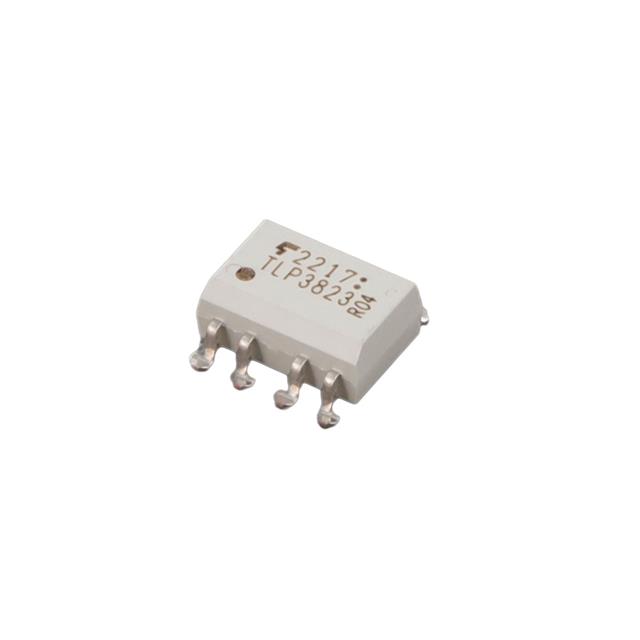

Toshiba Semiconductor and Storage TLP3823(LF1,F	100 V	Gull Wing	-40 C	110 °C	AC DC	cUL UL	3 A	1.64 VDC	Surface Mount	8-SMD	150 mOhms
Toshiba Semiconductor and Storage TLP3825(LF1,F	200 V	Gull Wing	-40 C	110 °C	AC DC	CSA cUL UL	1.5 A	1.64 VDC	Surface Mount	8-SMD	500 mOhm
Toshiba Semiconductor and Storage TLP3825(LF5,F	200 V	Gull Wing	-40 C	110 °C	AC DC	CSA cUL UL	1.5 A	1.64 VDC	Surface Mount	8-SMD	500 mOhm
