737-020 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 20POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Contact Material	Card Type	Contact Finish	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Number of Rows [custom]	Number of Positions/Bay/Row	Color	Read Out	Termination	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Number of Rows

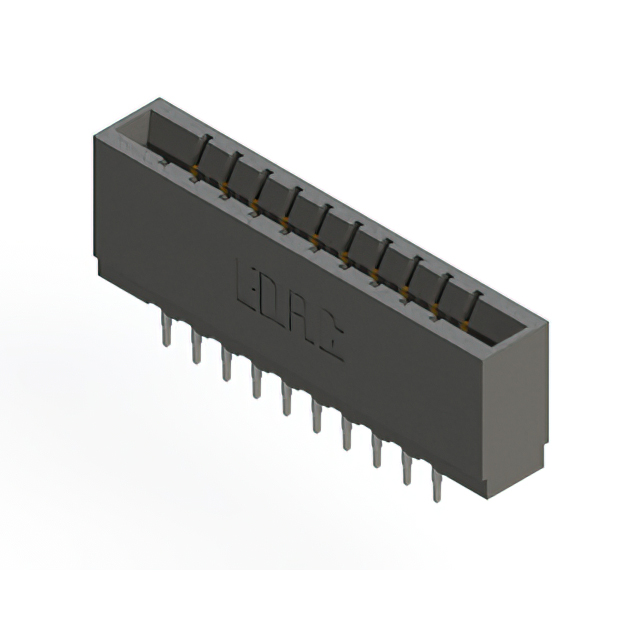

EDAC Inc. 737-020-560-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	-40 C	105 ░C	Cantilever Make Before Break	20	2	10	Black	Dual	Press-Fit	Female	30 Áin	0.76 Ám

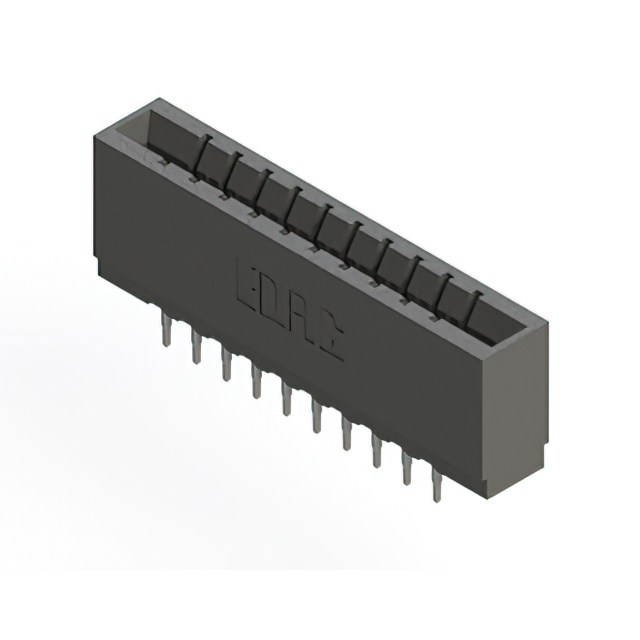

EDAC Inc. 737-020-520-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	-40 C	105 ░C	Cantilever	20	2	10	Black	Dual	Press-Fit	Female	30 Áin	0.76 Ám
EDAC Inc. 737-020-541-106	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Non Specified - Single Edge	Gold	3.96 mm	0.156 in	-40 C	105 ░C	Cantilever	20		20 Bay/Row	Black	Single	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	1	1

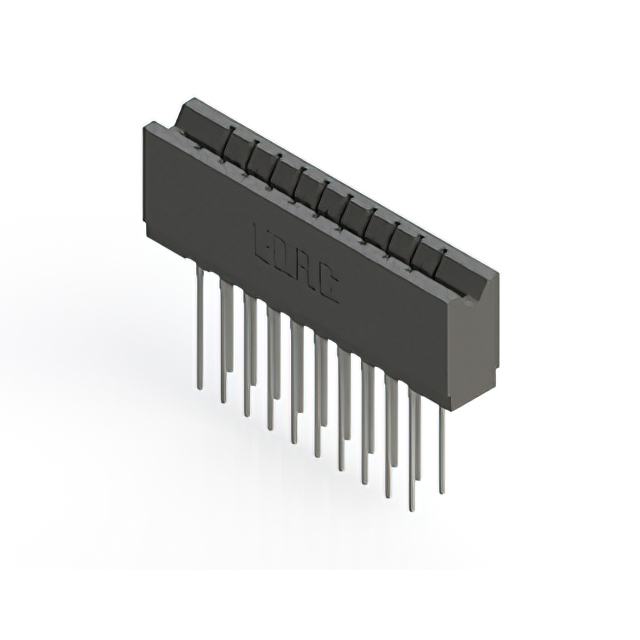

EDAC Inc. 737-020-541-206	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	-40 C	105 ░C	Cantilever	20	2	10	Black	Dual	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám

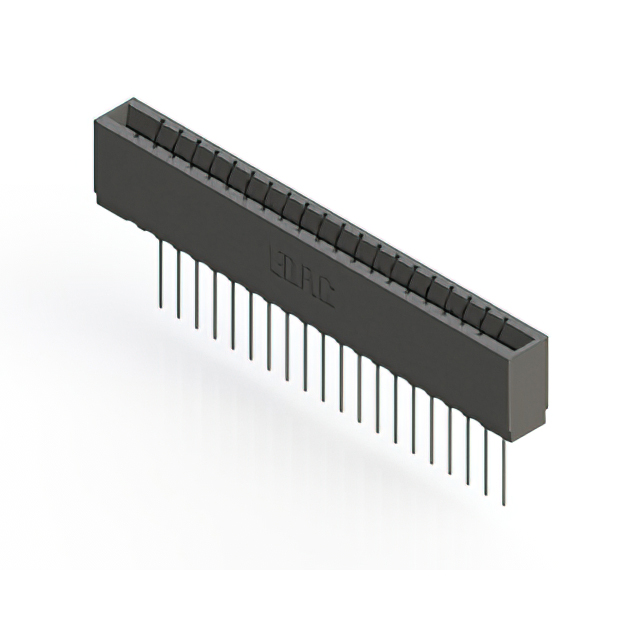

EDAC Inc. 737-020-541-101	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Non Specified - Single Edge	Gold	3.96 mm	0.156 in	-40 C	105 ░C	Cantilever	20		20 Bay/Row	Black	Single	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	1	1
EDAC Inc. 737-020-522-106	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Non Specified - Single Edge	Gold	3.96 mm	0.156 in	-40 C	105 ░C	Cantilever	20		20 Bay/Row	Black	Single	Press-Fit	Female	30 Áin	0.76 Ám	1	1
EDAC Inc. 737-020-545-206	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	-40 C	105 ░C	Cantilever	20	2	10	Black	Dual	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám
EDAC Inc. 737-020-540-106	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Non Specified - Single Edge	Gold	3.96 mm	0.156 in	-40 C	105 ░C	Cantilever	20		20 Bay/Row	Black	Single	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	1	1
EDAC Inc. 737-020-522-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	-40 C	105 ░C	Cantilever	20	2	10	Black	Dual	Press-Fit	Female	30 Áin	0.76 Ám
EDAC Inc. 737-020-525-206	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	-40 C	105 ░C	Cantilever	20	2	10	Black	Dual	Press-Fit	Female	30 Áin	0.76 Ám
