123-47 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

STANDARD WIRE WRAP DBL SKT

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Material Flammability Rating	Contact Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Mating	Termination	Housing Material	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Type	Type	Type	Contact Material - Post	Number of Positions or Pins (Grid)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 123-47-318-41-001000	12.95 mm	0.51 "	3 A	UL94 V-0	10 mOhm	-55 C	125 °C	Open Frame	Through Hole	Tin	Flash	Wire Wrap	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Beryllium Copper	7.62 mm	0.3 in	DIP	Brass Alloy	18	200 µin	5.08 µm	Gold	0.1 in	2.54 mm

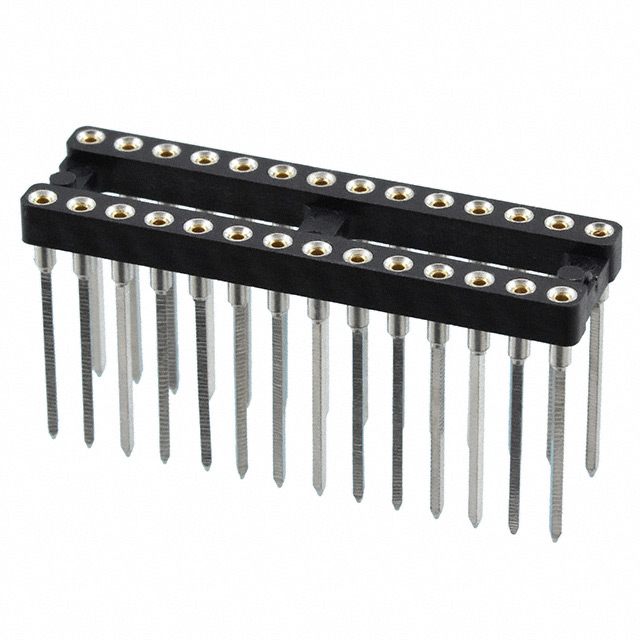

Mill-Max Manufacturing Corp. 123-47-328-41-001000	3.18 mm	0.125 in	3 A			-55 C	125 °C	Open Frame	Through Hole	Tin	Flash	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Beryllium Copper	7.62 mm	0.3 in	DIP	Brass Alloy	28	200 µin	5.08 µm	Gold	0.1 in	2.54 mm

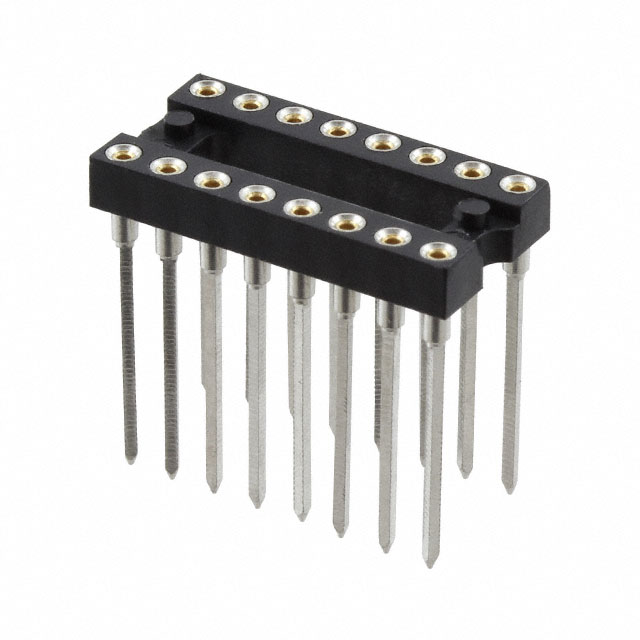

Mill-Max Manufacturing Corp. 123-47-316-41-001000	3.18 mm	0.125 in	3 A			-55 C	125 °C	Open Frame	Through Hole	Tin	Flash	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Beryllium Copper	7.62 mm	0.3 in	DIP	Brass Alloy	16	200 µin	5.08 µm	Gold	0.1 in	2.54 mm	2	8

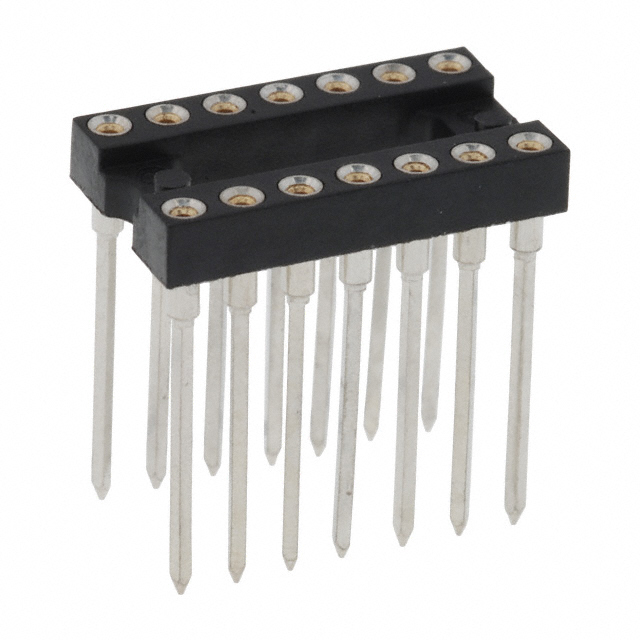

Mill-Max Manufacturing Corp. 123-47-314-41-001000	3.18 mm	0.125 in	3 A			-55 C	125 °C	Open Frame	Through Hole	Tin	Flash	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Beryllium Copper	7.62 mm	0.3 in	DIP	Brass Alloy	14	200 µin	5.08 µm	Gold	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 123-47-636-41-001000	12.95 mm	0.51 "	3 A	UL94 V-0	10 mOhm	-55 C	125 °C	Open Frame	Through Hole	Tin	Flash	Wire Wrap	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Beryllium Copper			DIP	Brass Alloy	36	200 µin	5.08 µm	Gold	0.1 in	2.54 mm			15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 123-47-952-41-001000	12.95 mm	0.51 "	3 A	UL94 V-0	10 mOhm	-55 C	125 °C	Open Frame	Through Hole	Tin	Flash	Wire Wrap	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Beryllium Copper	22.86 mm	0.9 in	DIP	Brass Alloy		200 µin	5.08 µm	Gold	0.1 in	2.54 mm

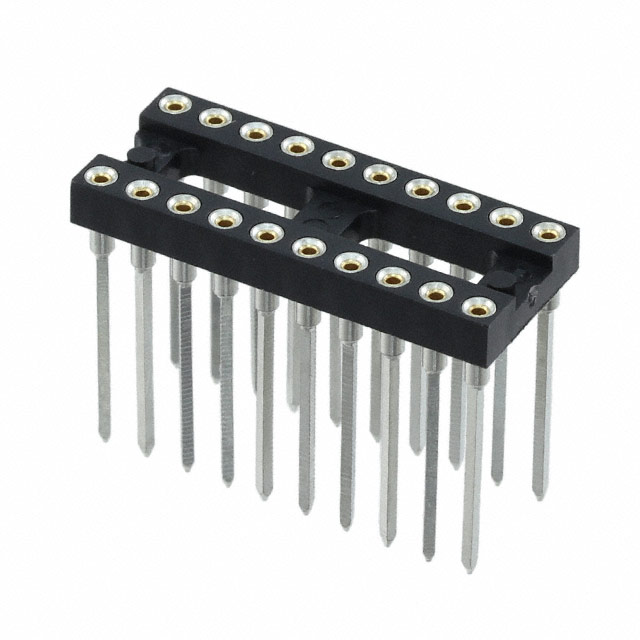

Mill-Max Manufacturing Corp. 123-47-320-41-001000	3.18 mm	0.125 in	3 A			-55 C	125 °C	Open Frame	Through Hole	Tin	Flash	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Beryllium Copper	7.62 mm	0.3 in	DIP	Brass Alloy	20	200 µin	5.08 µm	Gold	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 123-47-422-41-001000	12.95 mm	0.51 "	3 A	UL94 V-0	10 mOhm	-55 C	125 °C	Open Frame	Through Hole	Tin	Flash	Wire Wrap	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Beryllium Copper		0.4 in	DIP	Brass Alloy	22	200 µin	5.08 µm	Gold	0.1 in	2.54 mm					11	2
Mill-Max Manufacturing Corp. 123-47-304-41-001000	12.95 mm	0.51 "	3 A	UL94 V-0	10 mOhm	-55 C	125 °C	Open Frame	Through Hole	Tin	Flash	Wire Wrap	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Beryllium Copper	7.62 mm	0.3 in	DIP	Brass Alloy	4 pins	200 µin	5.08 µm	Gold	0.1 in	2.54 mm							2 x 2
Mill-Max Manufacturing Corp. 123-47-652-41-001000	12.95 mm	0.51 "	3 A	UL94 V-0	10 mOhm	-55 C	125 °C	Open Frame	Through Hole	Tin	Flash	Wire Wrap	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 "	2.54 mm	Beryllium Copper			DIP	Brass Alloy		200 µin	5.08 µm	Gold	0.1 in	2.54 mm			15.24 mm	0.6 in
