CSS2H Series
Manufacturer: Bourns Inc.
Beta
⌘K

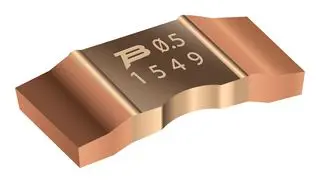

SMD CURRENT SENSE RESISTOR, 0.001 OHM, CSS2H-2512 SERIES, 2512 [6432 METRIC], 5 W, ± 1%
| Part | Package / Case | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Resistance | Number of Terminations [custom] | Tolerance | Temperature Coefficient | Power (Watts) | Composition | Package / Case | Supplier Device Package | Features | Height - Seated (Max) [z] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Size / Dimension [y] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2512 2512 (6432 Metric) | AEC-Q200 | 170 °C | -55 C | 0.039 in | 1 mm | 3.05 mm | 6.35 mm | 0.12 in | 0.25 in | 1 mOhms | 2 | 1 % | 75 ppm/°C | 5 W | Metal Element | 6332 Metric | 2512 | Automotive AEC-Q200 Current Sense | |||||
 Bourns Inc. | 2512 2512 (6432 Metric) | AEC-Q200 | 170 °C | -55 C | 0.041 in | 1.03 mm | 3.05 mm | 6.35 mm | 0.12 in | 0.25 in | 3 mOhms | 2 | 1 % | 50 ppm/░C | 4 W | Metal Element | 6332 Metric | 2512 | Automotive AEC-Q200 Current Sense | |||||

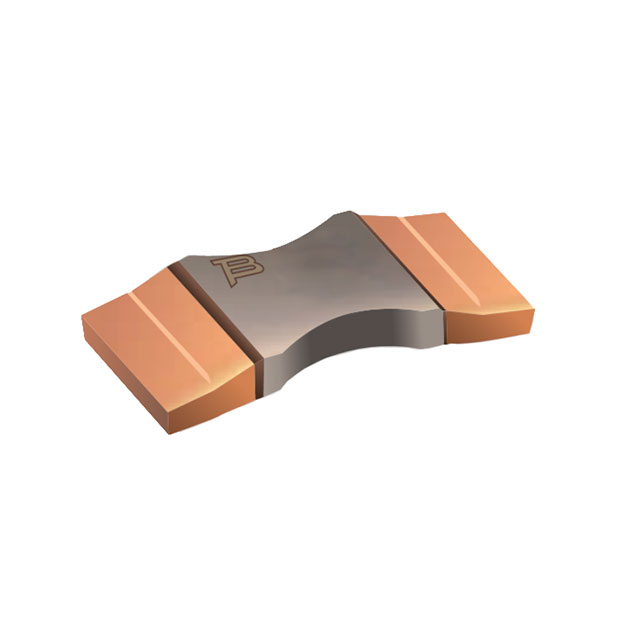

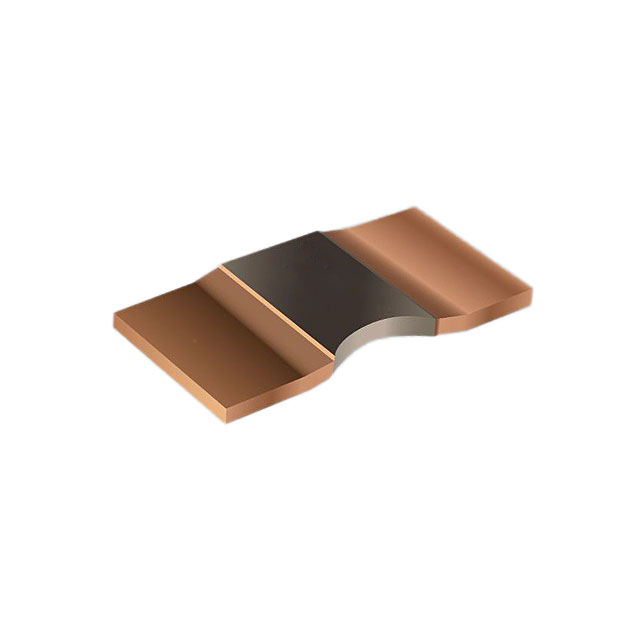

 Bourns Inc. | 2512 2512 (6432 Metric) | AEC-Q200 | 170 °C | -55 C | 3.05 mm | 6.35 mm | 0.12 in | 0.25 in | 300 µOhms | 2 | 1 % | 50 ppm/░C | 6 W | Metal Element | 6332 Metric | 2512 | Automotive AEC-Q200 Current Sense | 1.87 mm | 0.074 " | |||||
Bourns Inc. | 2512 2512 (6432 Metric) | AEC-Q200 | 170 °C | -55 C | 0.052 in | 3.05 mm | 6.35 mm | 0.12 in | 0.25 in | 2 mOhms | 2 | 1 % | 50 ppm/░C | 5 W | Metal Element | 6332 Metric | 2512 | Automotive AEC-Q200 Current Sense | 1.32 mm | |||||
 Bourns Inc. | Nonstandard | AEC-Q200 | 170 °C | -55 C | 0.048 in | 15 mm | 0.305 in | 0.591 in | 2 mOhms | 2 | 1 % | 50 ppm/░C | 7 W | Metal Element | Automotive AEC-Q200 Current Sense | 1.23 mm | 7.75 mm | 5930 | ||||||
Bourns Inc. | 2512 2512 (6432 Metric) | AEC-Q200 | 170 °C | -55 C | 0.041 in | 1.03 mm | 3.05 mm | 6.35 mm | 0.12 in | 0.25 in | 3 mOhms | 2 | 1 % | 50 ppm/░C | 4 W | Metal Element | 6332 Metric | 2512 | Automotive AEC-Q200 Current Sense | |||||
Bourns Inc. | Nonstandard | AEC-Q200 | 170 °C | -55 C | 0.04 in | 1.02 mm | 15 mm | 0.305 in | 0.591 in | 3 mOhms | 2 | 1 % | 50 ppm/░C | 6 W | Metal Element | Automotive AEC-Q200 Current Sense | 7.75 mm | 5930 | ||||||

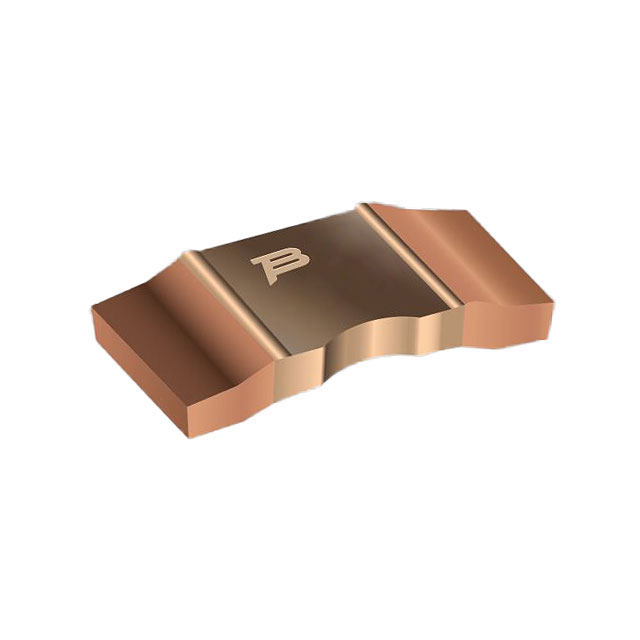

 Bourns Inc. | 3920 (1052 Metric) | AEC-Q200 | 170 °C | -55 C | 0.055 in | 1.39 mm | 10 mm | 0.205 " | 0.394 in | 2 mOhms | 2 | 1 % | 50 ppm/░C | 6 W | Metal Element | 3920 | Automotive AEC-Q200 Current Sense | 5.2 mm | ||||||
Bourns Inc. | Nonstandard | AEC-Q200 | 170 °C | -55 C | 0.04 in | 1.02 mm | 15 mm | 0.305 in | 0.591 in | 3 mOhms | 2 | 1 % | 50 ppm/░C | 6 W | Metal Element | Automotive AEC-Q200 Current Sense | 7.75 mm | 5930 | ||||||

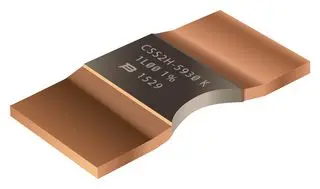

Bourns Inc. | Nonstandard | AEC-Q200 | 170 °C | -55 C | 0.048 in | 15 mm | 0.305 in | 0.591 in | 0.5 mOhms | 2 | 1 % | 50 ppm/░C | 8 W | Metal Element | Automotive AEC-Q200 Current Sense | 1.23 mm | 7.75 mm | 5930 |
