TB1-2A Series

Catalog

SWITCH TOGGLE DPST 20A 125V

Part	Electrical Life (Cycles)	Voltage Rating - AC	Actuator Length	Bushing Thread	Illumination	Current Rating	Mounting Type	Panel Cutout Diameter	Panel Cutout Shape	Switch Function	Actuator Type	Termination Style	Voltage Rating - DC	Circuit	Quick Connect Size (0.250")	Actuator Material	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating

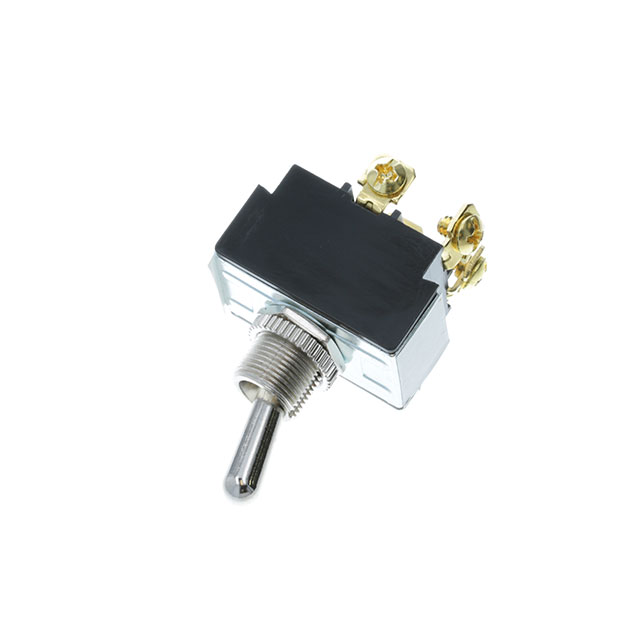

Switch Components TB1-2A-DC-6	6000 Cycles	125 V	16.5 mm	15/32-32	Non-Illuminated	20 A 21 A	Panel Mount	12 mm	Circular	On-Off	Standard Round	Screw Terminal	14 V	DPST

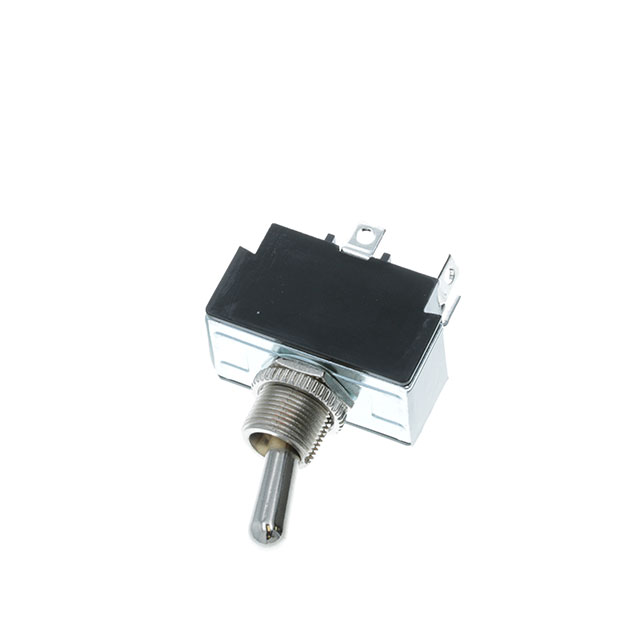

Switch Components TB1-2A-DC-5	6000 Cycles	125 V	16.5 mm	15/32-32	Non-Illuminated	20 A 21 A	Panel Mount	12 mm	Circular	On-Off	Standard Round	Solder Lug	14 V	DPST
Switch Components TB1-2A-AC-1		250 V	16.5 mm	15/32-32	Non-Illuminated	10 A	Panel Mount	12.2 mm	Circular	On-Off	Standard Round	Quick Connect		DPST	0.25 in
Switch Components TB1-2A-AC-5		250 V	16.5 mm	15/32-32	Non-Illuminated	10 A	Panel Mount	12.2 mm	Circular	On-Off	Standard Round	Solder Lug		DPST
Switch Components TB1-2A-AC-6		250 V	16.5 mm	15/32-32	Non-Illuminated	10 A	Panel Mount	12.2 mm	Circular	On-Off	Standard Round	Screw Terminal		DPST

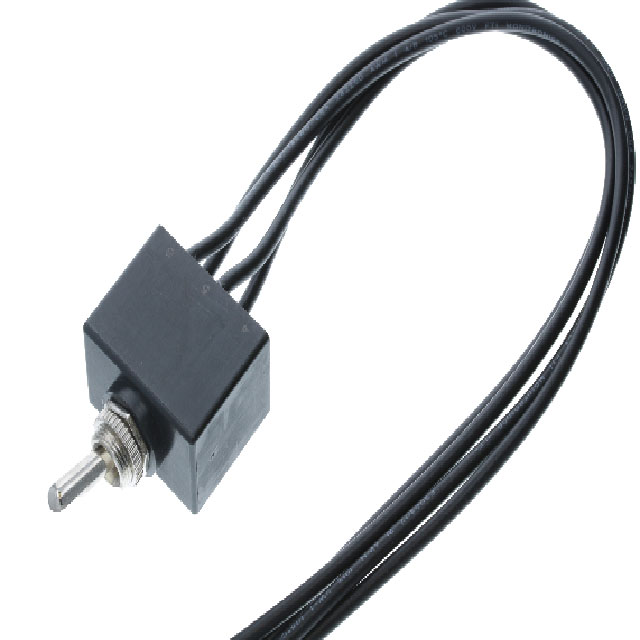

Switch Components TB1-2A-DC-WW	6000 Cycles		15.3 mm	15/32-32	Non-Illuminated	25 A	Panel Mount	12 mm	Circular	On-Off	Standard Round	Wire Leads	12 V	DPST		Brass Nickel Plated	-40 °C	85 °C	Dust Tight Waterproof	IP67
