1744426 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

HEADER HOUSING ASSY, EP 2.5 RA, 4 POS.

Part	Style	Contact Type	Applications	Contact Length - Mating	Contact Length - Mating	Number of Rows	Current Rating (Amps)	Contact Material	Contact Shape	Insulation Material	Shrouding	Fastening Type	Voltage Rating	Mounting Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Termination	Insulation Height	Insulation Height	Number of Positions	Contact Length - Post	Contact Length - Post [x]	Insulation Color	Connector Type	Contact Finish - Post	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Raychem Cable Protection 1744426-4	Board to Cable/Wire	Male Pin	General Purpose Industrial Lighting	0.141 in	3.6 mm	1	4.2 A	Copper Alloy	Circular	Nylon Polyamide (PA)	Shrouded - 4 Wall	Friction Lock	250 VAC	Through Hole Right Angle	UL94 V-0	2.5 mm	0.098 in	Kinked Pin Solder	0.299 in	7.6 mm	4	3.2 mm	0.126 in	White	Header	Tin	All	105 ░C	-55 °C

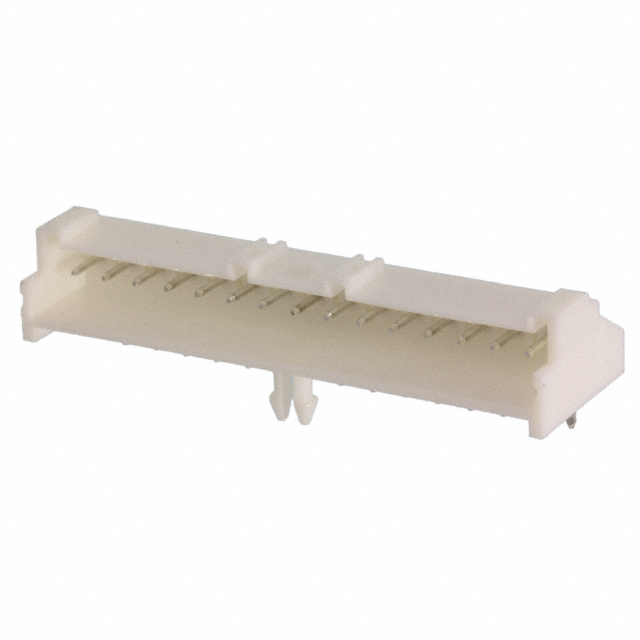

TE Connectivity Raychem Cable Protection 1-1744426-5	Board to Cable/Wire	Male Pin	General Purpose Industrial Lighting	0.141 in	3.6 mm	1	4.2 A	Copper Alloy	Circular	Nylon Polyamide (PA)	Shrouded - 4 Wall	Friction Lock	250 VAC	Through Hole Right Angle	UL94 V-0	2.5 mm	0.098 in	Kinked Pin Solder	0.299 in	7.6 mm	15	3.2 mm	0.126 in	White	Header	Tin	All	105 ░C	-55 °C

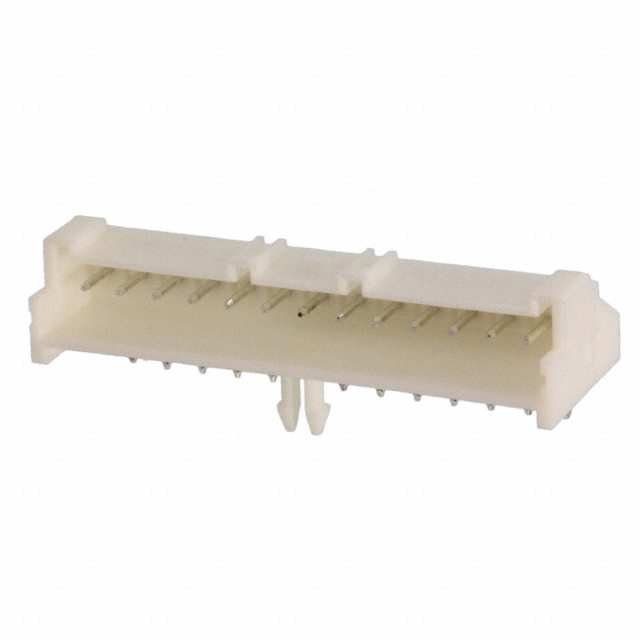

TE Connectivity Raychem Cable Protection 1-1744426-3	Board to Cable/Wire	Male Pin	General Purpose Industrial Lighting	0.141 in	3.6 mm	1	4.2 A	Copper Alloy	Circular	Nylon Polyamide (PA)	Shrouded - 4 Wall	Friction Lock	250 VAC	Through Hole Right Angle	UL94 V-0	2.5 mm	0.098 in	Kinked Pin Solder	0.299 in	7.6 mm	13	3.2 mm	0.126 in	White	Header	Tin	All	105 ░C	-55 °C
