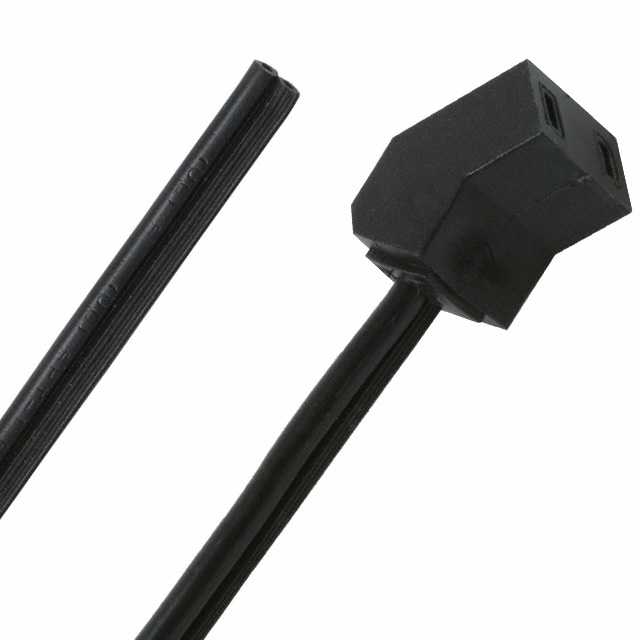

07145 Series

Manufacturer: Qualtek

Catalog

POWER CORD FAN 45DEG ANGLE 50"

Part	Wire Gauge	Approval Agency Marking	Operating Temperature	Length [x]	Length [x]	Style	1st Connector	Cord Type	Fits Terminal Size [x]	Fits Terminal Size [y]	2nd Connector	Number of Conductors	Voltage Rating	Current Rating (Amps)	Length	Length
Qualtek 07145-50	18 AWG	cUL UL	105 C	50 in	1.27 m	Female Receptacle to Cable	Fan Terminal Receptacle 45°	SPT-1	4.5	2.5	Open Wires	2	125 VDC	10 A

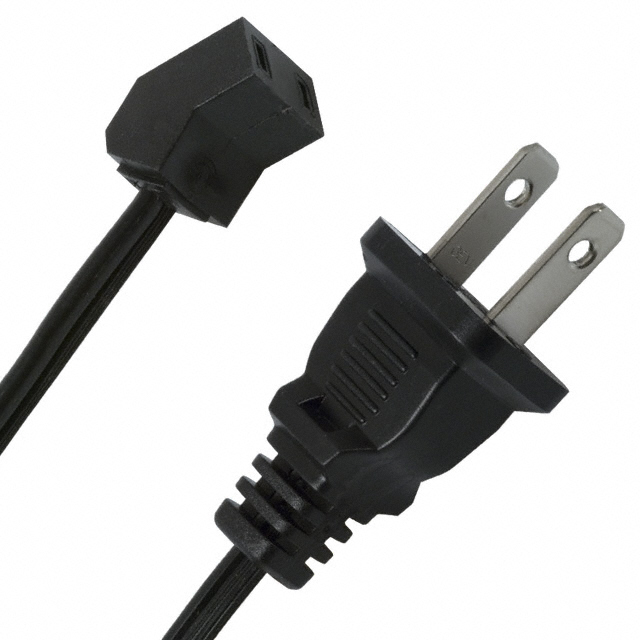

Qualtek 07145-SP072	18 AWG	cUL UL	105 C			Female Receptacle to Male Plug	Fan Terminal Receptacle 45°	SPT-1	4.5	2.5	NEMA 1-15 Plug	2	125 VDC	10 A	1.83 m	72 in
Qualtek 07145-SP024	18 AWG	cUL UL	105 C			Female Receptacle to Male Plug	Fan Terminal Receptacle 45°	SPT-1	4.5	2.5	NEMA 1-15 Plug	2	125 VDC	10 A	609.6 mm	24 in
Qualtek 07145-SP036	18 AWG	cUL UL	105 C	36 in	914.4 mm	Female Receptacle to Male Plug	Fan Terminal Receptacle 45°	SPT-1	4.5	2.5	NEMA 1-15 Plug	2	125 VDC	10 A
Qualtek 07145-80	18 AWG	cUL UL	105 C			Female Receptacle to Cable	Fan Terminal Receptacle 45°	SPT-1	4.5	2.5	Open Wires	2	125 VDC	10 A	2.03 m	80 in
Qualtek 07145-40	18 AWG	cUL UL	105 C			Female Receptacle to Cable	Fan Terminal Receptacle 45°	SPT-1	4.5	2.5	Open Wires	2	125 VDC	10 A	1.02 m	40 in
Qualtek 07145-60	18 AWG	cUL UL	105 C			Female Receptacle to Cable	Fan Terminal Receptacle 45°	SPT-1	4.5	2.5	Open Wires	2	125 VDC	10 A	1.52 m	60 in
Qualtek 07145-12	18 AWG	cUL UL	105 C	12 in	304.8 mm	Female Receptacle to Cable	Fan Terminal Receptacle 45°	SPT-1	4.5	2.5	Open Wires	2	125 VDC	10 A
Qualtek 07145-36	18 AWG	cUL UL	105 C	36 in	914.4 mm	Female Receptacle to Cable	Fan Terminal Receptacle 45°	SPT-1	4.5	2.5	Open Wires	2	125 VDC	10 A
