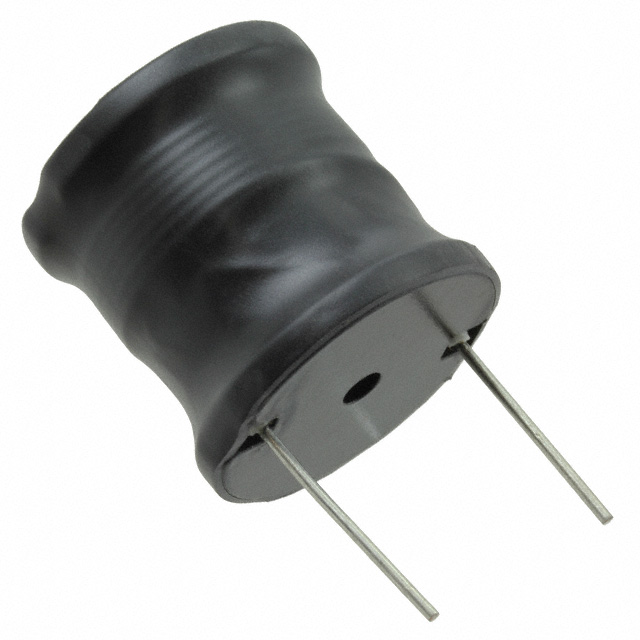

5600 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 50UH 6.6A 34 MOHM TH
| Part | Shielding | Type | Size / Dimension [diameter] | Size / Dimension | Inductance | Tolerance | Material - Core | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Current Rating (Amps) | Mounting Type | Height - Seated (Max) | Height - Seated (Max) [Max] | DC Resistance (DCR) | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Unshielded | Drum Core Wirewound | 0.83 in | 21.08 mm | 50 µH | 10 % | Ferrite | 34 mOhm | 1 kHz | -55 C | 105 ░C | Radial Vertical Cylinder | 6.6 A | Through Hole | 23.11 mm | 0.91 in | ||||
Bourns Inc. | Unshielded | Drum Core Wirewound | 0.83 in | 21.08 mm | 500 µH | 10 % | Ferrite | 1 kHz | -55 C | 105 ░C | Radial Vertical Cylinder | 2 A | Through Hole | 23.11 mm | 0.91 in | 378 mOhm | ||||
Bourns Inc. | Unshielded | Drum Core Wirewound | 1.5 " | 1 mH | 10 % | Ferrite | 195 mOhm | 1 kHz | -55 C | 105 ░C | Radial Vertical Cylinder | 3.5 A | Through Hole | 28.19 mm | 38.1 mm | 1.11 in | ||||
Bourns Inc. | Unshielded | Drum Core Wirewound | 0.83 in | 21.08 mm | 5 µH | 10 % | Ferrite | 7 mOhm | 1 kHz | -55 C | 105 ░C | Radial Vertical Cylinder | 15 A | Through Hole | 23.11 mm | 0.91 in | ||||
Bourns Inc. | Unshielded | Drum Core Wirewound | 1.5 " | 2.5 mH | 10 % | Ferrite | 464 mOhm | 1 kHz | -55 C | 105 ░C | Radial Vertical Cylinder | 2.8 A | Through Hole | 1.5 " | 38.1 mm | 38.1 mm | ||||
Bourns Inc. | Unshielded | Drum Core Wirewound | 1.5 " | 5 mH | 10 % | Ferrite | 1.08 Ohm | 1 kHz | -55 C | 105 ░C | Radial Vertical Cylinder | 1.5 A | Through Hole | 28.19 mm | 38.1 mm | 1.11 in | ||||
Bourns Inc. | Unshielded | Drum Core Wirewound | 0.83 in | 21.08 mm | 250 µH | 10 % | Ferrite | 173 mOhm | 1 kHz | -55 C | 105 ░C | Radial Vertical Cylinder | 2.9 A | Through Hole | 23.11 mm | 0.91 in | ||||
Bourns Inc. | Unshielded | Drum Core Wirewound | 1.22 in | 50 µH | 10 % | Ferrite | 17 mOhm | 1 kHz | -55 C | 105 ░C | Radial Vertical Cylinder | 10 A | Through Hole | 28.19 mm | 30.99 mm | 1.11 in | ||||
Bourns Inc. | Unshielded | Drum Core Wirewound | 1.22 in | 500 µH | 10 % | Ferrite | 1 kHz | -55 C | 105 ░C | Radial Vertical Cylinder | 3.7 A | Through Hole | 28.19 mm | 129 mOhm | 30.99 mm | 1.11 in | ||||
Bourns Inc. | Unshielded | Drum Core Wirewound | 0.83 in | 21.08 mm | 2.5 mH | 10 % | Ferrite | 1 kHz | -55 C | 105 ░C | Radial Vertical Cylinder | 0.85 A | Through Hole | 23.11 mm | 0.91 in | 2.04 Ohm |
