TD1-1A Series

Catalog

SWITCH TOGGLE SPST 50A 12V

Part	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Actuator Type	Bushing Thread	Mounting Type	Circuit	Actuator Length [x]	Voltage Rating - DC	Current Rating (Amps)	Switch Function	Termination Style	Panel Cutout Dimensions [diameter]

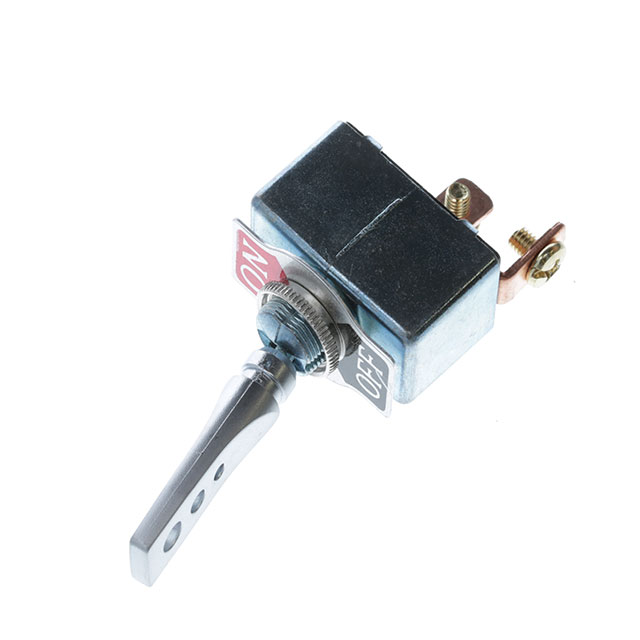

Switch Components TD1-1A-DC-3-M	6000 Cycles	85 °C	-20 ░C	Non-Illuminated	Flatted	M12 x 0.75	Panel Mount	SPST	38.4 mm	12 V	50 A	On-Off	Screw Terminal	12.2 mm Dia

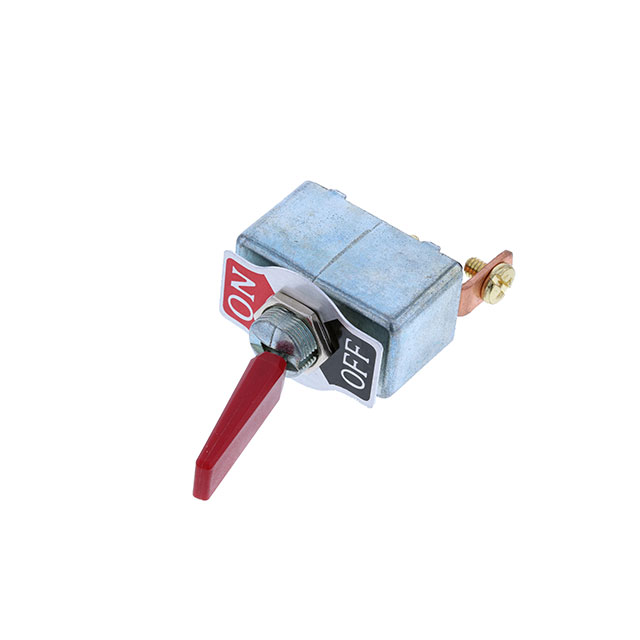

Switch Components TD1-1A-DC-3-R	6000 Cycles	85 °C	-20 ░C	Non-Illuminated	Flatted	M12 x 0.75	Panel Mount	SPST	28.8 mm	12 V	50 A	On-Off	Screw Terminal	12.2 mm Dia

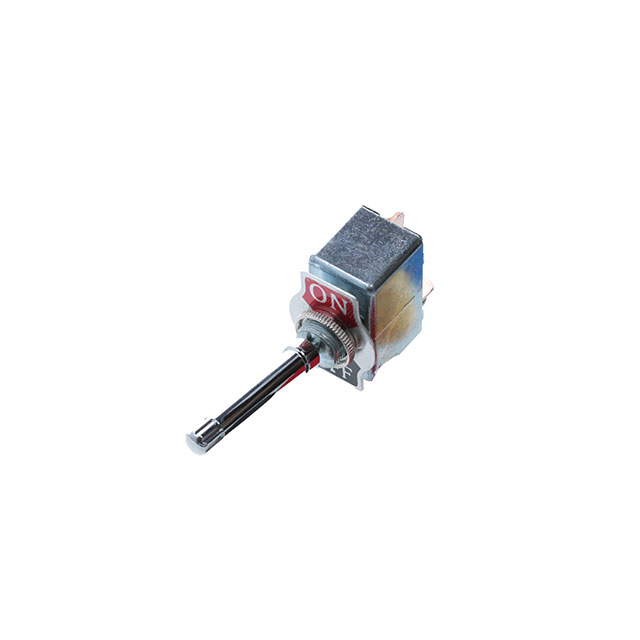

Switch Components TD1-1A-DC-3-H	6000 Cycles	85 °C	-20 ░C	Non-Illuminated	Standard Round	M12 x 0.75	Panel Mount	SPST	40.9 mm	12 V	50 A	On-Off	Screw Terminal	12.2 mm Dia

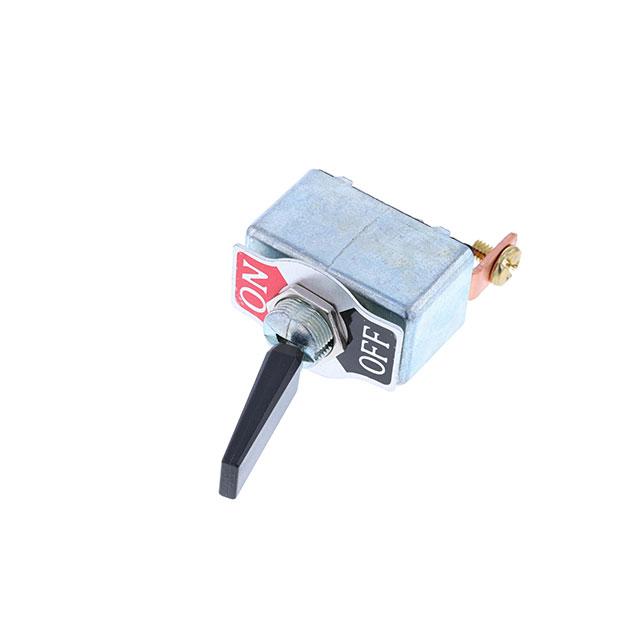

Switch Components TD1-1A-DC-3-B	6000 Cycles	85 °C	-20 ░C	Non-Illuminated	Flatted	M12 x 0.75	Panel Mount	SPST	28.8 mm	12 V	50 A	On-Off	Screw Terminal	12.2 mm Dia
