XZDGK53 Series
Manufacturer: SunLED
Beta
⌘K

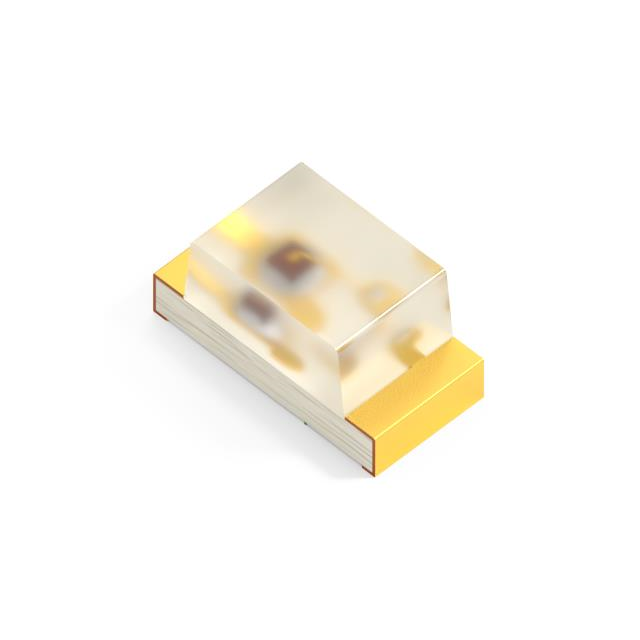

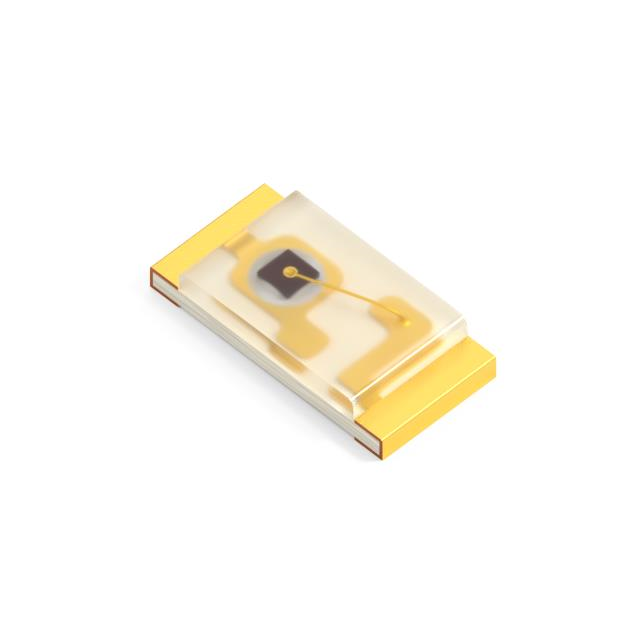

LED GREEN CLEAR CHIP SMD
| Part | Color | Viewing Angle | Supplier Device Package | Lens Transparency | Configuration | Voltage - Forward (Vf) (Typ) | Wavelength - Dominant | Millicandela Rating | Lens Size [y] | Lens Size [x] | Wavelength - Peak | Lens Style | Mounting Type | Package / Case | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Lens Color | Current - Test | Height (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | Green | 120 ° | Chip LED | Clear | Standard | 3.3 V | 525 nm | 347 mcd | 0.8 mm | 1.1 mm | 515 nm | Rectangle with Flat Top | Surface Mount | 1608 Metric | 0603 | 1.6 mm | 0.8 mm | Colorless | 20 mA | |
 SunLED | Green | 120 ° | 2-SMD | Clear | Standard | 3.3 V | 525 nm | 347 mcd | 0.8 mm | 1.2 mm | 515 nm | Rectangle with Flat Top | Surface Mount | 1608 Metric | 0603 | 1.6 mm | 0.8 mm | Colorless | 20 mA | 0.28 mm |
