JB15HBPF Series

Catalog

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Part	Mechanical Life	Actuator Material	Switch Travel	Operating Force	Illumination Type, Color	Illumination	Features	Actuator Type	Termination Style	Actuator Height off PCB, Vertical [z]	Mounting Type	Ingress Protection	Actuator Orientation	Contact Rating @ Voltage	Outline [x]	Outline [y]	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Illumination Voltage (Nominal)

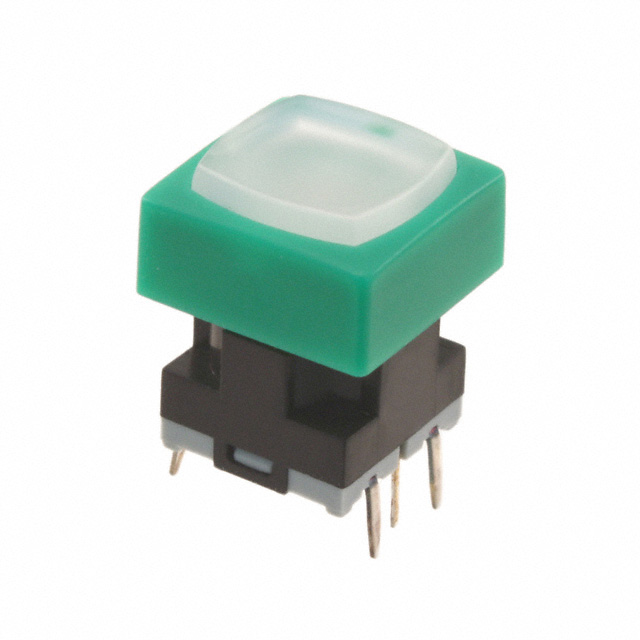

NKK Switches JB15HBPF-BF	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	265 gf	Green LED	Illuminated	Process Sealed	Square Button	PC Pin	14.7 mm	Through Hole	IP67 - Dust Tight Waterproof	Top Actuated	0.125 A 24 VDC	10 mm	10 mm	Off-Mom	-25 °C	70 °C	SPST-NO	2.1 VDC

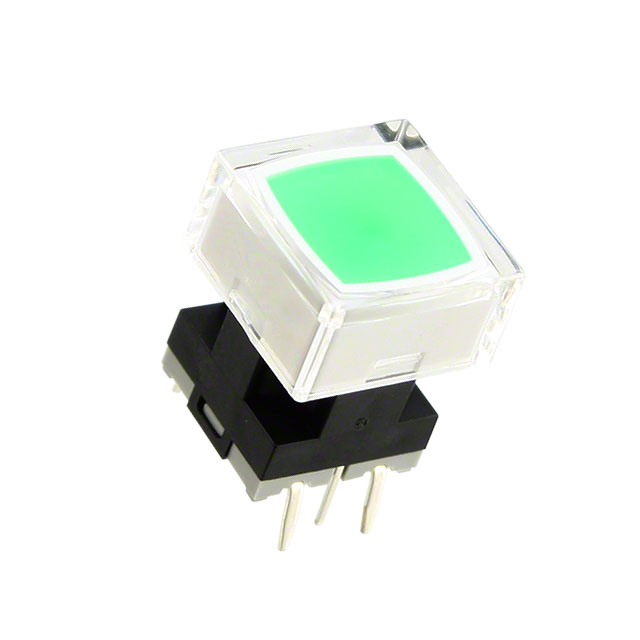

NKK Switches JB15HBPF-JF	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	265 gf	Green LED	Illuminated	Process Sealed	Square Button	PC Pin	14.7 mm	Through Hole	IP67 - Dust Tight Waterproof	Top Actuated	0.125 A 24 VDC	10 mm	10 mm	Off-Mom	-25 °C	70 °C	SPST-NO	2.1 VDC

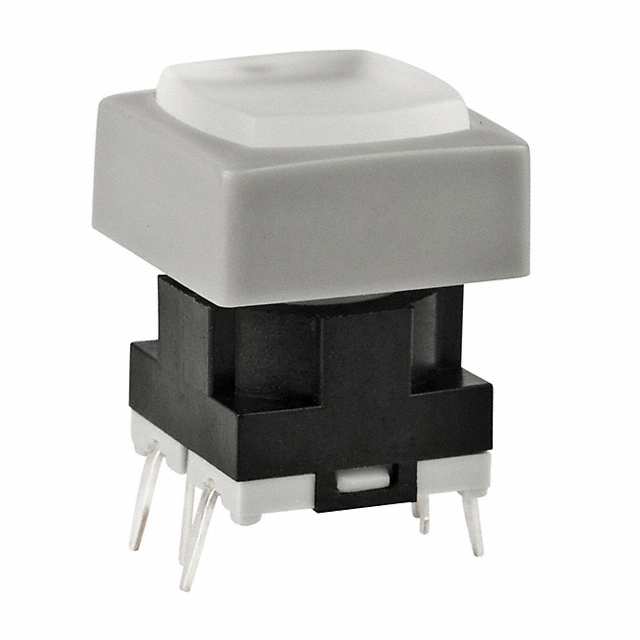

NKK Switches JB15HBPF-BH	1000000 Cycles	Polybutylene Terephthalate (PBT) Glass Filled	0.3 mm	265 gf	Green LED	Illuminated	Process Sealed	Square Button	PC Pin	14.7 mm	Through Hole	IP67 - Dust Tight Waterproof	Top Actuated	0.125 A 24 VDC	10 mm	10 mm	Off-Mom	-25 °C	70 °C	SPST-NO	2.1 VDC
