9WF1224 Series

Catalog

DC FANS DC AXIAL FAN, 120X120X38MM, 24VDC, OIL PROOF

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Air Flow	Air Flow	Lifetime @ Temp.	Static Pressure	Static Pressure	Ingress Protection	RPM	Fan Type	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Bearing Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Voltage - Rated	Noise	Weight	Weight	Power (Watts)	Features

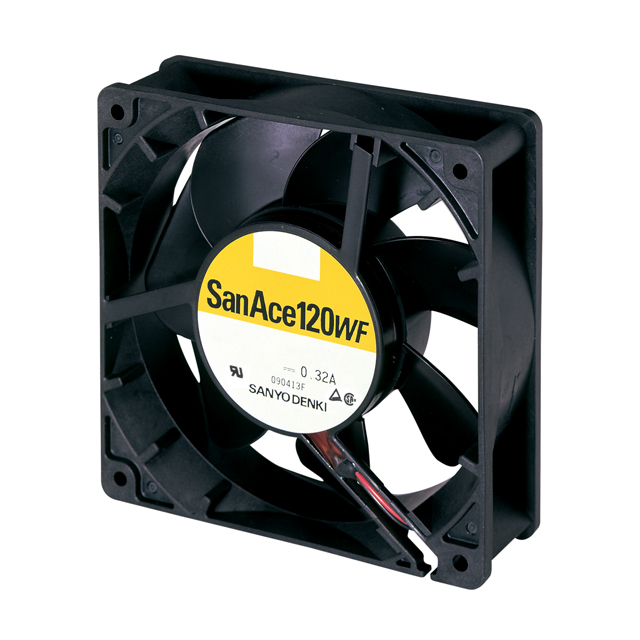

Sanyo Denki America Inc. 9WF1224H102	320 mA	Plastic	Plastic	3.3 m³/min	118 CFM	40000 Hrs	99.6 Pa	0.4 in H2O	Oil Resistant	3100 RPM	Tubeaxial	38 mm	-20 ░C	70 °C	2 Wire Leads	Ball	Square	119 mm	119 mm	CSA TUV UL	24 VDC	46 dB(A)	355.62 g	0.784 lb	7.68 W
Sanyo Denki America Inc. 9WF1224H1D01	320 mA	Plastic	Plastic	3.3 m³/min	118 CFM	40000 Hrs	99.6 Pa	0.4 in H2O		3100 RPM	Tubeaxial	38 mm	-20 ░C	70 °C	3 Wire Leads	Ball	Square	119 mm	119 mm	CSA TUV UL	24 VDC	46 dB(A)	355.62 g	0.784 lb	7.68 W	Locked Rotor Sensor
Sanyo Denki America Inc. 9WF1224H101	320 mA	Plastic	Plastic	3.3 m³/min	118 CFM	40000 Hrs	99.6 Pa	0.4 in H2O		3100 RPM	Tubeaxial	38 mm	-20 ░C	70 °C	3 Wire Leads	Ball	Square	119 mm	119 mm	CSA TUV UL	24 VDC	46 dB(A)	355.62 g	0.784 lb	7.68 W	Speed Sensor (Tach)
