MPQ9840 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K

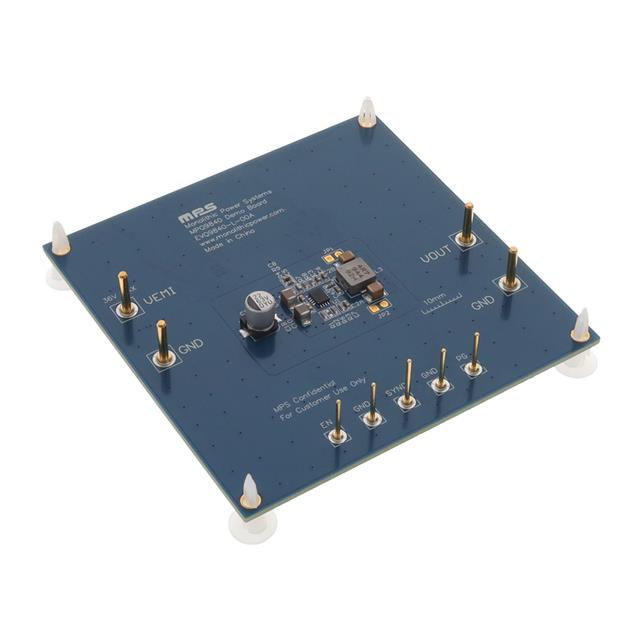

EVALUATION BOARD, SYNC BUCK CONVERTER ROHS COMPLIANT: YES
| Part | Board Type | Supplied Contents | Outputs and Type | Outputs and Type | Current - Output | Utilized IC / Part | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Regulator Topology | Contents | Frequency - Switching | Voltage - Output | Grade | Frequency - Switching [Max] | Frequency - Switching [Min] | Function | Voltage - Input (Max) [Max] | Output Configuration | Number of Outputs | Topology | Voltage - Output (Max) [Max] | Qualification | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Supplier Device Package | Voltage - Output (Min/Fixed) | Package / Case | Synchronous Rectifier |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | Fully Populated | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | 3.5 A | MP9840 MPQ9840 | DC/DC Step Down | 36 V | 5 V | Buck | Board(s) | 450 kHz | 5 V | ||||||||||||||||||
 Monolithic Power Systems Inc. | 3.5 A | Automotive | 2.5 MHz | 350 kHz | Step-Down | 36 V | Positive | 1 | Buck | 36 V | AEC-Q100 | Adjustable | -40 C | 125 °C | Surface Mount | 16-QFN (3x4) | 0.8 V | 16-PowerVQFN |
