179839 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

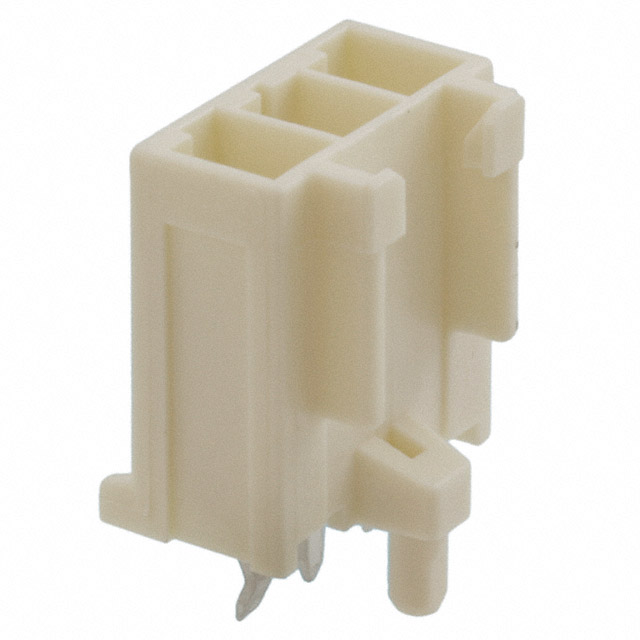

CONN HEADER VERT 3POS 3.96MM
| Part | Insulation Height | Insulation Height | Contact Finish - Post | Contact Material | Current Rating (Amps) | Insulation Material | Contact Type | Contact Shape | Material Flammability Rating | Fastening Type | Number of Positions Loaded | Features | Mounting Type | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Style | Number of Rows | Applications | Connector Type | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 0.575 in | 14.6 mm | Tin | Copper Alloy | Varies by Wire Gauge | Polyamide (PA66) Nylon 6/6 | Tab | Rectangular | UL94 V-0 | Locking Ramp | All | Board Guide | Through Hole | Blue | 0.156 in | 3.96 mm | 0.15 in | 3.81 mm | Board to Cable/Wire | 1 | General Purpose | Header | Shrouded - 4 Wall | -30 ░C | 105 ░C | Kinked Pin Solder |
 TE Connectivity Raychem Cable Protection | 0.575 in | 14.6 mm | Tin | Copper Alloy | Varies by Wire Gauge | Polyamide (PA66) Nylon 6/6 | Tab | Rectangular | UL94 V-0 | Locking Ramp | All | Board Guide | Through Hole | Natural | 0.156 in | 3.96 mm | 0.15 in | 3.81 mm | Board to Cable/Wire | 1 | General Purpose | Header | Shrouded - 4 Wall | -30 ░C | 105 ░C | Kinked Pin Solder |
