746-094 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 94POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Type	Number of Positions/Bay/Row	Read Out	Termination	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Pitch	Pitch	Gender	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Color
EDAC Inc. 746-094-540-201	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Cantilever	47	Dual	Press-Fit Wire Wrap	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	94	3.18 mm	0.125 in	Female	2	30 Áin	0.76 Ám	Black
EDAC Inc. 746-094-527-606	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Cantilever	47	Dual	Press-Fit	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	94	3.18 mm	0.125 in	Female	2	30 Áin	0.76 Ám	Black
EDAC Inc. 746-094-553-201	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Cantilever	47	Dual	Press-Fit Wire Wrap	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	94	3.18 mm	0.125 in	Female	2	30 Áin	0.76 Ám	Black
EDAC Inc. 746-094-545-601	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Cantilever	47	Dual	Press-Fit Wire Wrap	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	94	3.18 mm	0.125 in	Female	2	30 Áin	0.76 Ám	Black

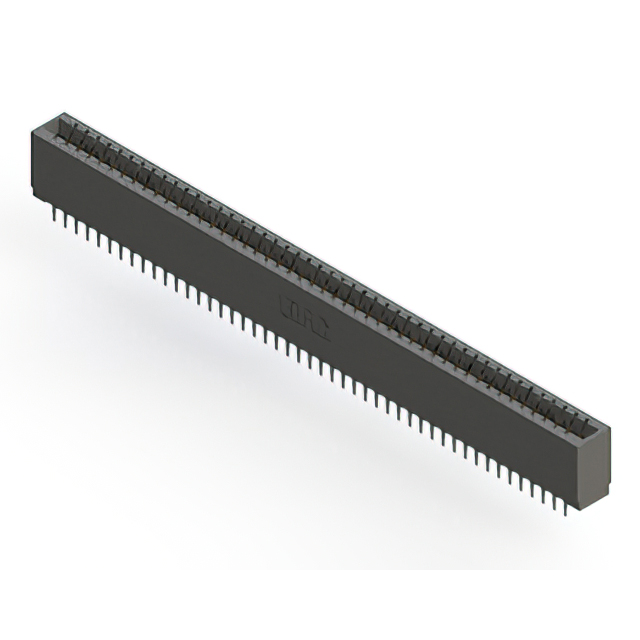

EDAC Inc. 746-094-525-201	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Cantilever	47	Dual	Press-Fit	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	94	3.18 mm	0.125 in	Female	2	30 Áin	0.76 Ám	Black
EDAC Inc. 746-094-527-206	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Cantilever	47	Dual	Press-Fit	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	94	3.18 mm	0.125 in	Female	2	30 Áin	0.76 Ám	Black
EDAC Inc. 746-094-527-601	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Cantilever	47	Dual	Press-Fit	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	94	3.18 mm	0.125 in	Female	2	30 Áin	0.76 Ám	Black
EDAC Inc. 746-094-553-606	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Cantilever	47	Dual	Press-Fit Wire Wrap	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	94	3.18 mm	0.125 in	Female	2	30 Áin	0.76 Ám	Black
EDAC Inc. 746-094-560-201	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Cantilever Make Before Break	47	Dual	Press-Fit	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	94	3.18 mm	0.125 in	Female	2	30 Áin	0.76 Ám	Black

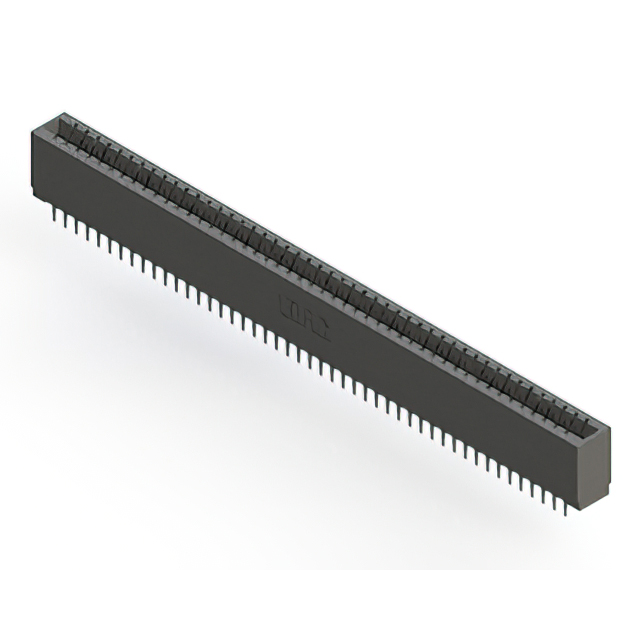

EDAC Inc. 746-094-520-601	Polyester Thermoplastic	2	Through Hole	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Cantilever	47	Dual	Press-Fit	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	94	3.18 mm	0.125 in	Female	2	30 Áin	0.76 Ám	Black
