19K201 Series
Manufacturer: Rosenberger
Beta
⌘K

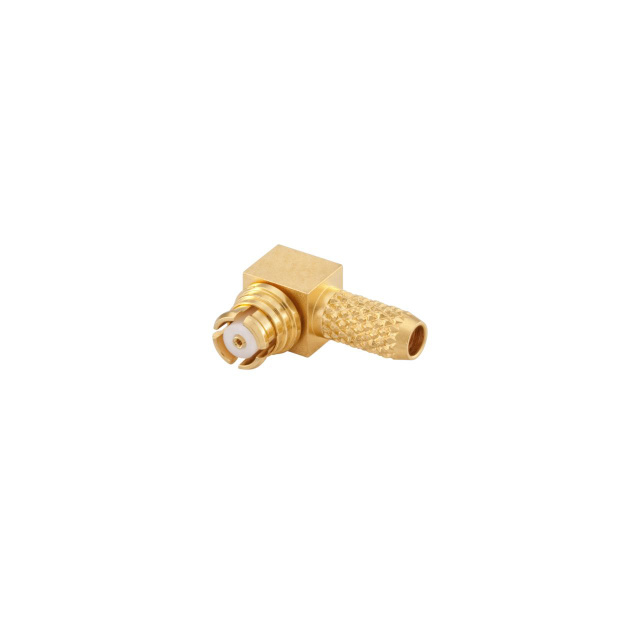

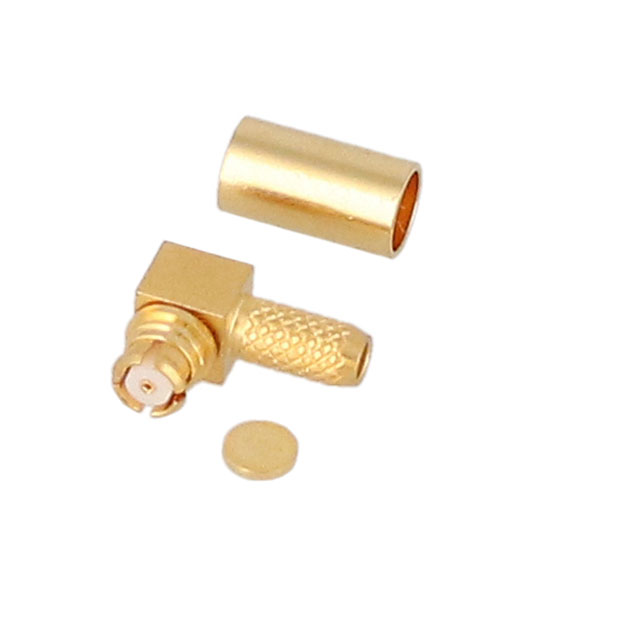

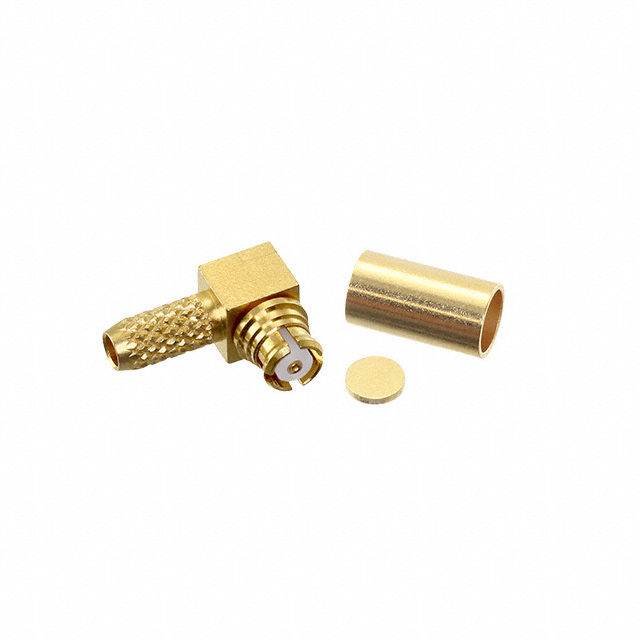

CONN SMP JACK R/A 50OHM SOLDER
| Part | Dielectric Material | Body Finish | Includes | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Voltage Rating | Number of Ports | Cable Group | Connector Type | Center Contact Material | Fastening Type | Impedance | Shield Termination | Housing Color | Frequency - Max [Max] | Contact Termination | Mounting Type | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector 1 End Cap | Gold | 155 C | -65 ░C | Brass | 335 V | 1 | 188A 316 RG-174A | Female Socket Jack | Beryllium Copper | Snap-On | 50 Ohms | Crimp | Gold | 26.5 GHz | Solder | Free Hanging (In-Line) Right Angle | |
 Rosenberger | Polytetrafluoroethylene (PTFE) | Gold | Gold | 155 C | -65 ░C | Bronze | 335 V | 1 | 188A 316 RG-174A | Female Socket Jack | Beryllium Copper | Snap-On | 50 Ohms | Crimp | Gold | 26.5 GHz | Solder | Free Hanging (In-Line) Right Angle | 1000 | |
 Rosenberger | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector 1 End Cap | Gold | 155 C | -65 ░C | Brass | 335 V | 1 | RG-316 | Female Socket Jack | Beryllium Copper | Snap-On | 50 Ohms | Crimp | Gold | 26.5 GHz | Solder | Free Hanging (In-Line) Right Angle |
