PKM721 Series

Catalog

DC DC CONVERTER 15V 150W

Part	Voltage - Input (Max) [Max]	Standard Number	Features	Control Features	Supplier Device Package	Mounting Type	Applications	Voltage - Input (Min) [Min]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Number of Outputs	Type	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
Flex Power Modules PKM7215APIP	160 V	50155 62368-1	Adjustable Output Remote On/Off Remote Sense	Active High Enable	Quarter Brick	Through Hole	ITE (Commercial) Railway	66 V	Quarter Brick	-40 °C	115 °C	150 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	90 %	1	Isolated Module	3000 V	10 A	15 V
Flex Power Modules PKM7215APIPLHS	160 V	50155 62368-1	Adjustable Output Heat Sink Remote On/Off Remote Sense	Active High Enable	Quarter Brick	Through Hole	ITE (Commercial) Railway	66 V	Quarter Brick	-40 °C	115 °C	150 W	2.28 in					36.8 mm	90 %	1	Isolated Module	3000 V	10 A	15 V	1.45 in	1.29 in	32.7 mm	57.9 mm

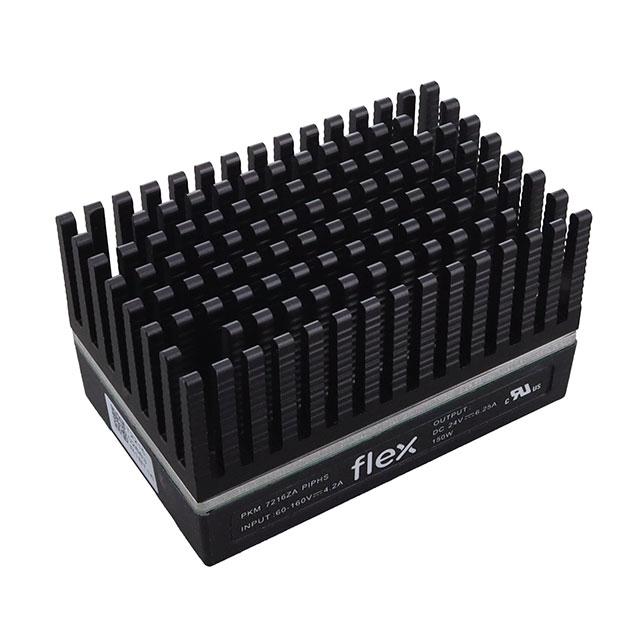

Flex Power Modules PKM7216ZAPIPHS	160 V	50155 62368-1	Adjustable Output Heat Sink Remote On/Off Remote Sense	Active High Enable	Quarter Brick	Through Hole	ITE (Commercial) Railway	66 V	Quarter Brick	-40 °C	115 °C	150 W	2.28 in					36.8 mm	88 %	1	Isolated Module	3000 V	6.25 A	24 V	1.45 in	1.29 in	32.7 mm	57.9 mm
Flex Power Modules PKM7213APIPLHS	160 V	50155 62368-1	Adjustable Output Heat Sink Remote On/Off Remote Sense	Active High Enable	Quarter Brick	Through Hole	ITE (Commercial) Railway	66 V	Quarter Brick	-40 °C	115 °C	150 W	2.28 in					36.8 mm	89 %	1	Isolated Module	3000 V	12.5 A	12 V	1.45 in	1.29 in	32.7 mm	57.9 mm
Flex Power Modules PKM7213APIP	160 V	50155 62368-1	Adjustable Output Remote On/Off Remote Sense	Active High Enable	Quarter Brick	Through Hole	ITE (Commercial) Railway	66 V	Quarter Brick	-40 °C	115 °C	150 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	89 %	1	Isolated Module	3000 V	12.5 A	12 V
Flex Power Modules PKM7216ZAPIP	160 V	50155 62368-1	Adjustable Output Remote On/Off Remote Sense	Active High Enable	Quarter Brick	Through Hole	ITE (Commercial) Railway	66 V	Quarter Brick	-40 °C	115 °C	150 W	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	88 %	1	Isolated Module	3000 V	6.25 A	24 V
Flex Power Modules PKM7215APIPHS	160 V	50155 62368-1	Adjustable Output Heat Sink Remote On/Off Remote Sense	Active High Enable	Quarter Brick	Through Hole	ITE (Commercial) Railway	66 V	Quarter Brick	-40 °C	115 °C	150 W	2.28 in					36.8 mm	90 %	1	Isolated Module	3000 V	10 A	15 V	1.45 in	1.29 in	32.7 mm	57.9 mm
Flex Power Modules PKM7216ZAPIPLHS	160 V	50155 62368-1	Adjustable Output Heat Sink Remote On/Off Remote Sense	Active High Enable	Quarter Brick	Through Hole	ITE (Commercial) Railway	66 V	Quarter Brick	-40 °C	115 °C	150 W	2.28 in					36.8 mm	88 %	1	Isolated Module	3000 V	6.25 A	24 V	1.45 in	1.29 in	32.7 mm	57.9 mm
Flex Power Modules PKM7213APIPHS	160 V	50155 62368-1	Adjustable Output Heat Sink Remote On/Off Remote Sense	Active High Enable	Quarter Brick	Through Hole	ITE (Commercial) Railway	66 V	Quarter Brick	-40 °C	115 °C	150 W	2.28 in					36.8 mm	89 %	1	Isolated Module	3000 V	12.5 A	12 V	1.45 in	1.29 in	32.7 mm	57.9 mm
