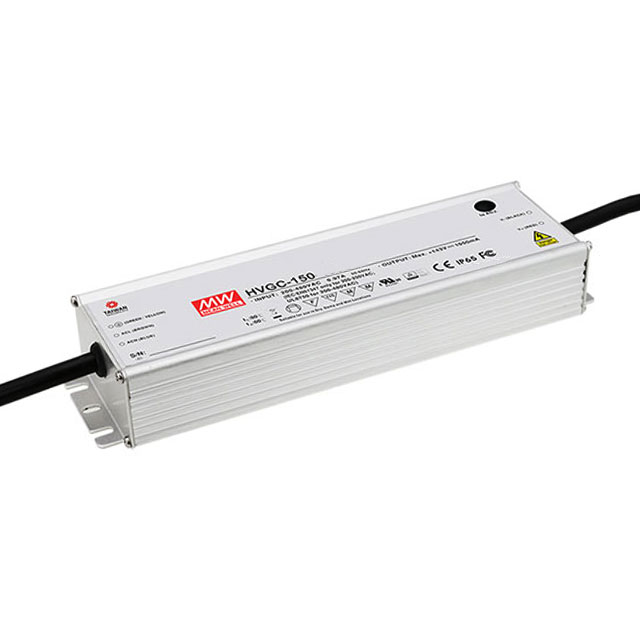

HVGC-150 Series

Catalog

LED DRVR CC AC/DC 12-107V 1.4A

Part	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Ratings	Termination Style	Voltage - Isolation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Topology	Approval Agency	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Dimming
MEAN WELL USA Inc. HVGC-150-1400A	Chassis Mount	180 VAC	528 VAC	Constant Current	1	107 V	12 V	IP65	Wire Leads	3750 VDC	OTP OVP SCP	80 °C	-40 C	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	AC DC Converter	CB CE cURus TUV	1.4 A	90 %	150 W
MEAN WELL USA Inc. HVGC-150-700B	Chassis Mount	180 VAC	528 VAC	Constant Current	1	215 V	21 V	IP67	Wire Leads	3750 VDC	OTP OVP SCP	80 °C	-40 C	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	AC DC Converter	CB CE cURus TUV	700 mA	91 %	151 W	Analog PWM
MEAN WELL USA Inc. HVGC-150-1400B	Chassis Mount	180 VAC	528 VAC	Constant Current	1	107 V	12 V	IP67	Wire Leads	3750 VDC	OTP OVP SCP	80 °C	-40 C	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	AC DC Converter	CB CE cURus TUV	1.4 A	90 %	150 W	Analog PWM
MEAN WELL USA Inc. HVGC-150-700A	Chassis Mount	180 VAC	528 VAC	Constant Current	1	215 V	21 V	IP65	Wire Leads	3750 VDC	OTP OVP SCP	80 °C	-40 C	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	AC DC Converter	CB CE cURus TUV	700 mA	91 %	151 W
MEAN WELL USA Inc. HVGC-150-350A	Chassis Mount	180 VAC	528 VAC	Constant Current	1	428 V	42 V	IP65	Wire Leads	3750 VDC	OTP OVP SCP	80 °C	-40 C	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	AC DC Converter	CB CE cURus TUV	350 mA	91 %	150 W
MEAN WELL USA Inc. HVGC-150-1050A	Chassis Mount	180 VAC	528 VAC	Constant Current	1	143 V	15 V	IP65	Wire Leads	3750 VDC	OTP OVP SCP	80 °C	-40 C	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	AC DC Converter	CB CE cURus TUV	1.05 A	90 %	150 W
MEAN WELL USA Inc. HVGC-150-1050AB	Chassis Mount	180 VAC	528 VAC	Constant Current	1	143 V	15 V	IP65	Wire Leads	3750 VDC	OTP OVP SCP	80 °C	-40 C	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	AC DC Converter	CB CE cURus EAC FCC TUV	1.05 A	90 %	150 W	Analog PWM
MEAN WELL USA Inc. HVGC-150-500B	Chassis Mount	180 VAC	528 VAC	Constant Current	1	300 V	30 V	IP67	Wire Leads	3750 VDC	OTP OVP SCP	80 °C	-40 C	68 mm	1.53 in	221 mm	8.7 "	2.68 in	38.8 mm	AC DC Converter	CB CE cURus TUV	500 mA	91 %	150 W	Analog PWM
