LY20-40P Series

Catalog

CONN HEADER R/A 40POS 2MM

Part	Style	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Termination	Contact Shape	Contact Type	Voltage Rating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Shrouding	Contact Finish - Mating	Contact Material	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Material	Connector Type	Fastening Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length
JAE Electronics LY20-40P-DLT1-P1E-BR	Board to Cable/Wire	2	3.9 µin	0.099 µm	2 mm	0.079 in	Brown	Solder	Square	Male Pin	250 V	Right Angle Through Hole	0.106 in	2.7 mm	85 °C	-40 C	UL94 V-0	3 A	40	Shrouded - 4 Wall	Gold	Copper Alloy	All	0.079 "	2 mm	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Detent Lock	Tin Tin-Alloy	0.118 in	3 mm	5.3 mm	0.209 in

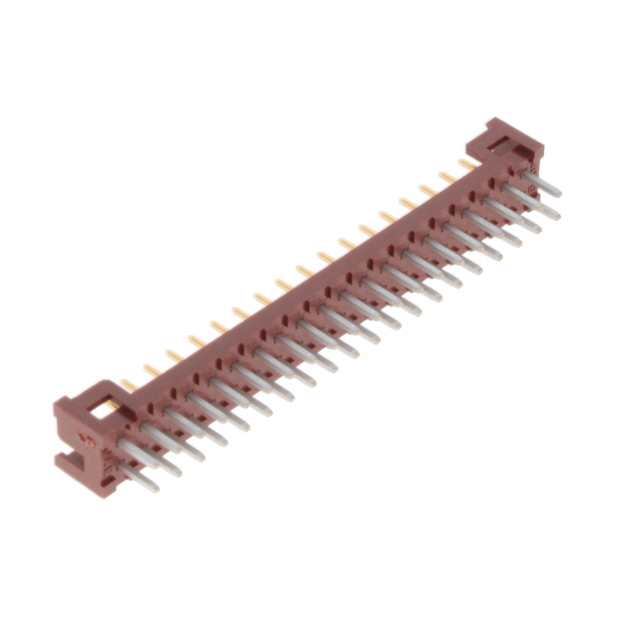

JAE Electronics LY20-40P-DT1-P1E-BR	Board to Cable/Wire	2	3.9 µin	0.099 µm	2 mm	0.079 in	Brown	Solder	Square	Male Pin	250 V	Through Hole	0.106 in	2.7 mm	85 °C	-40 C	UL94 V-0	3 A	40	Shrouded - 4 Wall	Gold	Copper Alloy	All	0.079 "	2 mm	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Detent Lock	Tin	0.118 in	3 mm	4.5 mm	0.177 in	0.291 in	7.4 mm
JAE Electronics LY20-40P-DLT1-P5E-BR	Board to Cable/Wire	2			2 mm	0.079 in	Brown	Solder	Square	Male Pin	250 V	Right Angle Through Hole	0.106 in	2.7 mm	85 °C	-40 C	UL94 V-0	3 A	40	Shrouded - 4 Wall		Copper Alloy	All	0.079 "	2 mm	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Detent Lock	Tin	0.118 in	3 mm	5.3 mm	0.209 in
