1SNK7 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

AUT SNK PI-SPRING

Part	Number of Levels	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Terminal - Width [y]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Current - UL	Material Flammability Rating	Current - IEC	Stripping Length	Voltage - IEC	Voltage - UL	Termination Style	Material - Insulation	For Use With/Related Products	Color	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Features	Voltage - UL [custom]	Number of Levels [custom]

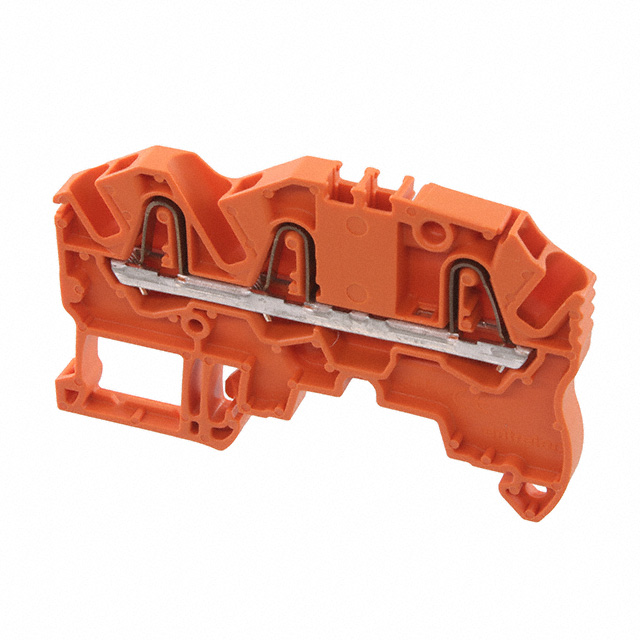

TE Connectivity Raychem Cable Protection 1SNK705031R0000	1	0.2 mm˛	4 mm˛	5.2 mm	12 AWG	26 AWG	Feed Through	20 A	UL94 V-0	24 A	11 mm	1 kV	600 V	Push In Spring	Nylon Polyamide (PA)

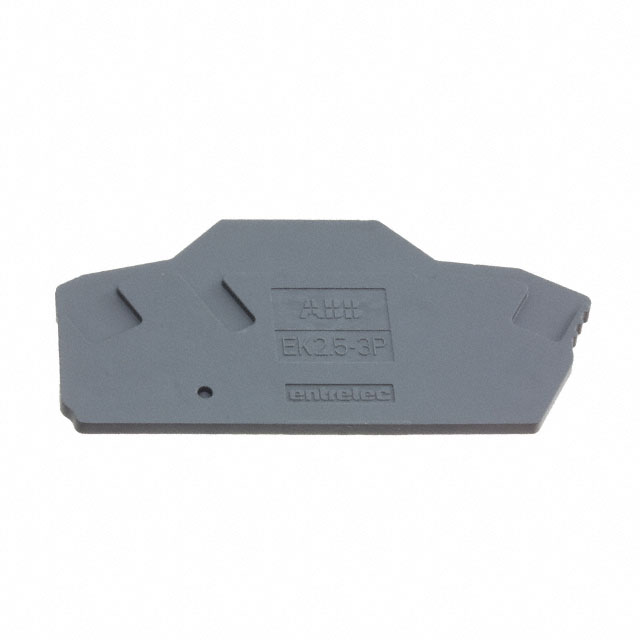

TE Connectivity Raychem Cable Protection 1SNK705911R0000							End Plate									SNK ZK Series	Gray

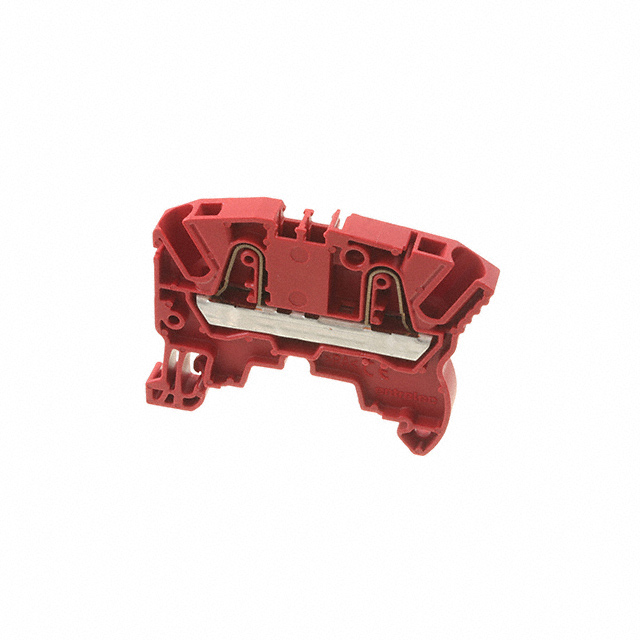

TE Connectivity Raychem Cable Protection 1SNK706062R0000	1	0.5 mm˛	6 mm˛	6 mm	10 AWG	26 AWG	Feed Through	30 A	UL94 V-0	32 A	12.5 mm	1 kV	600 V	Push In Spring	Nylon Polyamide (PA)		Red	2

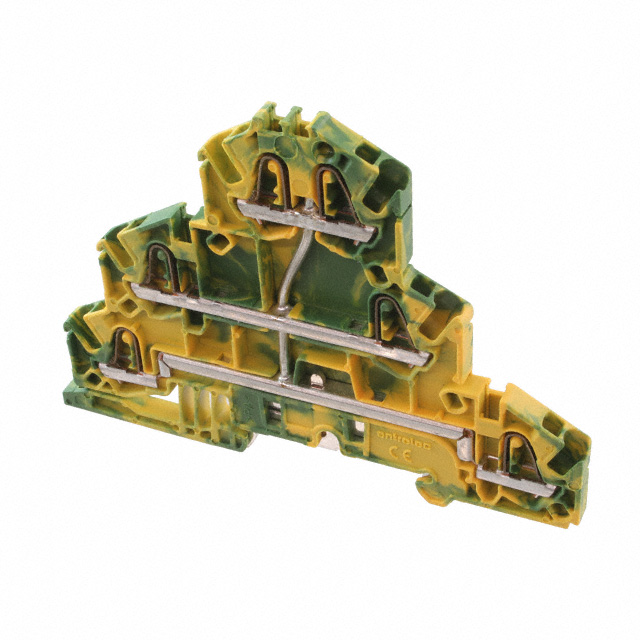

TE Connectivity Raychem Cable Protection 1SNK705550R0000	3			5.2 mm	12 AWG	26 AWG	Ground Earth		UL94 V-0		11 mm			Push In Spring	Nylon Polyamide (PA)		Green Yellow	6	0.2 mm²	4 mm²	Connected

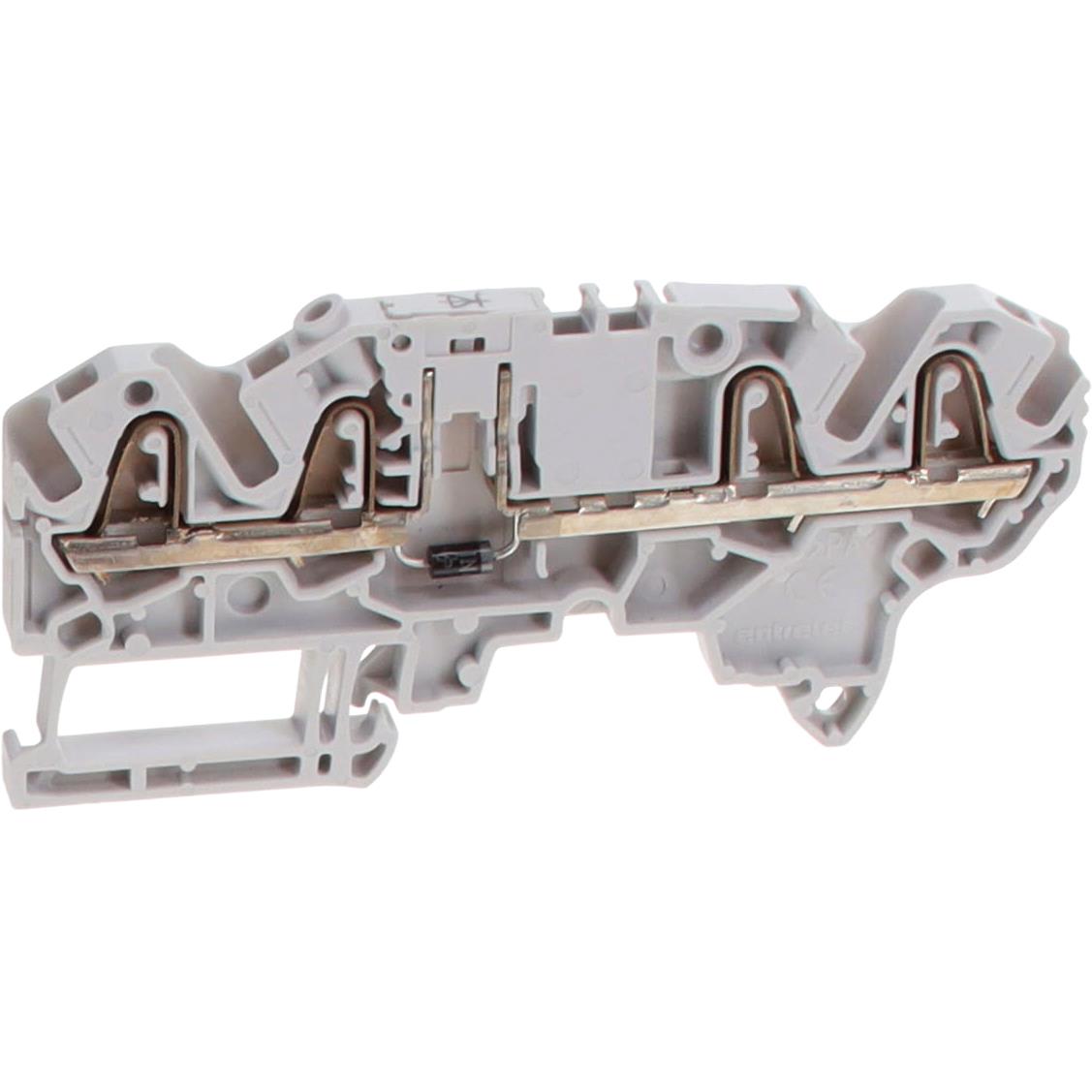

TE Connectivity Raychem Cable Protection 1SNK705710R0000	1			5.2 mm	12 AWG	26 AWG	Feed Through	1 A	UL94 V-0	1 A	11 mm	630 V		Push In Spring	Nylon Polyamide (PA)		Gray	4	0.2 mm²	4 mm²		Diode	300 V

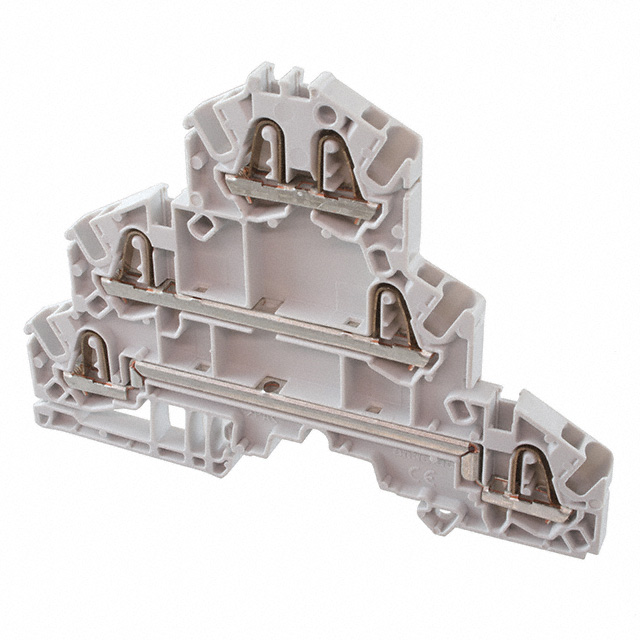

TE Connectivity Raychem Cable Protection 1SNK705510R0000				5.2 mm	12 AWG	26 AWG	Feed Through	20 A	UL94 V-0	22 A	11 mm	500 V		Push In Spring	Nylon Polyamide (PA)		Gray	6	0.2 mm²	4 mm²			300 V	3

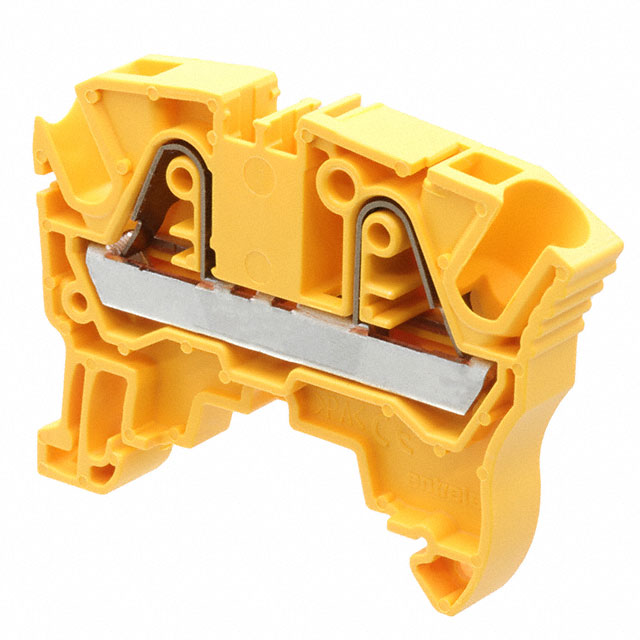

TE Connectivity Raychem Cable Protection 1SNK708060R0000	1			8 mm	8 AWG	24 AWG	Feed Through	50 A	UL94 V-0	41 A	12.5 mm	1 kV	600 V	Push In Spring	Nylon Polyamide (PA)		Yellow	2	0.5 mm²	10 mm²
