M13350 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

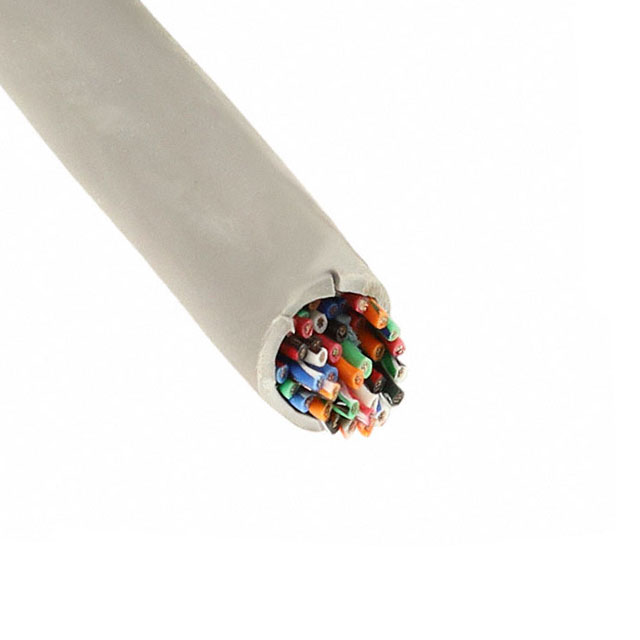

CABLE 50COND 22AWG SLATE 100'
| Part | Number of Conductors | Conductor Material | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Length [x] | Length [x] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 50 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | UL Style 2576 | 1.143 mm | 0.045 in | Multi-Conductor | 0.498 in | 12.65 mm | Slate | 22 AWG | 300 VDC | ||
 ALPHA WIRE | 50 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2576 | 1.143 mm | 0.045 in | Multi-Conductor | 0.498 in | 12.65 mm | Slate | 22 AWG | 300 VDC | 152.4 m | 500 ft | ||
ALPHA WIRE | 50 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2576 | 1.143 mm | 0.045 in | Multi-Conductor | 0.498 in | 12.65 mm | Slate | 22 AWG | 300 VDC | 304.8 m | 1000 ft |
