2016-120 Series

Catalog

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 4 AWG, 25 MM², CLAMP, 76 A

Part	Stripping Length [Max]	Stripping Length [Min]	Material - Insulation	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Terminal - Width [y]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Color	Termination Style	Type	Number of Positions	Current - UL	Voltage - IEC	Voltage - UL	Current - IEC

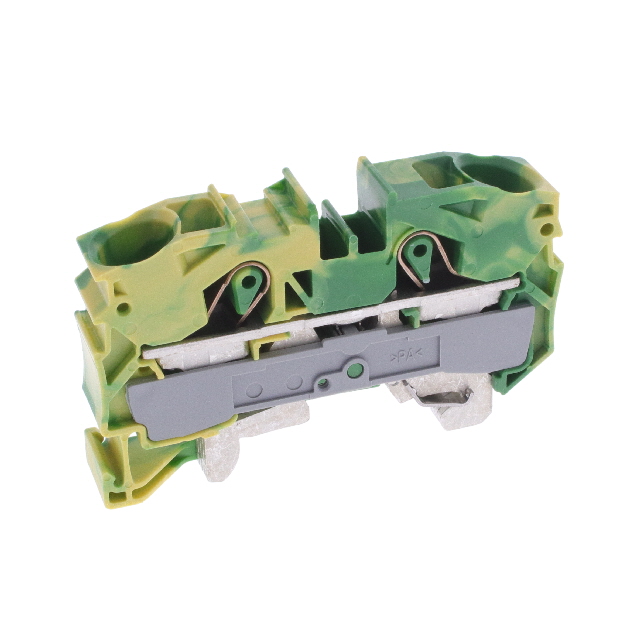

WAGO Corporation 2016-1207	20 mm	18 mm	Nylon 6/6 Polyamide (PA66)	1	16 mm²	6 mm²	12 mm	14 AWG	6 AWG	Green Yellow	Push In Spring	Ground Earth	2

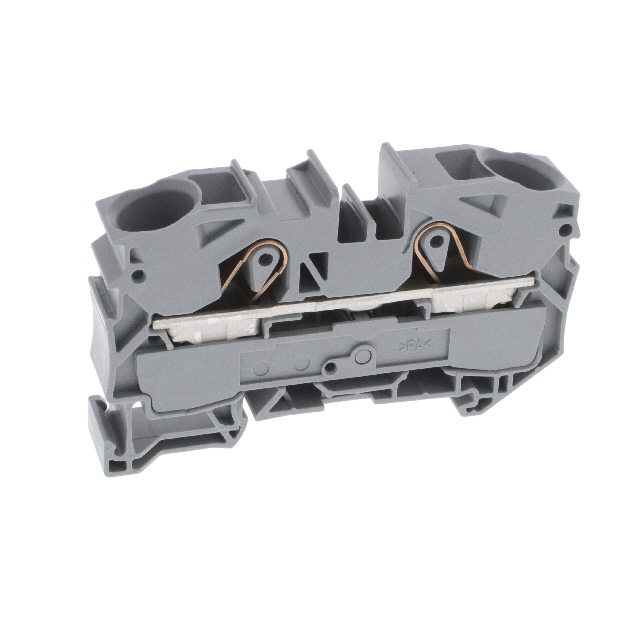

WAGO Corporation 2016-1201	20 mm	18 mm	Nylon 6/6 Polyamide (PA66)	1	16 mm²	6 mm²	12 mm	14 AWG	6 AWG	Gray	Push In Spring	Feed Through	2	85 A	800 V	600 V	90 A
