AB11BB Series

Catalog

PROCESS SEALED SUBMINIATURE PUSHBUTTON

Part	Mechanical Life	Electrical Life	Features	Actuator Type	Voltage Rating - DC	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Current Rating (Amps)	Circuit	Mounting Type	Voltage Rating - AC	Actuator Marking	Termination Style	Type
NKK Switches AB11BB-FA	50000 Cycles	50000 Cycles	Sealed - Fully	Button Round	28 V	Black	85 °C	-30 ░C	Off-Mom	0.4 VA	SPST-NO	Through Hole	28 V	No Marking	PC Pin	Standard

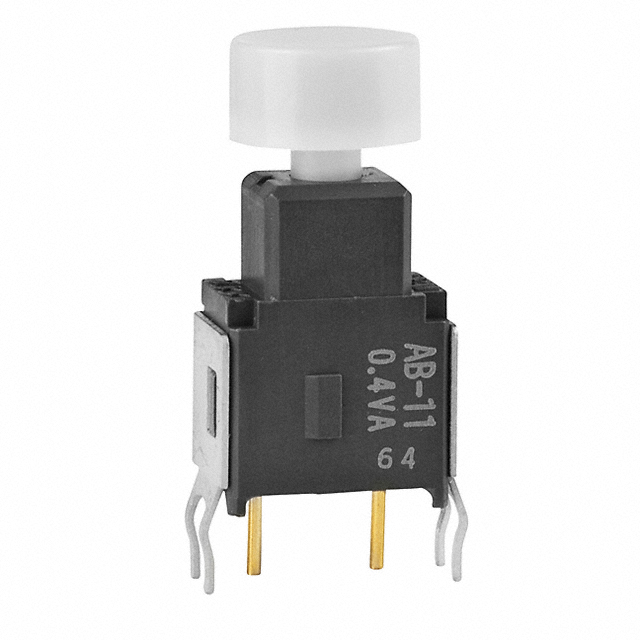

NKK Switches AB11BB-HB	50000 Cycles	50000 Cycles	Sealed - Fully	Button Round	28 V	White	85 °C	-30 ░C	Off-Mom	0.4 VA	SPST-NO	Through Hole	28 V	No Marking	PC Pin	Standard
NKK Switches AB11BB-FC	50000 Cycles	50000 Cycles	Sealed - Fully	Button Round	28 V	Red	85 °C	-30 ░C	Off-Mom	0.4 VA	SPST-NO	Through Hole	28 V	No Marking	PC Pin	Standard

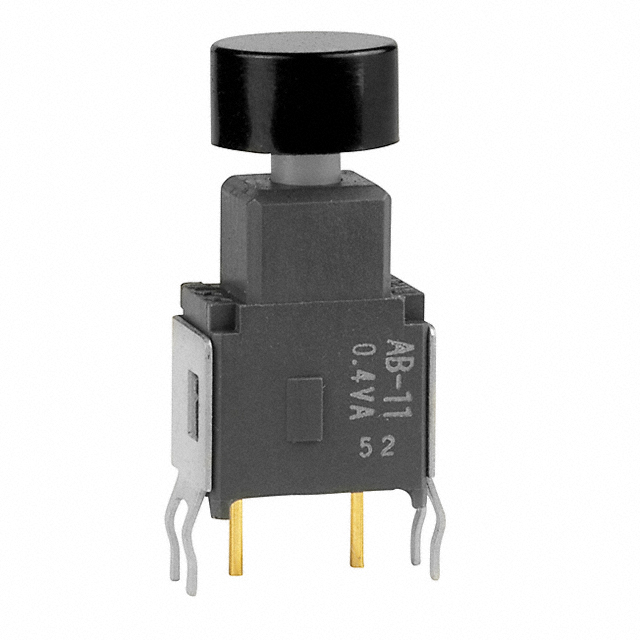

NKK Switches AB11BB-HA	50000 Cycles	50000 Cycles	Sealed - Fully	Button Round	28 V	Black	85 °C	-30 ░C	Off-Mom	0.4 VA	SPST-NO	Through Hole	28 V	No Marking	PC Pin	Standard
