CSS-1210 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH SLIDE SPDT 100MA 12V
| Part | Switch Travel | Electrical Life | Actuator Material | Operating Force [Max] | Operating Force [Min] | Mounting Type | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Contact Finish | Contact Material | Actuator Type | Circuit | Current Rating (Amps) | Contact Timing | Termination Style | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

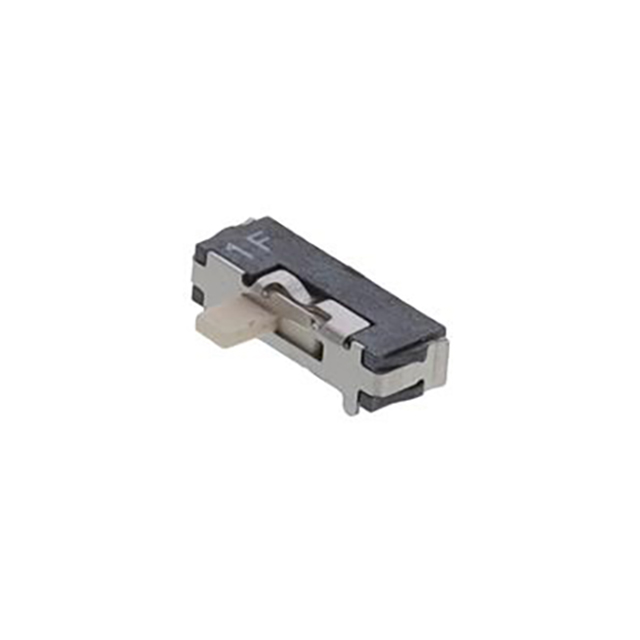

 Nidec Components Corporation | 2 mm | 10000 Cycles | Liquid Crystal Polymer (LCP) | 357 gf | 102 gf | Right Angle Surface Mount | On-On | -20 ░C | 70 °C | 12 V | Gold | Copper Alloy | Standard | SPDT | 100 mA | Non-Shorting (BBM) | Gull Wing | 2 mm |

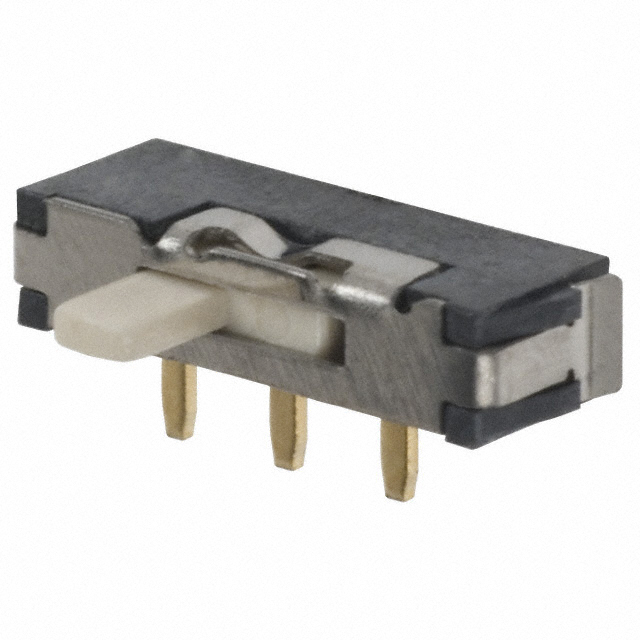

 Nidec Components Corporation | 2 mm | 10000 Cycles | Liquid Crystal Polymer (LCP) | 357 gf | 102 gf | Right Angle Through Hole | On-On | -20 ░C | 70 °C | 12 V | Gold | Copper Alloy | Standard | SPDT | 100 mA | Non-Shorting (BBM) | PC Pin | 2 mm |
