EAST1615 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED BI-COLOR GREEN/YELLOW 575NM/591NM 4-PIN SMD-B T/R

Part	Size / Dimension [x]	Size / Dimension [y]	Color	Wavelength - Dominant	Current - Test	Lens Style	Lens Color	Supplier Device Package	Mounting Type	Wavelength - Peak	Package / Case	Lens Transparency	Millicandela Rating [custom]	Millicandela Rating [custom]	Configuration	Viewing Angle	Height (Max) [z]	Lens Size [x]	Lens Size [y]	Voltage - Forward (Vf) (Typ)	Current - Test	Wavelength - Dominant	Millicandela Rating	Wavelength - Peak	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]
Everlight Electronics Co Ltd EAST1615YGA0	1.5 mm	1.6 mm	Green Yellow	572nm Green 590nm Yellow	20 mA 20 mA	Rectangle with Flat Top	Colorless	4-SMD	Surface Mount	575nm Green 591nm Yellow	4-SMD No Lead	Clear	54 mcd	43 mcd	Independent	130 °	0.6 mm	1.2 mm	1.5 mm	2 V 2 V

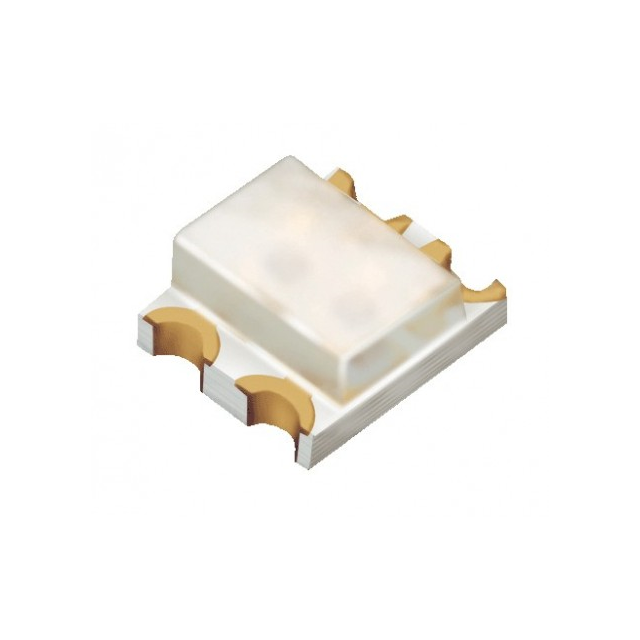

Everlight Electronics Co Ltd EAST1615GAA0	1.5 mm	1.6 mm	Green Orange			Rectangle with Flat Top	Colorless	4-SMD	Surface Mount		4-SMD No Lead	Clear			Independent	130 °	0.6 mm	1.2 mm	1.5 mm	2 V 2 V	20mA Green 20mA Orange	572 nm 605 nm	45 mcd 135 mcd	575 nm 611 nm
Everlight Electronics Co Ltd EAST1615RBA1	1.5 mm	1.6 mm	Blue Red	471nm Blue 626nm Red		Rectangle with Flat Top	Colorless	4-SMD	Surface Mount		4-SMD No Lead	Clear			Independent	130 °	0.6 mm	1.2 mm	1.5 mm	2 V 3.3 V	20mA Blue 20mA Red		54 mcd 126 mcd	468 nm 632 nm
Everlight Electronics Co Ltd EAST1615AWA0	1.5 mm	1.6 mm	Orange White		5 mA 5 mA	Rectangle with Flat Top	Yellow	4-SMD	Surface Mount		4-SMD No Lead	Diffused			Independent	140 °	0.6 mm	1.2 mm	1.5 mm	2.05 V 3.2 V		605 nm	32 mcd 79 mcd	611 nm
Everlight Electronics Co Ltd EAST1615ABA0	1.5 mm	1.6 mm	Blue Orange			Rectangle with Flat Top	Colorless	4-SMD	Surface Mount		4-SMD No Lead	Clear			Independent	130 °	0.6 mm	1.2 mm	1.5 mm	2.05 V 3.3 V	20mA Blue 20mA Orange	470 nm 605 nm	54 mcd 106 mcd	468 nm 611 nm
Everlight Electronics Co Ltd EAST1615RBA0	1.5 mm	1.6 mm	Blue Red	471nm Blue 632nm Red		Rectangle with Flat Top	Colorless	4-SMD	Surface Mount		4-SMD No Lead	Clear			Independent	130 °	0.6 mm	1.2 mm	1.5 mm	2 V 3.3 V	20mA Blue 20mA Red		63 mcd 79 mcd	468 nm 639 nm
Everlight Electronics Co Ltd EAST1615RGA0	1.5 mm	1.6 mm	Green Red	573nm Green 624nm Red		Rectangle with Flat Top	Colorless	4-SMD	Surface Mount		4-SMD No Lead	Clear			Independent	130 °	0.6 mm	1.2 mm	1.5 mm	2 V 2 V			40 mcd 126 mcd	575 nm 632 nm	20 mA	20 mA
Everlight Electronics Co Ltd EAST1615RGA1	1.5 mm	1.6 mm	Green Red			Rectangle with Flat Top	Colorless	4-SMD	Surface Mount		4-SMD No Lead	Clear		45 mcd	Independent	120 °	0.6 mm	1.2 mm	1.5 mm	2.05 V 2.05 V		570 nm 631 nm		575 nm 639 nm	20 mA	20 mA	45 mcd
