9TGA48 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

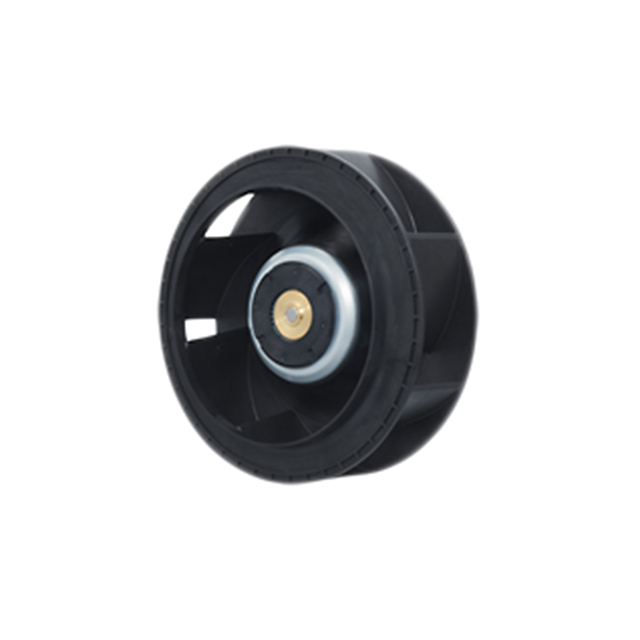

FAN: DC; RADIAL; 48VDC; Ø175X69MM; 1056M3/H; 80DBA; BALL; 5700RPM
| Part | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Material - Frame | Lifetime @ Temp. | Air Flow | Air Flow | Material - Blade | Voltage - Rated | Noise | Size / Dimension | Size / Dimension [diameter] | Weight | Weight | RPM | Approval Agency | Features | Bearing Type | Fan Type | Power (Watts) | Width [y] | Static Pressure | Static Pressure | Termination | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 72 VDC | 36 VDC | 3.5 A | Aluminum | Varies Based on Temperature | 17.42 mł/min | 622 CFM | Plastic | 48 VDC | 80 dB(A) | Round | 175 mm | 1.6 lbs | 725.7 g | 5700 RPM | cURus TUV | PWM Control Speed Sensor (Tach) | Ball | Motorized Impellers | 168 W | 69 mm | 1100 Pa | 4.42 in H2O | 4 Wire Leads | -20 ░C | 70 °C |
