D22022 Series

Catalog

SWITCH TOGGLE DPDT 0.4VA 48V

Part	Actuator Material	Electrical Life	Circuit	Voltage Rating - AC	Current Rating (Amps)	Bushing Thread	Switch Function	Actuator Type	Termination Style	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - DC	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Bushing Thread
NKK Switches D22022V	Brass Chrome Plated	50000 Cycles	DPDT	48 V	0.4 VA	Unthreaded	On-On	Standard Round	PC Pin	Non-Illuminated	70 °C	-10 °C	Right Angle Through Hole Vertical	48 V
NKK Switches D22022LB	Brass Chrome Plated	50000 Cycles	DPDT	48 V	0.4 VA	Unthreaded	On-On	Locking Lever	PC Pin	Non-Illuminated	70 °C	-10 °C	Through Hole	48 V	19.4 mm
NKK Switches D22022LV	Brass Chrome Plated	50000 Cycles	DPDT	48 V	0.4 VA	Unthreaded	On-On	Locking Lever	PC Pin	Non-Illuminated	70 °C	-10 °C	Right Angle Through Hole Vertical	48 V	19.4 mm

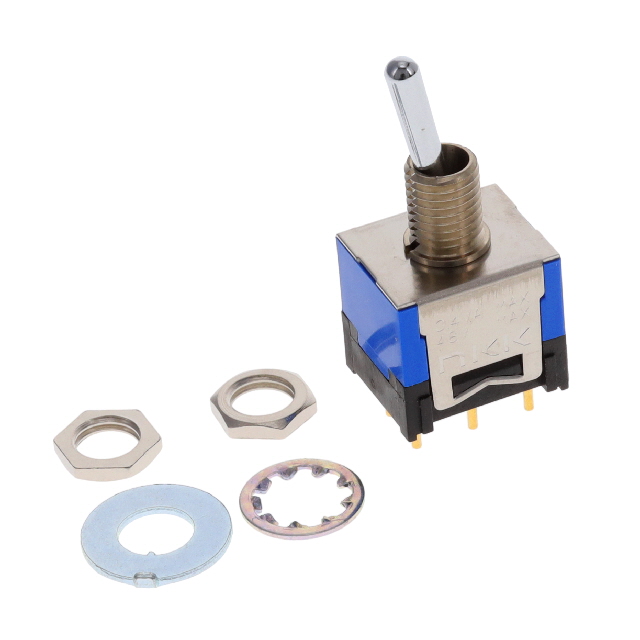

NKK Switches D22022P	Brass Chrome Plated	50000 Cycles	DPDT	48 V	0.4 VA	M6	On-On	Standard Round	PC Pin	Non-Illuminated	70 °C	-10 °C	Panel Mount	48 V		6.5 mm	0.75
NKK Switches D22022B	Brass Chrome Plated	50000 Cycles	DPDT	28 V	0.4 VA	Unthreaded	On-On	Standard Round	PC Pin	Non-Illuminated	70 °C	-10 °C	Through Hole	28 V
