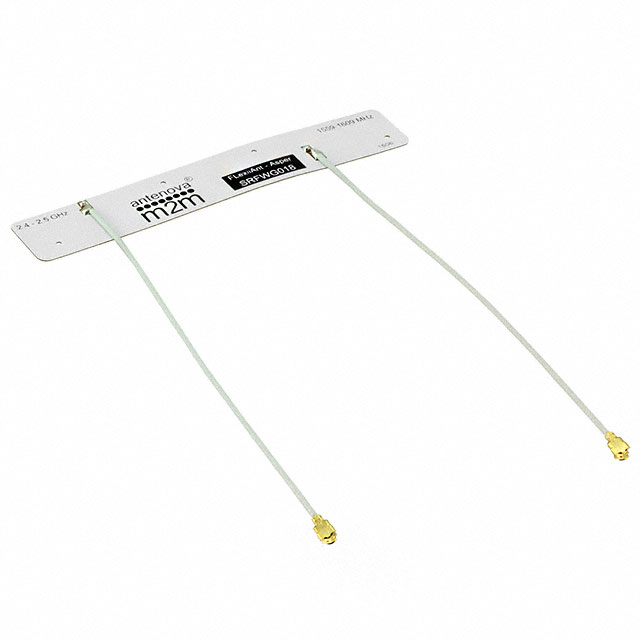

SRFWG018 Series

Manufacturer: Antenova

Catalog

RF ANT 1.561/1.575GHZ FLAT 200MM

Part	Termination	Return Loss	Frequency Group [Max]	Frequency Group [Min]	Applications	Mounting Type	Number of Bands	Gain	RF Family/Standard	Features	Frequency (Center/Band)	VSWR	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Height (Max) [z]	Height (Max) [z]	Features
Antenova SRFWG018-200	I-PEX MHF1 (2) IPEX MHF1 (2) U.FL (UMCC)	-18.4 dB -14.5 dB	2 GHz 3 GHz	1 GHz 2 GHz	Bluetooth GNSS Wi-Fi	Adhesive	2	4.25 dBic 5.6 dBi	Bluetooth Navigation WiFi	Cable - 200mm	1.561 GHz 1.575 GHz 1.602 GHz 2.4 GHz	1.3 1.4	Flat Patch	1.609 GHz 2.5 GHz	1.559 GHz 2.4 GHz	0.15 mm	0.006 in
Antenova SRFWG018-100	I-PEX MHF1 (2) IPEX MHF1 (2) U.FL (UMCC)	-18 dB	2 GHz 3 GHz	1 GHz 2 GHz	Bluetooth GNSS Wi-Fi	Adhesive	2	5.6 dBi	Bluetooth Navigation WiFi	Cable	1.561 GHz 1.575 GHz 1.602 GHz 2.4 GHz	1.4	Flat Patch	1.609 GHz 2.5 GHz	1.559 GHz 2.4 GHz	0.15 mm	0.006 in	100 mm
Antenova SRFWG018-150	I-PEX MHF1 (2) IPEX MHF1 (2) U.FL (UMCC)	-18 dB	2 GHz 3 GHz	1 GHz 2 GHz	Bluetooth GNSS Wi-Fi	Adhesive	2	5.6 dBi	Bluetooth Navigation WiFi	Cable - 150mm	1.561 GHz 1.575 GHz 1.602 GHz 2.4 GHz	1.4	Flat Patch	1.609 GHz 2.5 GHz	1.559 GHz 2.4 GHz	0.15 mm	0.006 in
