2102080 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

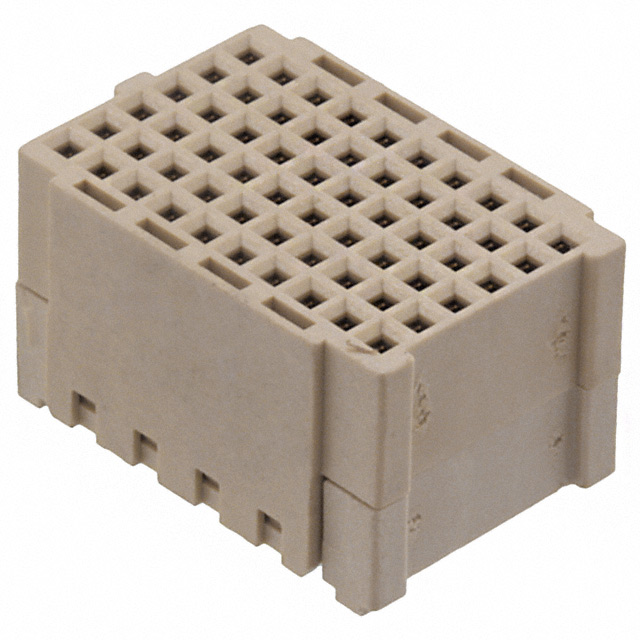

CONN RCPT 60POS 0.05 GOLD SMD
| Part | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Contact Type | Number of Positions | Mated Stacking Heights | Termination | Number of Positions Loaded | Connector Type | Insulation Height | Insulation Height | Fastening Type | Contact Finish - Mating | Insulation Material | Contact Finish - Post | Voltage Rating | Pitch - Mating | Pitch - Mating | Insulation Color | Features | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | 6 | -55 °C | 125 °C | 0.05 in | 1.27 mm | Surface Mount | 1.27 µm | 50 µin | Square | Female Socket | 60 | 12 mm | Solder | All | Receptacle | 0.315 in | 8 mm | Push-Pull | Gold | Liquid Crystal Polymer (LCP) | Tin | 250 VAC | 0.05 in | 1.27 mm | Natural | Pick and Place | Beryllium Copper |
 TE Connectivity Aerospace, Defense and Marine | 6 | -55 °C | 125 °C | 0.05 in | 1.27 mm | Surface Mount | 1.27 µm | 50 µin | Square | Female Socket | 60 | 12 mm | Solder | All | Receptacle | 0.315 in | 8 mm | Push-Pull | Gold | Liquid Crystal Polymer (LCP) | Tin-Lead | 250 VAC | 0.05 in | 1.27 mm | Natural | Pick and Place | Beryllium Copper |
