KX15-60K Series

Catalog

CONN PLUG 60POS SMD GOLD

Part	Contact Finish	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Features	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Number of Rows [custom]

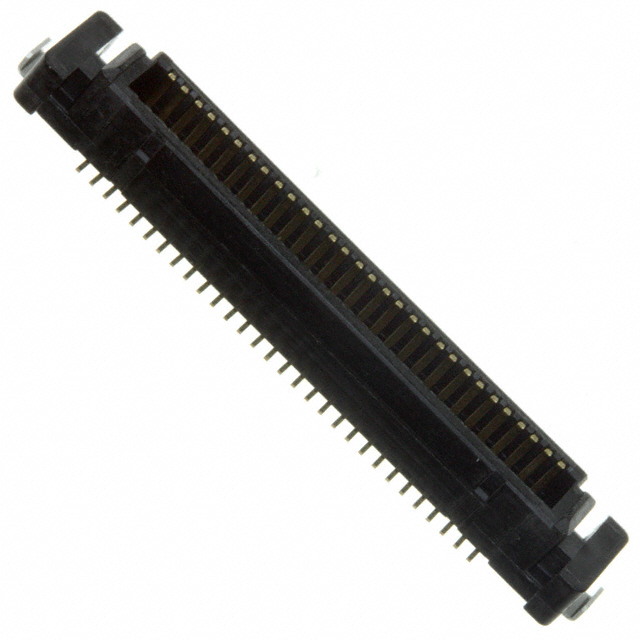

JAE Electronics KX15-60K3DE	Gold	0.8 mm	0.031 in	4.75 mm	0.187 in	Board Guide Solder Retention	5 mm 8 mm 11 mm 14 mm 17 mm	0.1 Ám	4 Áin	Surface Mount	60	2
JAE Electronics KX15-60K4D-E1000E	Gold	0.8 mm	0.031 in	5.74 mm	0.226 "	Board Guide Solder Retention	6 mm 9 mm 12 mm 15 mm 18 mm	0.1 Ám	4 Áin	Surface Mount	60	2

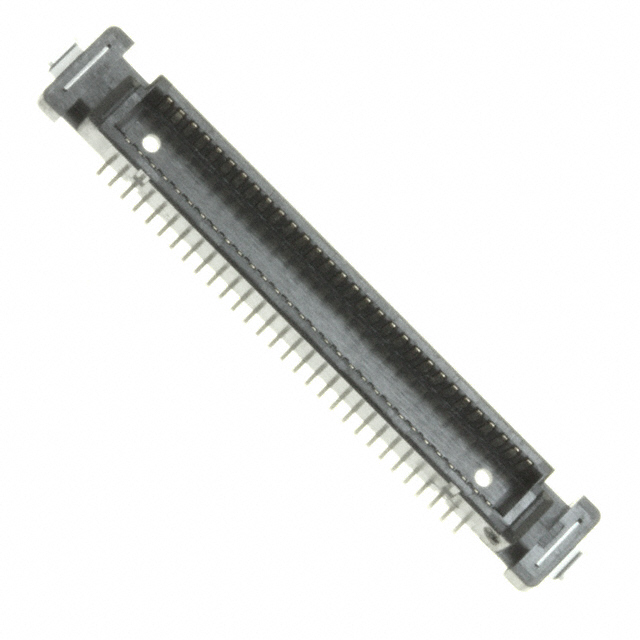

JAE Electronics KX15-60K2DE	Gold	0.8 mm	0.031 in	3.75 mm	0.148 in	Board Guide Solder Retention	4 mm 7 mm 10 mm 13 mm 16 mm	0.1 Ám	4 Áin	Surface Mount	60	2

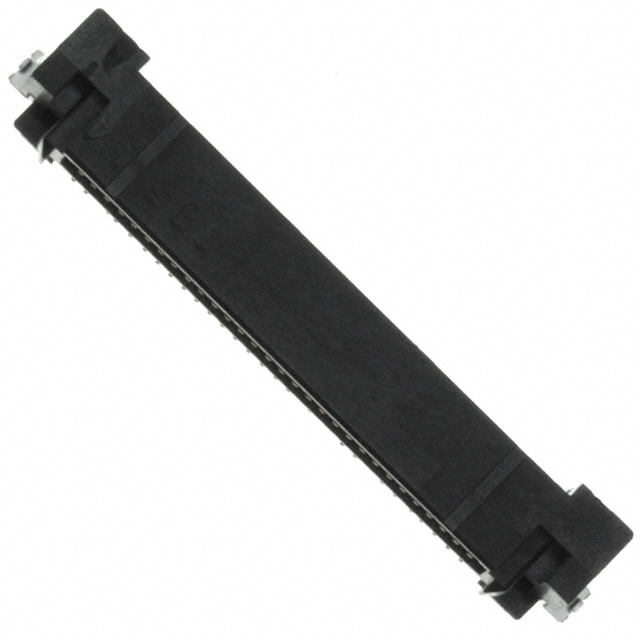

JAE Electronics KX15-60KLDLE	Gold	0.8 mm	0.031 in	5.74 mm	0.226 "	Board Guide Solder Retention		0.1 Ám	4 Áin	Right Angle Surface Mount	60	2

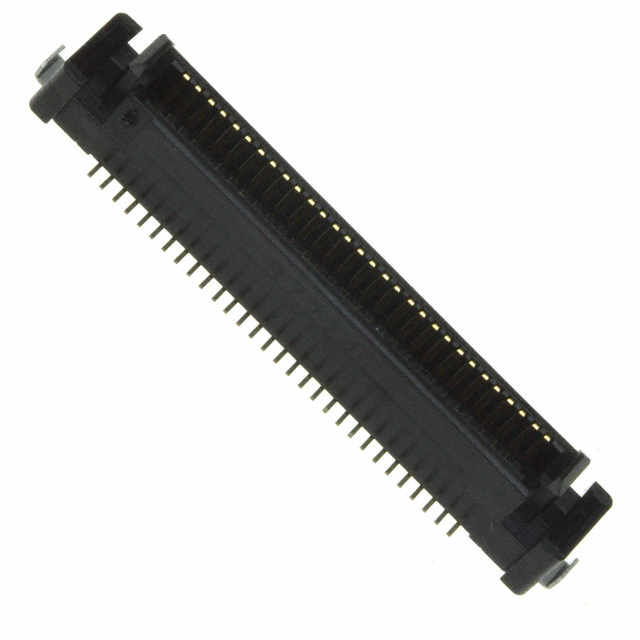

JAE Electronics KX15-60K4DE	Gold	0.8 mm	0.031 in	5.74 mm	0.226 "	Board Guide Solder Retention	6 mm 9 mm 12 mm 15 mm 18 mm	0.1 Ám	4 Áin	Surface Mount	60	2
JAE Electronics KX15-60KLDL-E1000E	Gold	0.8 mm	0.031 in	5.74 mm	0.226 "	Board Guide Solder Retention		0.1 Ám	4 Áin	Right Angle Surface Mount	60	2
