AC/DC CONVERTER 14V 1/2W

Part	Efficiency	Type	Mounting Type	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Features	Number of Outputs	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Applications	Approval Agency	Current - Output (Max)	Power (Watts)	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Current - Output (Max)

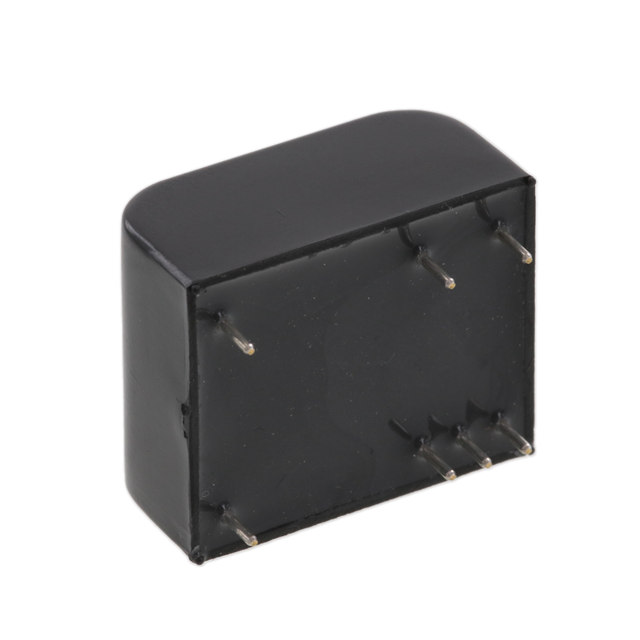

Cita Technologies, LLC. BPSX 0.5-14-00	70 %	Enclosed	Through Hole	14 V	265 VAC	85 VAC	Universal Input	1	7-DIP Module	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	ITE (Commercial)	CB cURus
Cita Technologies, LLC. BPSX 0.5-14-33	70 %	Enclosed	Through Hole	14 V	265 VAC	85 VAC	Universal Input	2	7-DIP Module	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	ITE (Commercial)	CB cURus	23 mA 36 mA	441 mW
Cita Technologies, LLC. BPSX 0.5-08-33	70 %	Enclosed	Through Hole	8 V	265 VAC	85 VAC	Universal Input	2	7-DIP Module	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	ITE (Commercial)	CB cURus		632 mW	53 mA	63 mA
Cita Technologies, LLC. BPSX 0.5-08-50	70 %	Enclosed	Through Hole	8 V	265 VAC	85 VAC	Universal Input	2	7-DIP Module	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	ITE (Commercial)	CB cURus	63 mA	819 mW			63 mA
Cita Technologies, LLC. BPSX 0.5-14-50	70 %	Enclosed	Through Hole	14 V	265 VAC	85 VAC	Universal Input	2	7-DIP Module	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	ITE (Commercial)	CB cURus	28 mA 36 mA	572 mW

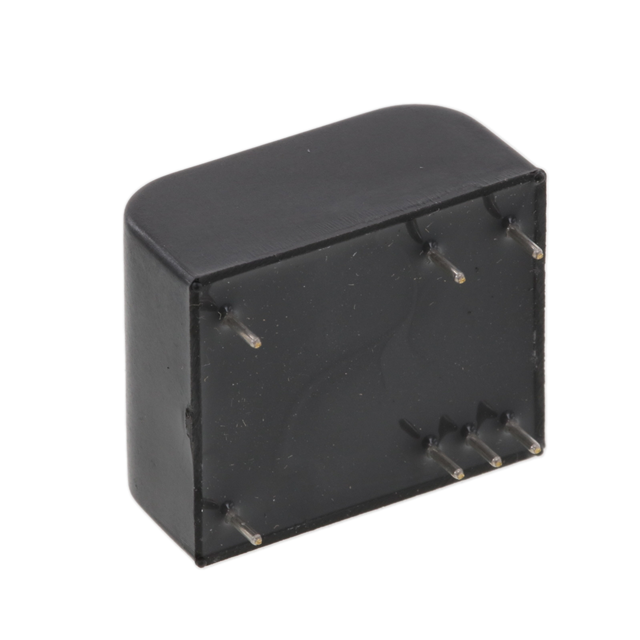

Cita Technologies, LLC. BPSX 0.5-08-00	70 %	Enclosed	Through Hole	8 V	265 VAC	85 VAC	Universal Input	1	7-DIP Module	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	ITE (Commercial)	CB cURus
