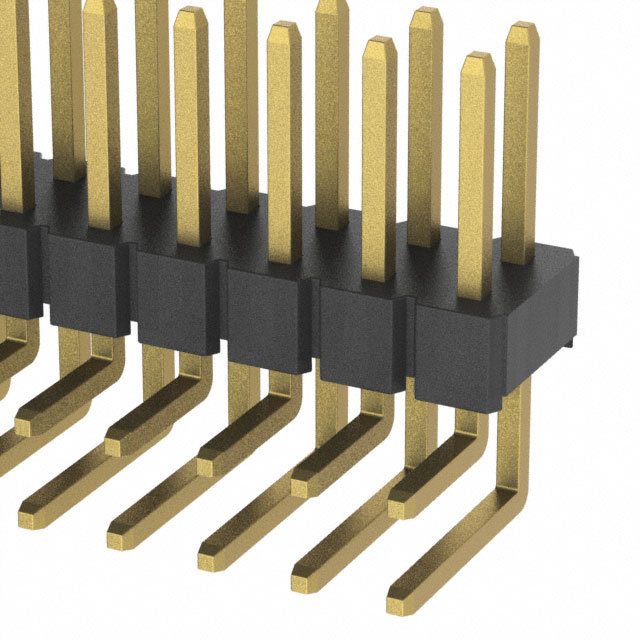

PH2RA Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 18POS 2.54MM

Part	Contact Finish Thickness - Post	Termination	Contact Type	Contact Material	Mounting Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Shrouding	Current Rating (Amps)	Connector Type	Number of Positions	Contact Finish - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Fastening Type	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions Loaded	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Number of Positions [custom]
Adam Tech PH2RA-18-UA	Flash	Solder	Male Pin	Brass	Right Angle Through Hole	0.197 "	5 mm	3.05 mm	0.12 in	Unshrouded	3 A	Header	18	Gold	Square	-40 C	105 ░C	UL94 V-0	5.97 mm	0.235 in	Push-Pull	Black	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	2	0.1 in	2.54 mm	250 VAC	Gold	Flash
Adam Tech PH2RA-22-UA	Flash	Solder	Male Pin	Brass	Right Angle Through Hole	0.197 "	5 mm	3.05 mm	0.12 in	Unshrouded	3 A	Header	22	Gold	Square	-40 C	105 ░C	UL94 V-0	5.97 mm	0.235 in	Push-Pull	Black	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	2	0.1 in	2.54 mm	250 VAC	Gold	Flash
Adam Tech PH2RA-26-UA	Flash	Solder	Male Pin	Brass	Right Angle Through Hole	0.197 "	5 mm	3.05 mm	0.12 in	Unshrouded	3 A	Header	26	Gold	Square	-40 C	105 ░C	UL94 V-0	5.97 mm	0.235 in	Push-Pull	Black	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	2	0.1 in	2.54 mm	250 VAC	Gold	Flash
Adam Tech PH2RA-20-UA	Flash	Solder	Male Pin	Brass	Right Angle Through Hole	0.197 "	5 mm	3.05 mm	0.12 in	Unshrouded	3 A	Header	20	Gold	Square	-40 C	105 ░C	UL94 V-0	5.97 mm	0.235 in	Push-Pull	Black	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	2	0.1 in	2.54 mm	250 VAC	Gold	Flash
Adam Tech PH2RA-12-UA	Flash	Solder	Male Pin	Brass	Right Angle Through Hole	0.197 "	5 mm	3.05 mm	0.12 in	Unshrouded	3 A	Header	12	Gold	Square	-40 C	105 ░C	UL94 V-0	5.97 mm	0.235 in	Push-Pull	Black	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	2	0.1 in	2.54 mm	250 VAC	Gold	Flash
Adam Tech PH2RA-32-UA	Flash	Solder	Male Pin	Brass	Right Angle Through Hole	0.197 "	5 mm	3.05 mm	0.12 in	Unshrouded	3 A	Header		Gold	Square	-40 C	105 ░C	UL94 V-0	5.97 mm	0.235 in	Push-Pull	Black	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	2	0.1 in	2.54 mm	250 VAC	Gold	Flash
Adam Tech PH2RA-16-UA	Flash	Solder	Male Pin	Brass	Right Angle Through Hole	0.197 "	5 mm	3.05 mm	0.12 in	Unshrouded	3 A	Header	16	Gold	Square	-40 C	105 ░C	UL94 V-0	5.97 mm	0.235 in	Push-Pull	Black	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	2	0.1 in	2.54 mm	250 VAC	Gold	Flash
Adam Tech PH2RA-38-UA	Flash	Solder	Male Pin	Brass	Right Angle Through Hole	0.197 "	5 mm	3.05 mm	0.12 in	Unshrouded	3 A	Header	38	Gold	Square	-40 C	105 ░C	UL94 V-0	5.97 mm	0.235 in	Push-Pull	Black	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	2	0.1 in	2.54 mm	250 VAC	Gold	Flash
Adam Tech PH2RA-36-UA	Flash	Solder	Male Pin	Brass	Right Angle Through Hole	0.197 "	5 mm	3.05 mm	0.12 in	Unshrouded	3 A	Header	36	Gold	Square	-40 C	105 ░C	UL94 V-0	5.97 mm	0.235 in	Push-Pull	Black	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	2	0.1 in	2.54 mm	250 VAC	Gold	Flash
Adam Tech PH2RA-34-UA	Flash	Solder	Male Pin	Brass	Right Angle Through Hole	0.197 "	5 mm	3.05 mm	0.12 in	Unshrouded	3 A	Header		Gold	Square	-40 C	105 ░C	UL94 V-0	5.97 mm	0.235 in	Push-Pull	Black	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	All	2	0.1 in	2.54 mm	250 VAC	Gold	Flash	34
