Pts8500 Series Series
Manufacturer: LITTELFUSE
Beta
⌘K

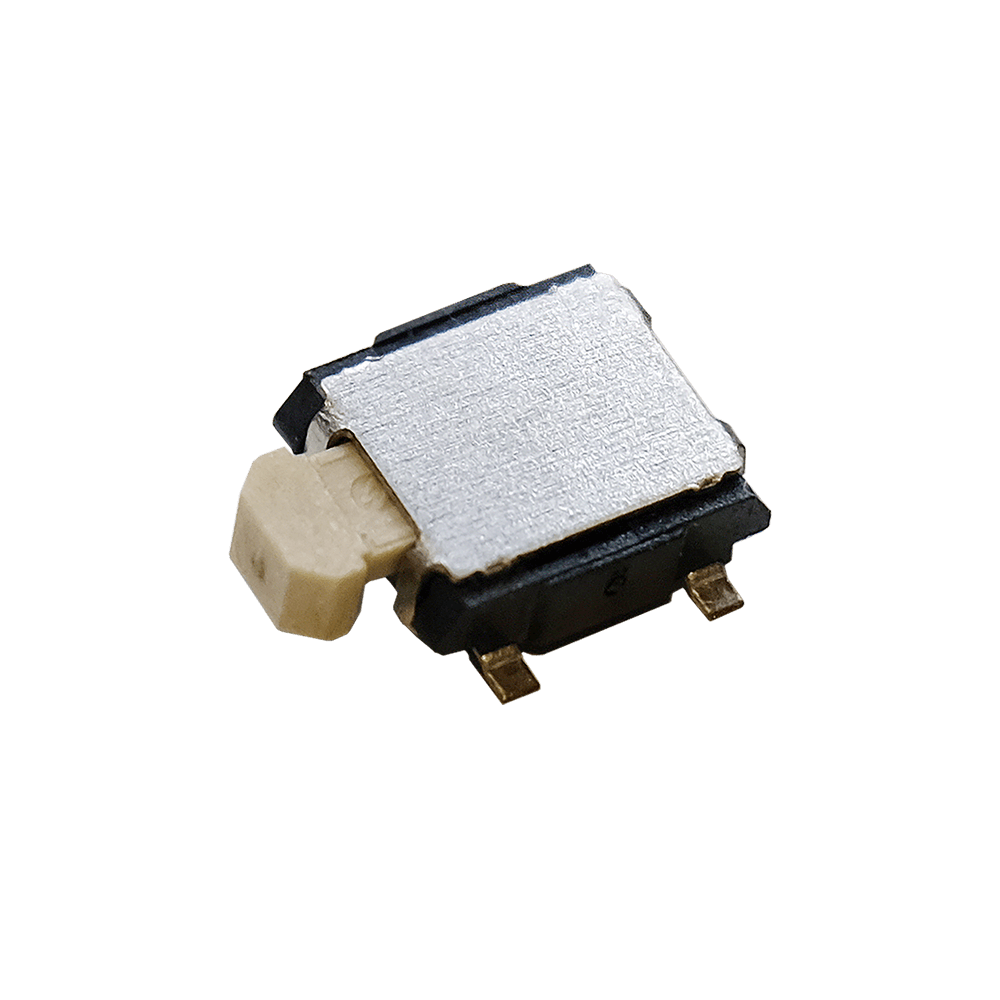

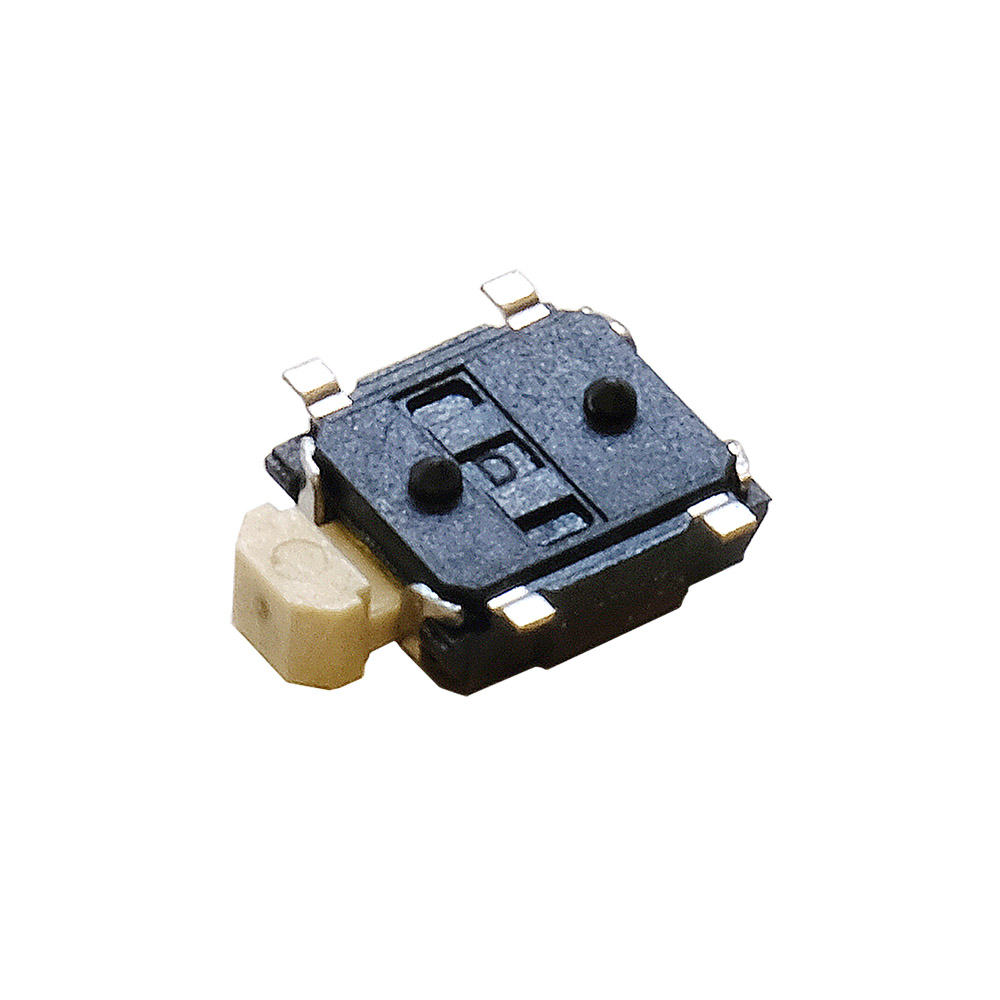

5.4 × 5.0 SIDE ACTUATED SMT TACT SWITCH
| Part | Mechanical Life | Switch Travel | Operating Force | Actuator Type | Illumination | Termination Style | Outline [y] | Outline [x] | Actuator Orientation | Circuit | Switch Function | Contact Rating @ Voltage | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 50000 Cycles | 0.2 mm | 180 gf | Rectangular Button | Non-Illuminated | Gull Wing | 5 mm | 5.4 mm | Side Actuated | SPST-NO | Off-Mom | 0.05 A 12 VDC | Right Angle Surface Mount | 85 °C | -40 C |
 LITTELFUSE | 350 gf | Rectangular Button | Non-Illuminated | Gull Wing | 5 mm | 5.4 mm | Side Actuated | SPST-NO | Off-Mom | 0.05 A 12 VDC | Right Angle Surface Mount | 85 °C | -40 C | ||
 LITTELFUSE | 180 gf | Rectangular Button | Non-Illuminated | Gull Wing | 5 mm | 5.4 mm | Side Actuated | SPST-NO | Off-Mom | 0.05 A 12 VDC | Right Angle Surface Mount | 85 °C | -40 C | ||
 LITTELFUSE | 50000 Cycles | 0.2 mm | 350 gf | Rectangular Button | Non-Illuminated | Gull Wing | 5 mm | 5.4 mm | Side Actuated | SPST-NO | Off-Mom | 0.05 A 12 VDC | Right Angle Surface Mount | 85 °C | -40 C |
