GW22LC Series

Catalog

SWITCH ROCKER DPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Switch Function	Features	Circuit	Current Rating (Amps)	Color - Actuator/Cap	Mounting Type	Approval Agency	Termination Style	Actuator Marking	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Voltage Rating - AC
NKK Switches GW22LCV	50000 Cycles	50000 Cycles	On-On	Sealed - Flux Protection	DPDT	0.4 VA	Red	Right Angle Through Hole Vertical	CSA UL	PC Pin	No Marking	Paddle	85 °C	-30 ░C	28 V	28 V

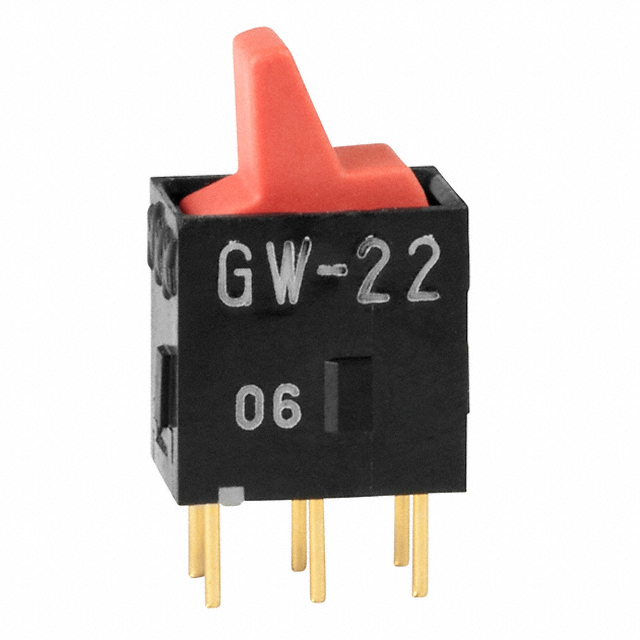

NKK Switches GW22LCP	50000 Cycles	50000 Cycles	On-On	Sealed - Flux Protection	DPDT	0.4 VA	Red	Through Hole	CSA UL	PC Pin	No Marking	Paddle	85 °C	-30 ░C	28 V	28 V
NKK Switches GW22LCH	50000 Cycles	50000 Cycles	On-On	Sealed - Flux Protection	DPDT	0.4 VA	Red	Right Angle Through Hole	CSA UL	PC Pin	No Marking	Paddle	85 °C	-30 ░C	28 V	28 V
