G800LF3 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

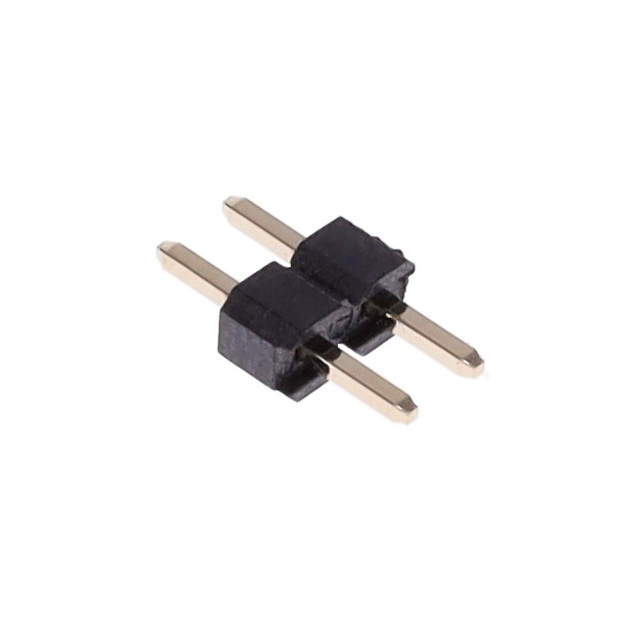

PIN HEADER 2.54MM PITCH STR DIP,
| Part | Contact Finish Thickness - Post | Overall Contact Length [x] | Overall Contact Length [x] | Number of Positions | Connector Type | Number of Positions Loaded | Fastening Type | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Contact Material | Insulation Color | Number of Rows | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Finish - Mating | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Contact Finish Thickness - Mating | Contact Shape | Mounting Type | Termination | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Finish - Post | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Flash | 9.14 mm 9.15 mm | 0.36 in | 2 | Header | All | Push-Pull | 0.13 in | 3.3 mm | 0.1 in | 2.54 mm | Copper Alloy | Black | 1 | 0.1 " | 2.54 mm | Liquid Crystal Polymer (LCP) | Gold | 3 A | 105 ░C | -25 °C | Unshrouded | Flash | Square | Through Hole | Solder | 0.13 " | 3.3 mm | UL94 V-0 | Gold | Male Pin |
