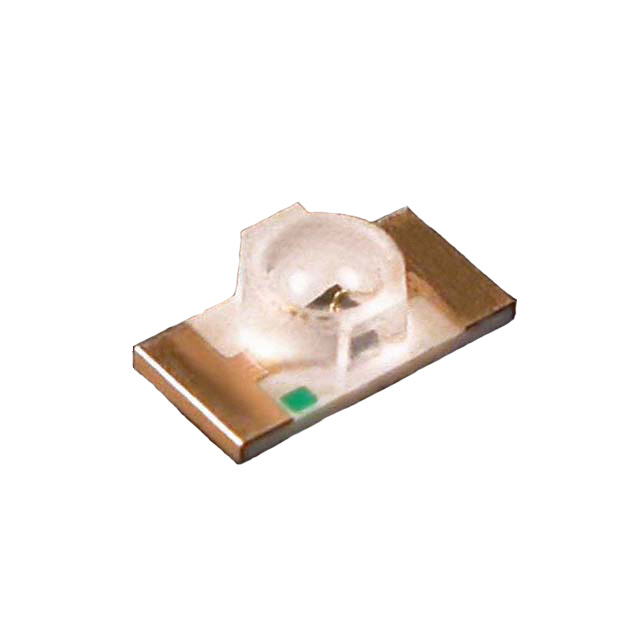

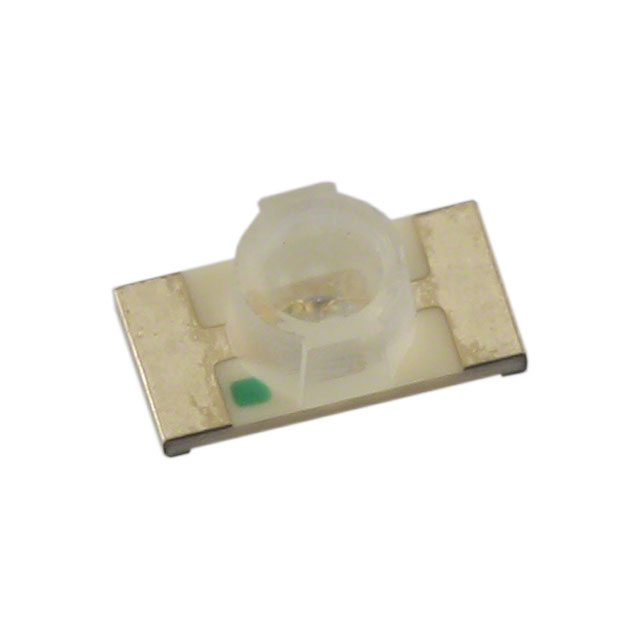

APTL3216 Series

Catalog

LED RED CLEAR 1206 SMD

Part	Millicandela Rating	Color	Height (Max) [Max] [z]	Lens Size [diameter]	Viewing Angle	Package / Case	Current - Test	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Lens Style	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Supplier Device Package	Mounting Type	Lens Transparency	Height (Max) [z]	Configuration
Kingbright APTL3216SURCK-01	230 mcd	Red	1.2 mm	1.1 mm	80 °	1206 (3216 Metric)	20 mA	630 nm	1.95 V	Round with Domed Top	Colorless	1.6 mm	3.2 mm	645 nm	1206	Surface Mount	Clear
Kingbright APTL3216SURCK	230 mcd	Red		1.6 mm	70 °	1206 (3216 Metric)	20 mA	630 nm	1.95 V	Round with Flat Top	Colorless	1.6 mm	3.2 mm	645 nm	Chip LED	Surface Mount	Clear	1.1 mm	Standard

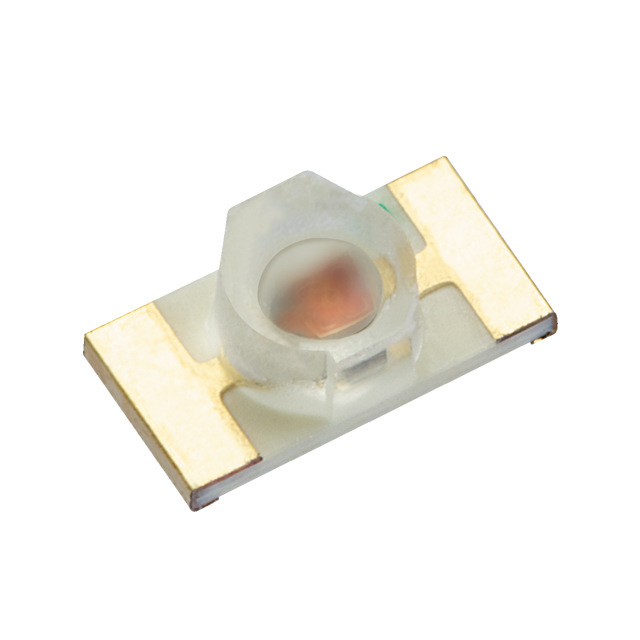

Kingbright APTL3216ZGCK	1000 mcd	Green			80 °	1206 (3016 Metric) 1206 (3216 Metric)	20 mA	525 nm	3.3 V	Irregular	Colorless	1.6 mm	3.2 mm	515 nm	2-SMD	Surface Mount	Clear	1.1 mm	Standard

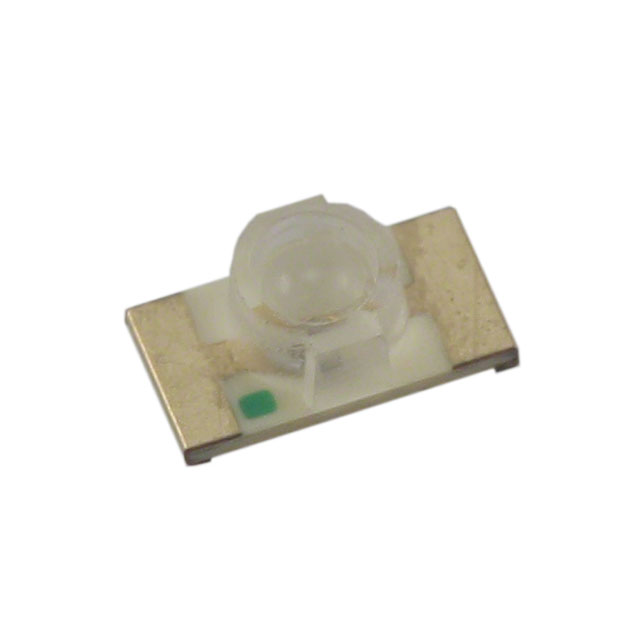

Kingbright APTL3216SYCK	350 mcd	Yellow		1.6 mm	70 °	1206 (3216 Metric)	20 mA	590 nm	2 V	Round with Flat Top	Colorless	1.6 mm	3.2 mm	590 nm	Chip LED	Surface Mount	Clear	1.1 mm	Standard
Kingbright APTL3216ZGC	1100 mcd	Green		1.6 mm	70 °	1206 (3216 Metric)	20 mA	525 nm	3.3 V	Round with Flat Top	Colorless	1.6 mm	3.2 mm	515 nm	Chip LED	Surface Mount	Clear	1.1 mm	Standard
Kingbright APTL3216ZGCK-01	1000 mcd	Green	1.2 mm	1.1 mm	80 °	1206 (3216 Metric)	20 mA	525 nm	3.3 V	Round with Domed Top	Colorless	1.6 mm	3.2 mm	515 nm	1206	Surface Mount	Clear
Kingbright APTL3216QBC/D	250 mcd	Blue		1.6 mm	70 °	1206 (3216 Metric)	20 mA	465 nm	3.3 V	Round with Flat Top	Colorless	1.6 mm	3.2 mm	460 nm	Chip LED	Surface Mount	Clear	1.1 mm	Standard

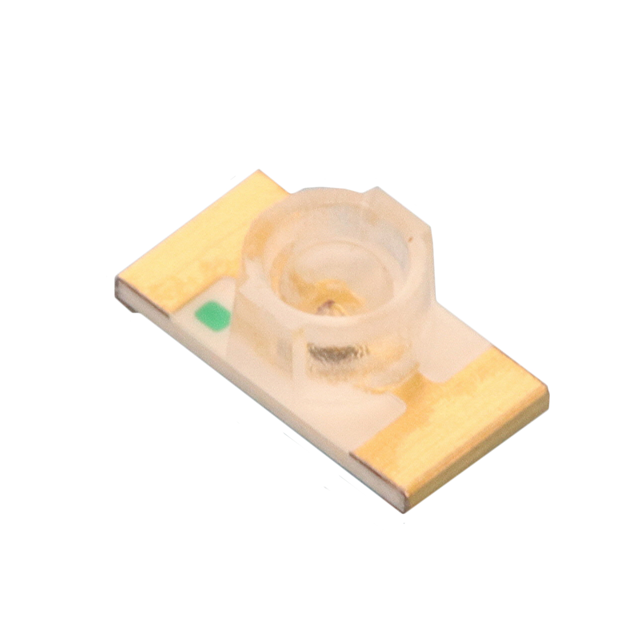

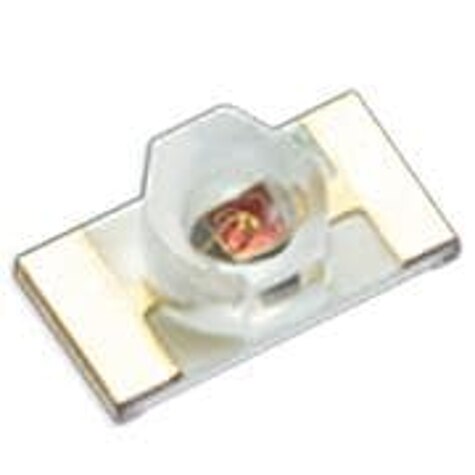

Kingbright APTL3216CGCK-01	100 mcd	Green	1.2 mm	1.1 mm	80 °	1206 (3216 Metric)	20 mA	570 nm	2.1 V	Round with Domed Top	Colorless	1.6 mm	3.2 mm		1206	Surface Mount	Clear

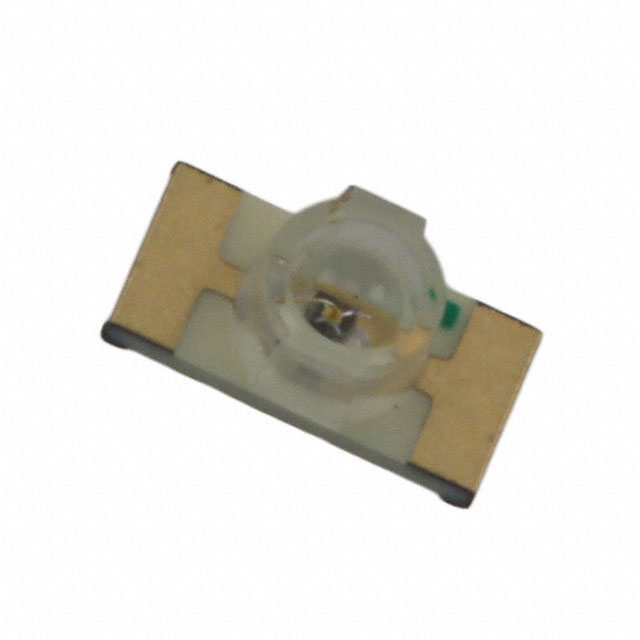

Kingbright APTL3216SECK-01	350 mcd		1.2 mm	1.1 mm	80 °	1206 (3216 Metric)	20 mA	605 nm	2.1 V	Round with Domed Top	Colorless	1.6 mm	3.2 mm	610 nm	1206	Surface Mount	Clear
Kingbright APTL3216PBC/A	200 mcd	Blue		1.6 mm	70 °	1206 (3216 Metric)	20 mA	470 nm	3.2 V	Round with Flat Top	Colorless	1.6 mm	3.2 mm	468 nm	Chip LED	Surface Mount	Clear	1.1 mm	Standard
