PS2805C-4 Series

High Isolation Voltage AC Input Response Type SSOP Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

High Isolation Voltage AC Input Response Type SSOP Photocoupler

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Number of Channels	Current - DC Forward (If) (Max)	Package / Case [y]	Package / Case	Package / Case [x]	Current - Output / Channel	Output Type	Voltage - Isolation	Current Transfer Ratio (Min) [Min]	Mounting Type	Vce Saturation (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Max) [Max]	Current Transfer Ratio (Max)	Current - DC Forward (If) (Max) [Max]	Voltage - Output (Max) [Max]	Turn On / Turn Off Time (Typ)

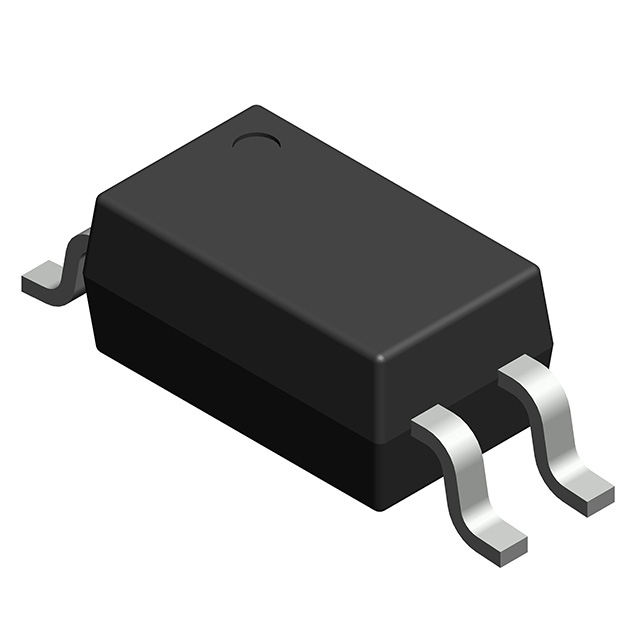

Renesas Electronics Corporation PS2805-1-F3-A	4-SSOP	100 °C	-55 °C	1.1 V	1	50 mA	4.4 mm	4-SOIC	0.173 in	50 mA	1.81 mOhm	2500 Vrms	80 %	Surface Mount	300 mV	5 µs	3 µs	600 %
Renesas Electronics Corporation PS2805A-4-A	16-SSOP	100 °C	-55 °C		4			16-SOIC		30 mA	1.81 mOhm	2500 Vrms	50 %	Surface Mount	300 mV	7 µs	5 µs		400 %	30 mA	70 V
Renesas Electronics Corporation PS2805C-4-A	16-SSOP	100 °C	-55 °C		4			16-SOIC		30 mA	1.81 mOhm	2500 Vrms	50 %	Surface Mount	300 mV	7 µs	5 µs		400 %	30 mA		7 µs 10 µs
Renesas Electronics Corporation PS2805C-4-F3-M-A	16-SSOP	100 °C	-55 °C		4			16-SOIC		30 mA	1.81 mOhm	2500 Vrms	100 %	Surface Mount	300 mV	7 µs	5 µs		400 %	30 mA		7 µs 10 µs
Renesas Electronics Corporation PS2805-1-L-A	4-VSSOP	100 °C	-55 °C	1.1 V	1	50 mA	4.4 mm	4-SOIC	0.173 in	50 mA	1.81 mOhm	2500 Vrms	80 %	Surface Mount	300 mV	5 µs	3 µs	600 %
Renesas Electronics Corporation PS2805C-1-F3-M-A	4-SSOP	100 °C	-55 °C		1		4.4 mm	4-SOIC	0.173 in	30 mA	1.81 mOhm	2500 Vrms	50 %	Surface Mount	300 mV	7 µs	5 µs		400 %	30 mA		7 µs 10 µs
Renesas Electronics Corporation PS2805-4-F3-A		100 °C	-55 °C	1.1 V	4	50 mA		16-SOIC		50 mA	1.81 mOhm	2500 Vrms	80 %	Surface Mount	300 mV	5 µs	3 µs	600 %
Renesas Electronics Corporation PS2805C-1-V-A	4-SSOP	100 °C	-55 °C		1		4.4 mm	4-SOIC	0.173 in	30 mA	1.81 mOhm	2500 Vrms	50 %	Surface Mount	300 mV	7 µs	5 µs		400 %	30 mA		7 µs 10 µs
Renesas Electronics Corporation PS2805C-1-V-F3-A	4-SSOP	100 °C	-55 °C		1		4.4 mm	4-SOIC	0.173 in	30 mA	1.81 mOhm	2500 Vrms	50 %	Surface Mount	300 mV	7 µs	5 µs		400 %	30 mA		7 µs 10 µs
Renesas Electronics Corporation PS2805C-4-V-A	16-SSOP	100 °C	-55 °C		4			16-SOIC		30 mA	1.81 mOhm	2500 Vrms	50 %	Surface Mount	300 mV	7 µs	5 µs		400 %	30 mA		7 µs 10 µs

Catalog

High Isolation Voltage AC Input Response Type SSOP Photocoupler

Description

The PS2805C-1 and PS2805C-4 are optically coupled isolators containing a GaAs light-emitting diode and an NPN silicon phototransistor in a plastic SSOP for high-density applications to realize an excellent cost performance. This package has a shield effect to cut off ambient light.
