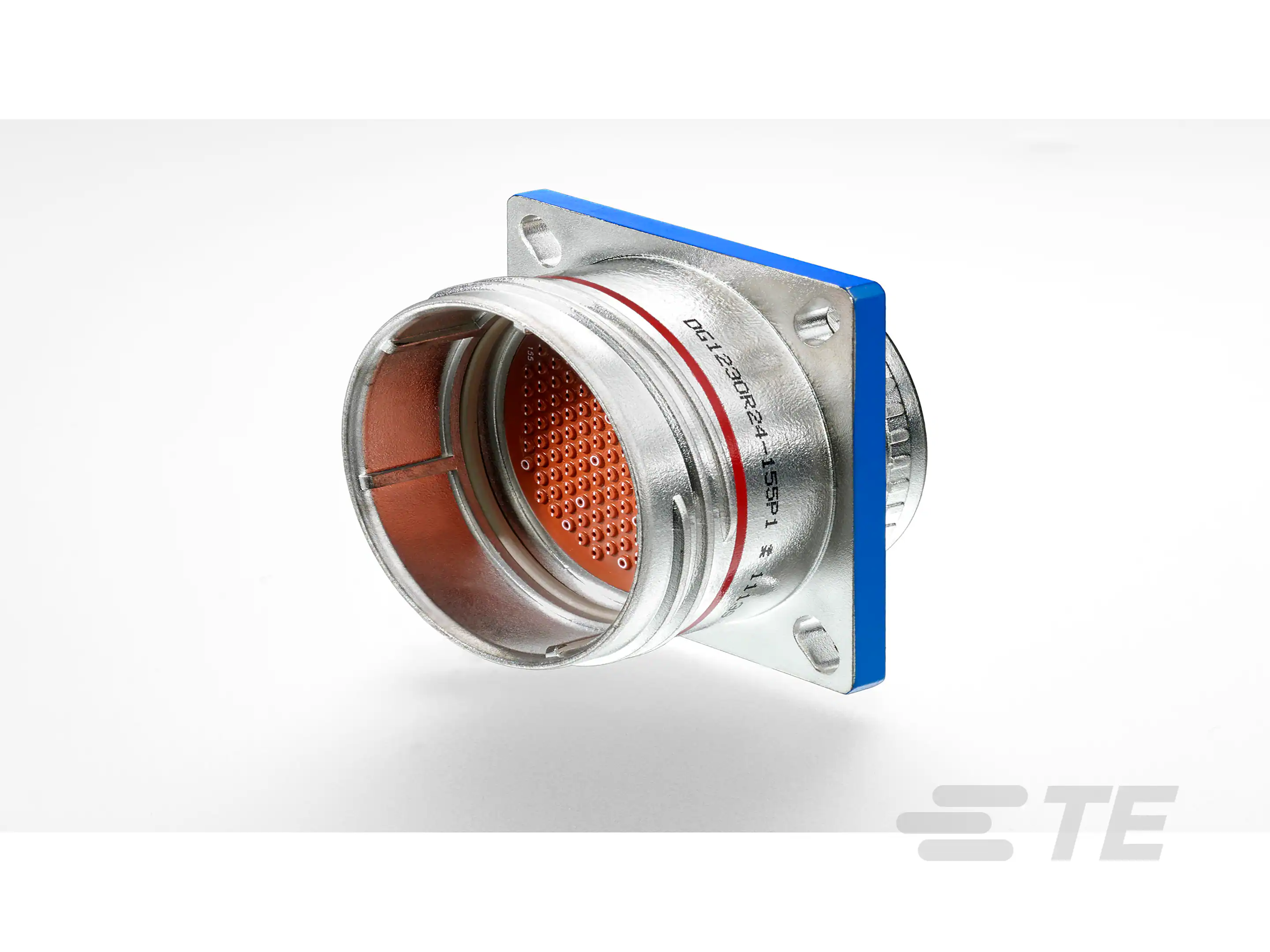

DG1230 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RECP ASSY
| Part | Shell Material | Contact Size | Note | Shielding | Connector Type | Type | Orientation [custom] | Contact Shape | Mounting Feature | Contact Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Housing Color | Mounting Type | Fastening Type | Shell Finish | Orientation | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Composite | 20 | Contacts Not Included; Insert Not Included | Shielded | Receptacle Housing | For Male Pins | 2 | Circular | Flange | Crimp | 45 | 20 | -65 ░C | 175 °C | 45 | Silver | Panel Mount | Bayonet Lock | Tin | |||
 TE Connectivity AMP Connectors | Composite | 20 | Contacts Not Included; Insert Not Included | Shielded | Receptacle Housing | For Male Pins | Circular | Flange | Crimp | 38 | 18 | -65 ░C | 175 °C | 38 | Silver | Panel Mount | Bayonet Lock | Tin | 3 | |||
 TE Connectivity AMP Connectors | Composite | 20 | Contacts Not Included; Insert Not Included | Shielded | Receptacle Housing | For Female Sockets | Circular | Flange | Crimp | 61 | 22 | -65 ░C | 175 °C | 61 | Silver | Panel Mount | Bayonet Lock | Tin | 3 | |||
TE Connectivity AMP Connectors | Composite | 23 | Contacts Not Included; Insert Not Included | Shielded | Receptacle Housing | For Male Pins | 1 | Circular | Flange | Crimp | 37 | 14 | -65 ░C | 175 °C | 37 | Silver | Panel Mount | Bayonet Lock | Tin | |||
TE Connectivity AMP Connectors | Composite | 20 | Contacts Not Included; Insert Not Included | Shielded | Receptacle Housing | For Male Pins | 2 | Circular | Flange | Crimp | 61 | 22 | -65 ░C | 175 °C | 61 | Silver | Panel Mount | Bayonet Lock | Tin | |||
TE Connectivity AMP Connectors | Composite | 23 | Contacts Not Included; Insert Not Included | Shielded | Receptacle Housing | For Female Sockets | 1 | Circular | Flange | Crimp | 12 | 10 | -65 ░C | 175 °C | 12 | Silver | Panel Mount | Bayonet Lock | Tin | |||
TE Connectivity AMP Connectors | Composite | 23 | Contacts Not Included; Insert Not Included | Shielded | Receptacle Housing | For Female Sockets | 1 | Circular | Flange | Crimp | 121 | 22 | -65 ░C | 175 °C | 121 | Silver | Panel Mount | Bayonet Lock | Tin | |||
TE Connectivity AMP Connectors | Composite | 20 | Contacts Not Included; Insert Not Included | Shielded | Receptacle Housing | For Female Sockets | 1 | Circular | Flange | Crimp | -65 ░C | 175 °C | 19 | Silver | Panel Mount | Bayonet Lock | Tin | 19 | 14 | |||
TE Connectivity AMP Connectors | Composite | 23 | Contacts Not Included; Insert Not Included | Shielded | Receptacle Housing | For Female Sockets | 1 | Circular | Flange | Crimp | 55 | 16 | -65 ░C | 175 °C | 55 | Silver | Panel Mount | Bayonet Lock | Tin | |||
TE Connectivity AMP Connectors |
