SFW14R Series

Catalog

CONN FFC FPC BOTTOM 14POS 1MM RA

Part	Housing Color	Mating Cycles	Actuator Color	Flat Flex Type	FFC, FCB Thickness	Pitch	Pitch	Connector/Contact Type	Actuator Material	Number of Positions	Material Flammability Rating	Housing Material	Cable End Type	Contact Material	Features	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination	Height Above Board [z]	Height Above Board [z]	Locking Feature	Mounting Type	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) SFW14R-3STE1LF	Black	20	Black	FFC FPC	0.3 mm	1 mm	0.039 in	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	14	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Straight	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	100 V	-55 C	105 ░C	Tin	Solder	0.106 in	2.7 mm	Slide Lock	Right Angle Surface Mount
Amphenol ICC (FCI) SFW14R-4STE9LF	Black	20	Brown	FPC	0.33 mm	1 mm	0.039 in	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	14	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Notched	Phosphor Bronze		100 V	-55 C	105 ░C	Tin	Solder	0.106 in	2.7 mm	Slide Lock	Right Angle Surface Mount
Amphenol ICC (FCI) SFW14R-4STE1LF	Black	20	Brown	FFC FPC		1 mm	0.039 in	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	14	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Notched Tapered	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	100 V	-55 C	105 ░C	Tin	Solder	0.106 in	2.7 mm	Slide Lock	Right Angle Surface Mount	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW14R-2STAE1LF	Brown	20	Black	FPC	0.3 mm	1 mm	0.039 in	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	14	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Tapered	Phosphor Bronze		100 V	-55 C	105 ░C	Gold	Solder	0.106 in	2.7 mm	Slide Lock	Right Angle Surface Mount

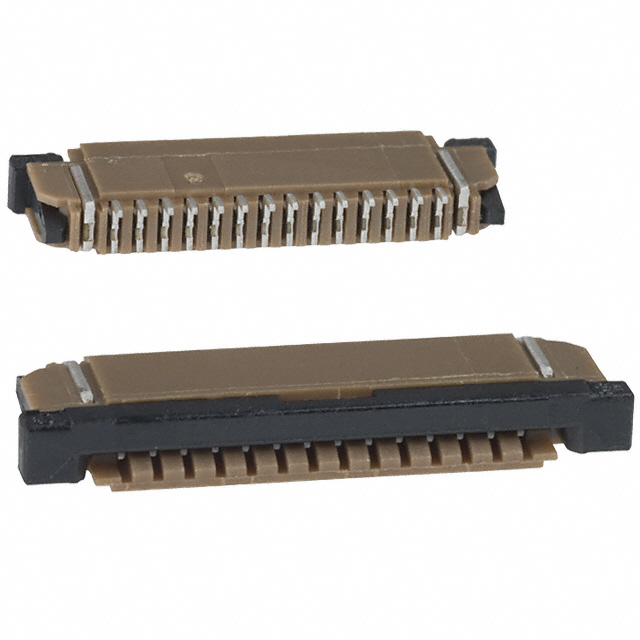

Amphenol ICC (FCI) SFW14R-1STE1	Brown		Black	FFC FPC		1 mm	0.039 in	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	14	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Phosphor Bronze					Tin Alloy	Solder	0.106 in	2.7 mm	Slide Lock	Right Angle Surface Mount	0.3 mm	0.33 mm

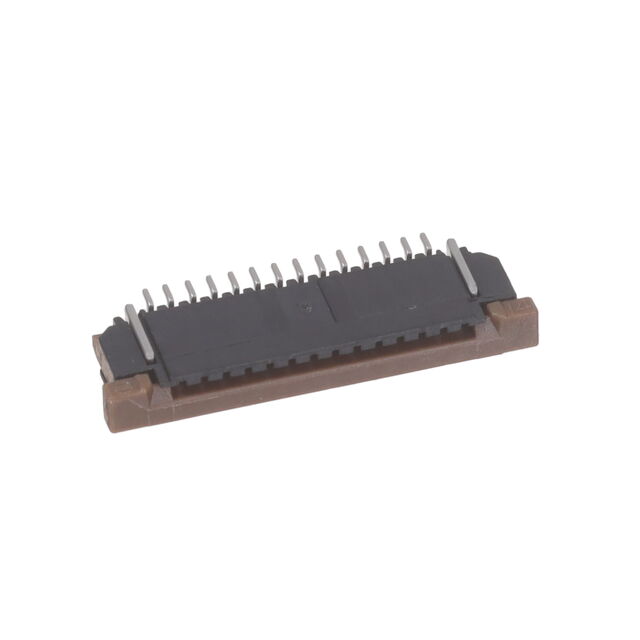

Amphenol ICC (FCI) SFW14R-3STE1	Black		Brown	FFC FPC		1 mm	0.039 in	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	14	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Notched	Phosphor Bronze					Tin Alloy	Solder	0.106 in	2.7 mm	Slide Lock	Right Angle Surface Mount	0.3 mm	0.33 mm

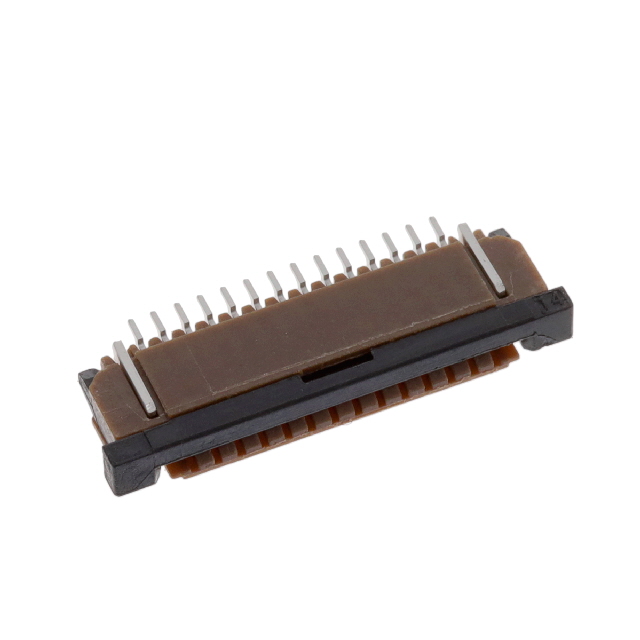

Amphenol ICC (FCI) SFW14R-2STE9LF	Brown	20	Black	FFC FPC		1 mm	0.039 in	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	14	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Phosphor Bronze		100 V	-55 C	105 ░C	Tin	Solder	0.106 in	2.7 mm	Slide Lock	Right Angle Surface Mount	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW14R-1STGE1LF	Brown	20	Black	FPC	0.33 mm	1 mm	0.039 in	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	14	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Tapered	Phosphor Bronze		100 V	-55 C	105 ░C	Gold	Solder	0.106 in	2.7 mm	Slide Lock	Right Angle Surface Mount
Amphenol ICC (FCI) SFW14R-4STAE5LF	Black		Brown	FPC	0.33 mm	1 mm	0.039 in	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	14	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Tabbed	Phosphor Bronze					Gold	Solder	0.106 in	2.7 mm	Slide Lock	Right Angle Surface Mount

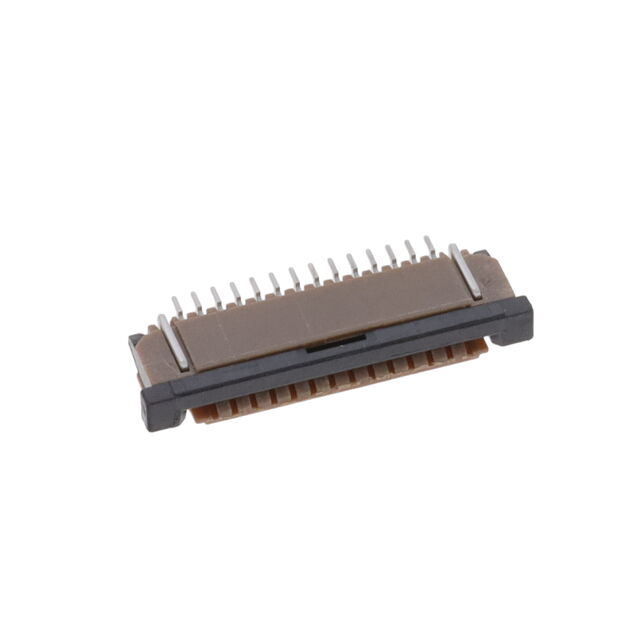

Amphenol ICC (FCI) SFW14R-2STE1LF	Brown	20	Black	FFC FPC		1 mm	0.039 in	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	14	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Straight Tapered	Phosphor Bronze		100 V	-55 C	105 ░C	Tin	Kinked Pin	0.106 in	2.7 mm	Slide Lock	Right Angle Surface Mount	0.3 mm	0.33 mm
