391-033 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 33POS 0.100

Part	Termination Rows	Material - Insulation	Number of Positions [custom]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Number of Rows	Number of Positions/Bay/Row	Mounting Type	Gender	Pitch	Pitch	Color	Flange Feature	Card Type	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 391-033-520-108	1	Polyester Thermoplastic	33	Semi Bellows	0.25 Ám	10 Áin	Gold	Solder	1	33	Through Hole	Female	0.1 "	2.54 mm	Black	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	-40 C	105 ░C

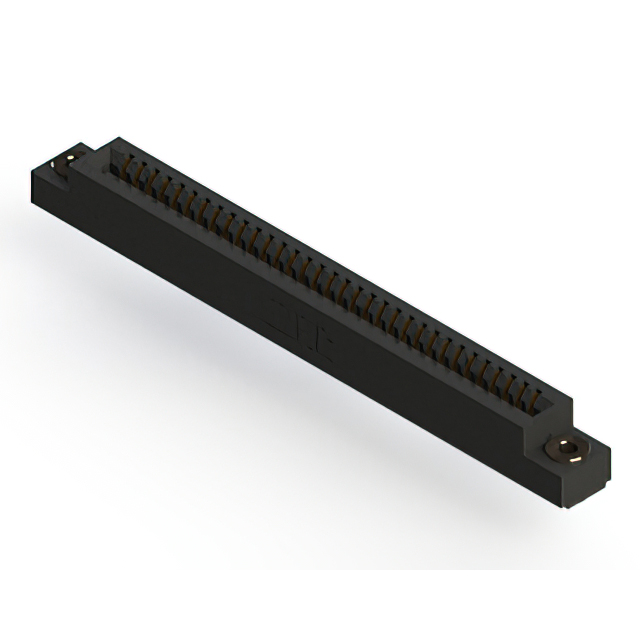

EDAC Inc. 391-033-524-103	1	Polyester Thermoplastic	33	Semi Bellows	0.25 Ám	10 Áin	Gold	Solder	1	33	Through Hole	Female	0.1 "	2.54 mm	Black	Floating Bobbin Flush Mount	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	-40 C	105 ░C	0.116 "	2.95 mm
EDAC Inc. 391-033-522-101	1	Polyester Thermoplastic	33	Semi Bellows	0.25 Ám	10 Áin	Gold	Solder	1	33	Through Hole	Female	0.1 "	2.54 mm	Black		Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	-40 C	105 ░C
EDAC Inc. 391-033-524-102	1	Polyester Thermoplastic	33	Semi Bellows	0.25 Ám	10 Áin	Gold	Solder	1	33	Through Hole	Female	0.1 "	2.54 mm	Black	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	-40 C	105 ░C	0.128 "	3.25 mm
EDAC Inc. 391-033-520-101	1	Polyester Thermoplastic	33	Semi Bellows	0.25 Ám	10 Áin	Gold	Solder	1	33	Through Hole	Female	0.1 "	2.54 mm	Black		Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	-40 C	105 ░C
EDAC Inc. 391-033-524-104	1	Polyester Thermoplastic	33	Semi Bellows	0.25 Ám	10 Áin	Gold	Solder	1	33	Through Hole	Female	0.1 "	2.54 mm	Black	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	-40 C	105 ░C	0.156 "	3.96 mm
EDAC Inc. 391-033-520-102	1	Polyester Thermoplastic	33	Semi Bellows	0.25 Ám	10 Áin	Gold	Solder	1	33	Through Hole	Female	0.1 "	2.54 mm	Black	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	-40 C	105 ░C	0.128 "	3.25 mm
EDAC Inc. 391-033-521-104	1	Polyester Thermoplastic	33	Semi Bellows	0.25 Ám	10 Áin	Gold	Solder	1	33	Through Hole	Female	0.1 "	2.54 mm	Black	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	-40 C	105 ░C	0.156 "	3.96 mm
EDAC Inc. 391-033-521-101	1	Polyester Thermoplastic	33	Semi Bellows	0.25 Ám	10 Áin	Gold	Solder	1	33	Through Hole	Female	0.1 "	2.54 mm	Black		Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	-40 C	105 ░C
EDAC Inc. 391-033-522-102	1	Polyester Thermoplastic	33	Semi Bellows	0.25 Ám	10 Áin	Gold	Solder	1	33	Through Hole	Female	0.1 "	2.54 mm	Black	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Single	-40 C	105 ░C	0.128 "	3.25 mm
