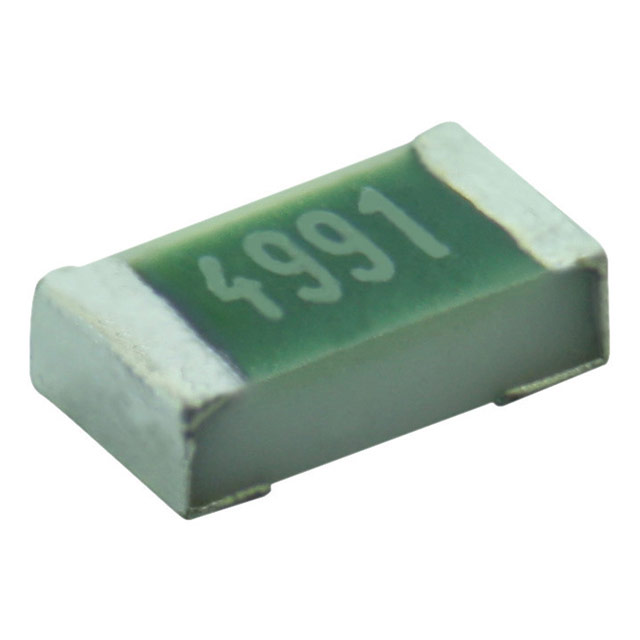

TNPW0603 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

Catalog

RES 33.2K OHM 0.1% 0.21W 0603

...

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Package / Case	Temperature Coefficient	Features	Number of Terminations	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance	Tolerance	Power (Watts)
Vishay General Semiconductor - Diodes Division TNPW060333K2BYEA	0.85 mm	0.061 in	1.55 mm	0.033 in	0.21 W	0603 (1608 Metric)	10 ppm/°C	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	-55 °C	347 °F	AEC-Q200	Thin Film	0.022 in	0.55 mm	33.2 kOhms	0.1 %
Vishay General Semiconductor - Diodes Division TNPW06033K44BEEN	0.85 mm	0.061 in	1.55 mm	0.033 in	0.21 W	0603 (1608 Metric)	25 ppm/°C	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	-55 °C	347 °F	AEC-Q200	Thin Film	0.022 in	0.55 mm	3.44 kOhms	0.1 %
Vishay General Semiconductor - Diodes Division TNPW0603536RBECN	0.85 mm	0.063 in	1.6 mm	0.033 in	0.1 W	0603 (1608 Metric)	25 ppm/°C	Military	2	-55 °C	125 °C		Thin Film	0.022 in	0.55 mm	536 Ohms	0.1 %	0.1 W
Vishay General Semiconductor - Diodes Division TNPW06033K60FETA	0.85 mm	0.063 in	1.6 mm	0.033 in	0.1 W	0603 (1608 Metric)	25 ppm/°C	Military	2	-55 °C	125 °C		Thin Film	0.022 in	0.55 mm	3.6 kOhms	1 %	0.1 W
Vishay General Semiconductor - Diodes Division TNPW06033K83BEEA	0.85 mm	0.061 in	1.55 mm	0.033 in	0.21 W	0603 (1608 Metric)	25 ppm/°C	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	-55 °C	347 °F	AEC-Q200	Thin Film	0.022 in	0.55 mm	3.83 kOhms	0.1 %
Vishay General Semiconductor - Diodes Division TNPW0603127RBEEA	0.85 mm	0.061 in	1.55 mm	0.033 in	0.21 W	0603 (1608 Metric)	25 ppm/°C	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	-55 °C	347 °F	AEC-Q200	Thin Film	0.022 in	0.55 mm	127 Ohms	0.1 %
Vishay General Semiconductor - Diodes Division TNPW060369K0BETA	0.85 mm	0.063 in	1.6 mm	0.033 in	0.1 W	0603 (1608 Metric)	25 ppm/°C	Military	2	-55 °C	125 °C		Thin Film	0.022 in	0.55 mm	69 kOhms	0.1 %	0.1 W
Vishay General Semiconductor - Diodes Division TNPW060356K2DETA	0.85 mm	0.063 in	1.6 mm	0.033 in	0.1 W	0603 (1608 Metric)	25 ppm/°C	Military	2	-55 °C	125 °C		Thin Film	0.022 in	0.55 mm	56.2 kOhms		0.1 W
Vishay General Semiconductor - Diodes Division TNPW060373K2BXTA	0.85 mm	0.063 in	1.6 mm	0.033 in	0.1 W	0603 (1608 Metric)	15 ppm/°C	Military	2	-55 °C	125 °C	AEC-Q200	Thin Film	0.022 in	0.55 mm	73.2 kOhms	0.1 %	0.1 W
Vishay General Semiconductor - Diodes Division TNPW060330R9BETA	0.85 mm	0.063 in	1.6 mm	0.033 in	0.1 W	0603 (1608 Metric)	25 ppm/°C	Military	2	-55 °C	125 °C		Thin Film	0.022 in	0.55 mm	30.9 Ohms	0.1 %	0.1 W
