172159 Series

Manufacturer: Molex

Catalog

CONN CARDEDGE HSG 8POS .156 WHT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Note	Card Type	Material - Insulation	Pitch	Pitch	Mounting Type	Number of Positions	Card Thickness	Card Thickness	Features	Color
Molex 1721590208	75 ░C	0 °C	UL94 V-2	Contacts Not Included	Non Specified - Single Edge	Nylon Polyamide (PA)	3.96 mm	0.156 in	Free Hanging (In-Line)	8	1.57 mm	0.062 in	Latch Lock	White

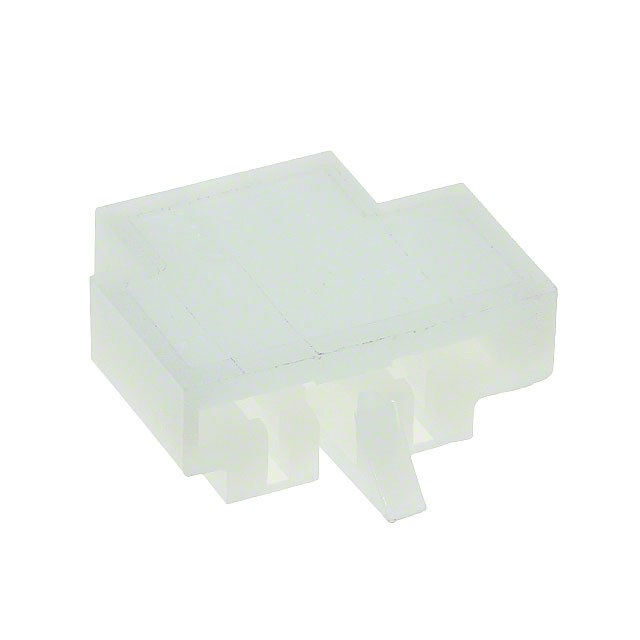

Molex 1721590502	75 ░C	0 °C	UL94 V-2	Contacts Not Included	Non Specified - Single Edge	Nylon Polyamide (PA)	3.96 mm	0.156 in	Free Hanging (In-Line)	2	1.57 mm	0.062 in	Latch Lock	White

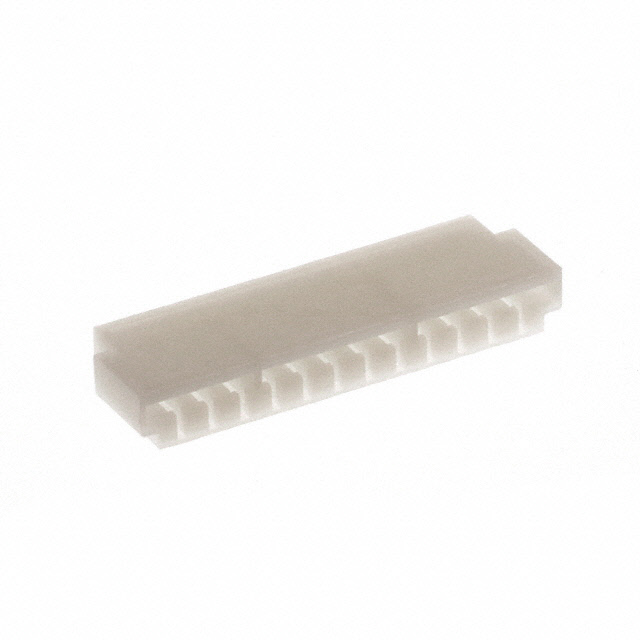

Molex 1721590212	75 ░C	0 °C	UL94 V-2	Contacts Not Included	Non Specified - Single Edge	Nylon Polyamide (PA)	3.96 mm	0.156 in	Free Hanging (In-Line)	12	1.57 mm	0.062 in	Latch Lock	White

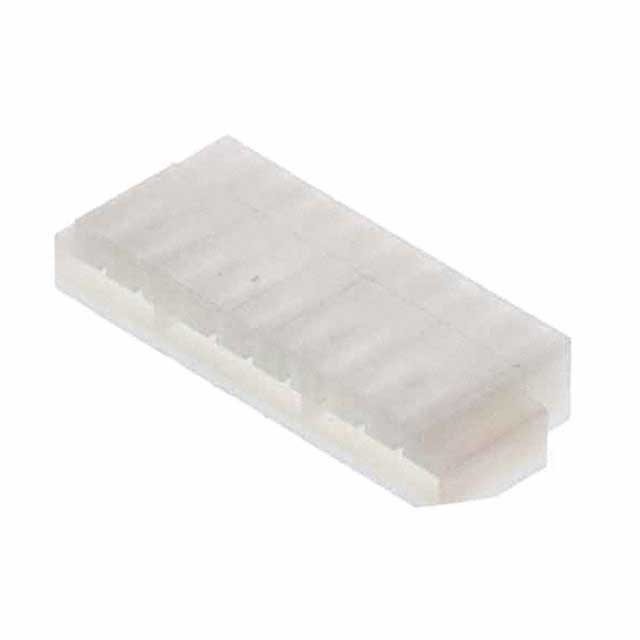

Molex 1721590209	75 ░C	0 °C	UL94 V-2	Contacts Not Included	Non Specified - Single Edge	Nylon Polyamide (PA)	3.96 mm	0.156 in	Free Hanging (In-Line)	9	1.57 mm	0.062 in	Latch Lock	White
Molex 1721590605	75 ░C	0 °C	UL94 V-2	Contacts Not Included	Non Specified - Single Edge	Nylon Polyamide (PA)	3.96 mm	0.156 in	Free Hanging (In-Line)	5	1.57 mm	0.062 in	Latch Lock	White

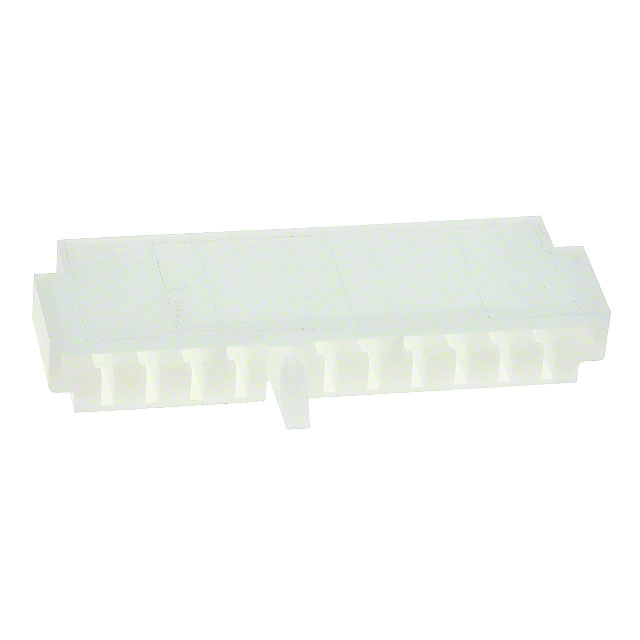

Molex 1721590610	75 ░C	0 °C	UL94 V-2	Contacts Not Included	Non Specified - Single Edge	Nylon Polyamide (PA)	3.96 mm	0.156 in	Free Hanging (In-Line)	10	1.57 mm	0.062 in	Latch Lock	White
Molex 1721590210	75 ░C	0 °C	UL94 V-2	Contacts Not Included	Non Specified - Single Edge	Nylon Polyamide (PA)	3.96 mm	0.156 in	Free Hanging (In-Line)	10	1.57 mm	0.062 in	Latch Lock	White
Molex 1721590206	75 ░C	0 °C	UL94 V-2	Contacts Not Included	Non Specified - Single Edge	Nylon Polyamide (PA)	3.96 mm	0.156 in	Free Hanging (In-Line)	6	1.57 mm	0.062 in	Latch Lock	White
Molex 1721590612	75 ░C	0 °C	UL94 V-2	Contacts Not Included	Non Specified - Single Edge	Nylon Polyamide (PA)	3.96 mm	0.156 in	Free Hanging (In-Line)	12	1.57 mm	0.062 in	Latch Lock	White
Molex 1721590609					Non Specified - Single Edge	Nylon Polyamide (PA)	3.96 mm	0.156 in	Free Hanging (In-Line)	9	1.57 mm	0.062 in	Latch Lock	White
