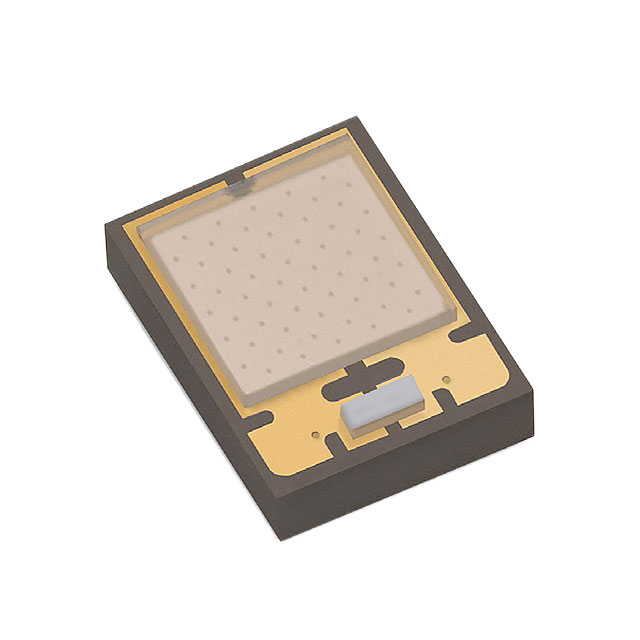

L1F3 Series
Manufacturer: Lumileds
Beta
⌘K
UV/NUV
| Part | Wavelength | Voltage - Forward (Vf) (Typ) | Package / Case | Current - DC Forward (If) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Orientation | Viewing Angle | Type | Wavelength [Max] | Wavelength [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumileds | 380 nm | 3.2 V | 2-SMD No Lead | 2 A | 120 °C | -40 °C | Surface Mount | Top View | 140 ° | Ultraviolet (UV) | ||
 Lumileds | 3.1 V | 0404 (1010 Metric) | 1 A | 120 °C | -40 °C | Surface Mount | Top View | 140 ° | Ultraviolet (UV) | 410 nm | 400 nm | |
 Lumileds | 3.1 V | 2-SMD No Lead | 2 A | 120 °C | -40 °C | Surface Mount | Top View | 138 ° | Ultraviolet (UV) | 400 nm | 390 nm | |
Lumileds | 3.1 V | 2-SMD No Lead | 2 A | 120 °C | -40 °C | Surface Mount | Top View | 138 ° | Ultraviolet (UV) | 420 nm | 410 nm | |
Lumileds | 3.1 V | 2-SMD No Lead | 2 A | 120 °C | -40 °C | Surface Mount | Top View | 138 ° | Ultraviolet (UV) | 410 nm | 400 nm |
