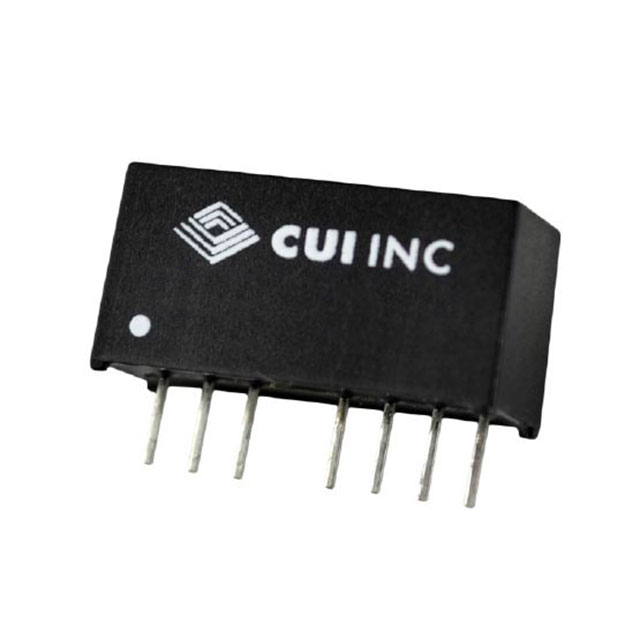

PDQ2-D24 Series
Manufacturer: CUI Inc.
Catalog
DC DC CONVERTER +/-15V 2W
| Part | Power (Watts) | Package / Case | Current - Output (Max) | Current - Output (Max) | Number of Outputs | Standard Number | Voltage - Output 2 | Control Features | Operating Temperature [Min] | Operating Temperature [Max] | Features | Applications | Efficiency | Mounting Type | Voltage - Output 1 | Voltage - Isolation | Approval Agency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Type | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 2 W | 8-SIP Module 7 Leads | 67 mA | 67 mA | 2 | 55032 Class A | -15 V | Active Low Enable | -40 C | 100 °C | OCP Remote On/Off SCP | ITE (Commercial) | 84 % | Through Hole | 15 V | 1.5 kV | EN | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 18 V | Isolated Module | 36 V | |
CUI Inc. | 2 W | 8-SIP Module 7 Leads | 1 | 55032 Class A | Active Low Enable | -40 C | 100 °C | OCP Remote On/Off SCP | ITE (Commercial) | 83 % | Through Hole | 15 V | 1.5 kV | EN | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 18 V | Isolated Module | 36 V | 134 mA | |||
CUI Inc. | 2 W | 8-SIP Module 7 Leads | 1 | 55032 Class A | Active Low Enable | -40 C | 100 °C | OCP Remote On/Off SCP | ITE (Commercial) | Through Hole | 12 V | 1.5 kV | EN | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 18 V | Isolated Module | 36 V | 167 mA | ||||
CUI Inc. | 2 W | 8-SIP Module 7 Leads | 1 | 55032 Class A | Active Low Enable | -40 C | 100 °C | OCP Remote On/Off SCP | ITE (Commercial) | 79 % | Through Hole | 3.3 V | 1.5 kV | EN | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 18 V | Isolated Module | 36 V | 500 mA |
