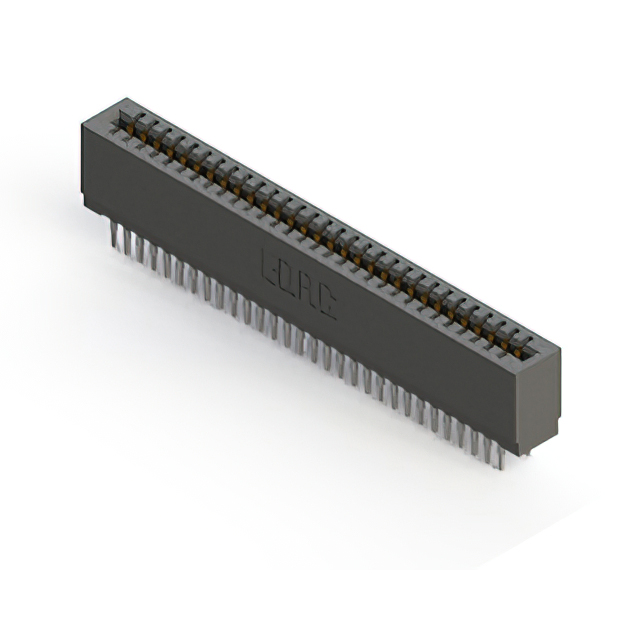

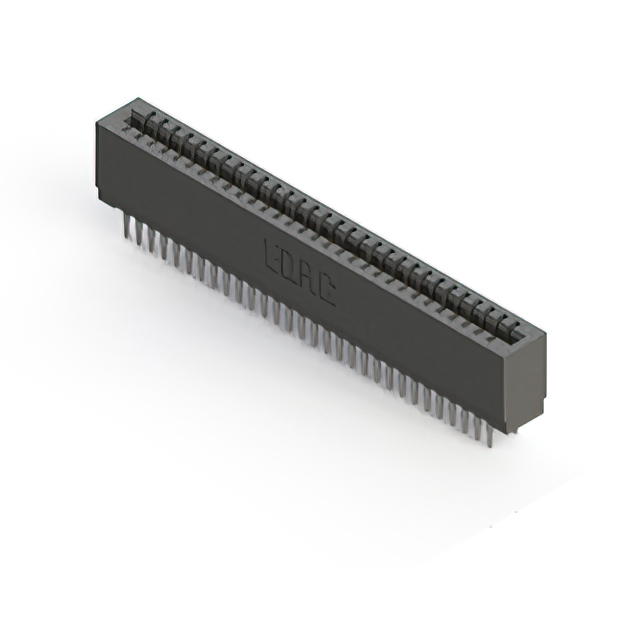

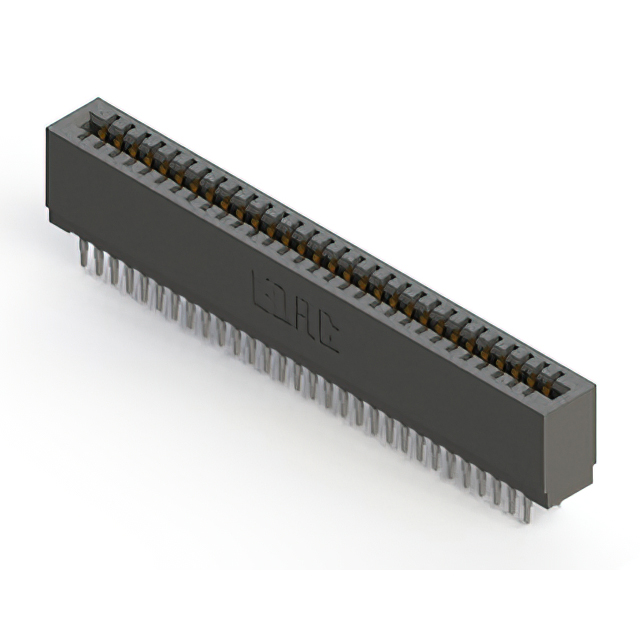

725-060 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 60POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Card Type | Contact Type | Mounting Type | Color | Gender | Number of Positions/Bay/Row | Number of Positions | Number of Rows [custom] | Termination | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Cantilever | Through Hole | Black | Female | 30 | 60 | 2 | Press-Fit Wire Wrap | |||
 EDAC Inc. | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | Black | Female | 60 | Press-Fit Wire Wrap | 1 | 60 | 1 | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Cantilever | Through Hole | Black | Female | 30 | 60 | 2 | Press-Fit | |||
 EDAC Inc. | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | Black | Female | 60 | Press-Fit | 1 | 60 | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | Black | Female | 60 | Press-Fit | 1 | 60 | 1 | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Cantilever | Through Hole | Black | Female | 30 | 60 | 2 | Press-Fit Wire Wrap | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Cantilever | Through Hole | Black | Female | 30 | 60 | 2 | Press-Fit | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Cantilever | Through Hole | Black | Female | 30 | 60 | 2 | Press-Fit | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Cantilever Make Before Break | Through Hole | Black | Female | 30 | 60 | 2 | Press-Fit | |||
 EDAC Inc. | Polyester Thermoplastic | 30 Áin | 0.76 Ám | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | Black | Female | 60 | Press-Fit | 1 | 60 | 1 |
