NCP45760 Series

Load Switch, Integrated, ecoSWITCH™ 20 mΩ, 24V, 8 A, Fault Protection

Catalog

Load Switch, Integrated, ecoSWITCH™ 20 mΩ, 24V, 8 A, Fault Protection

Part	Features	Mounting Type	Input Type	Number of Outputs	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Current - Output (Max) [Max]	Package / Case	Fault Protection	Switch Type	Output Configuration	Ratio - Input:Output [custom]	Rds On (Typ)	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Load [Max]	Voltage - Load [Min]

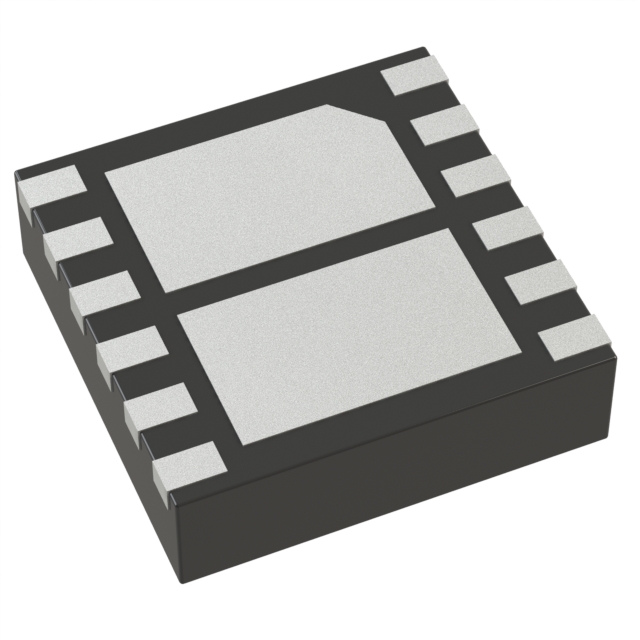

ON Semiconductor NCP45760IMN24RTWG	Slew Rate Controlled	Surface Mount	Non-Inverting	1	5.5 V	3 V	20 A	12-VFDFN Exposed Pad	Current Limiting (Adjustable) Open Load Detect Over Temperature Reverse Current UVLO	General Purpose	High Side	1:1	17 mOhm	N-Channel	85 °C	-40 °C	12-DFN (3x3)	24 V	3 V

Catalog

Load Switch, Integrated, ecoSWITCH™ 20 mΩ, 24V, 8 A, Fault Protection

Key Features

• Advanced Controller with Charge Pump

• Fault Protection: Short-Circuit Protection

• Soft-Start via Slew Rate Control

• Ultra-Low On-Resistance

• Input Voltage Range 2 V to 24 V (30V Tolerant)

• Low Standby Current

• Quick Output Discharge Function

• No External Components Required

• Enable Pins with CMOS Input Levels

• Power Good Signaling

• Fault Protection: Over Temperature

• Fault Protection: Under Voltage Lockout

• Pb-Free Device

• Fault Protection: Over Current Protection

Description

The NCP45760 load management device provides a component and area−reducing solution for efficient power domain switching with inrush current limit via soft start. This device is designed to integrate control and driver functionality with back−to−back high performance low on−resistance power MOSFETs in a single package. This cost effective solution is ideal for reverse current applications and the specific power management and disconnect functions used in USB Type−C and Type−C Power Delivery ports.
