TPS53119 Series
Manufacturer: Texas Instruments
Beta
⌘K
3-V TO 26-V, 20-A, SYNCHRONOUS D-CAP BUCK CONTROLLER WITH ECO-MODE
| Part | Topology | Clock Sync | Frequency - Switching [Max] | Frequency - Switching [Min] | Number of Outputs | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Output Configuration | Duty Cycle (Max) [Max] | Output Type | Package / Case | Synchronous Rectifier | Function | Output Phases | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Control Features | Board Type | Frequency - Switching | Regulator Topology | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Main Purpose | Outputs and Type | Outputs and Type | Voltage - Output | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

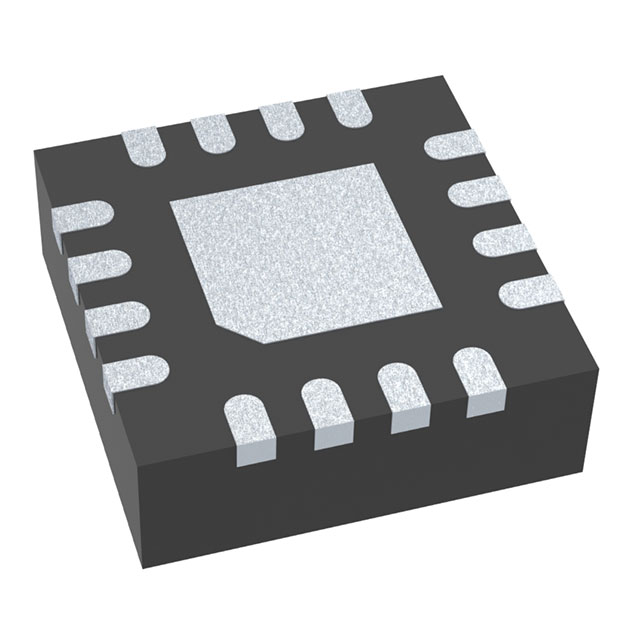

 Texas Instruments | Buck | 1.07 MHz | 200 kHz | 1 | Surface Mount | -20 °C | 85 C | 16-VQFN (3x3) | Positive | 90 % | Transistor Driver | 16-VFQFN Exposed Pad | Step-Down | 1 | 25 V | 4.5 V | Enable Soft Start | ||||||||||||||

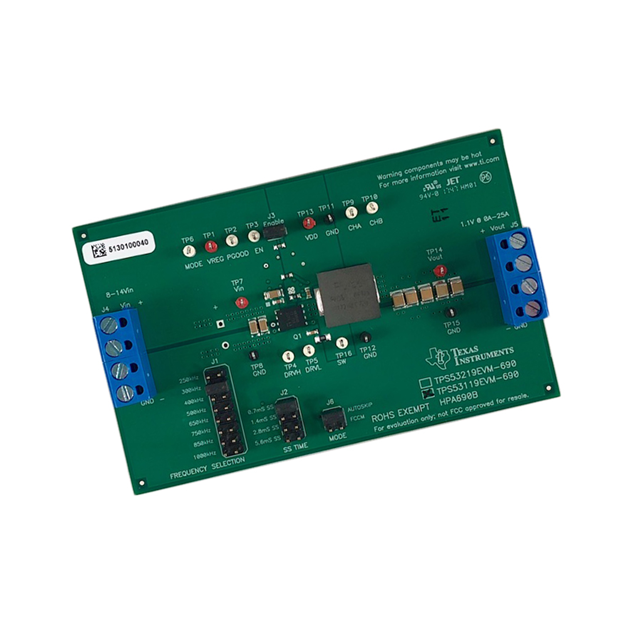

 Texas Instruments | Fully Populated | 300 kHz | Buck | Board(s) | 14 V | 8 V | TPS53119 | DC/DC Step Down | Non-Isolated | 1 | 1.1 V | 25 A | |||||||||||||||||||
 Texas Instruments | Buck | 1.07 MHz | 200 kHz | 1 | Surface Mount | -20 °C | 85 C | 16-VQFN (3x3) | Positive | 90 % | Transistor Driver | 16-VFQFN Exposed Pad | Step-Down | 1 | 25 V | 4.5 V | Enable Soft Start |
