B12-255 Series
Manufacturer: Ledex Dormeyer Saia, a Division of Johnson Electric
Beta
⌘K

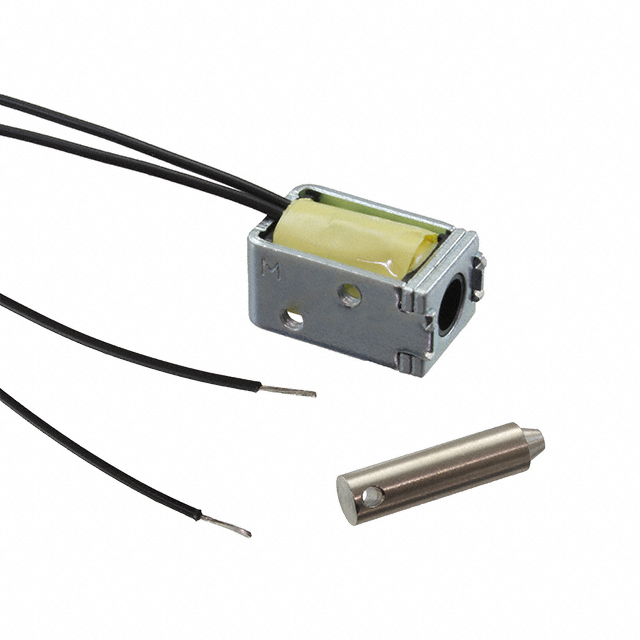

OPEN FRAME SOLENOID B12 - 12 VDC
| Part | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Technology | Termination Style | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Shaft Detail | Mounting Type | Stroke Length | Stroke Length | Power (Watts) | Voltage - Rated | Duty Cycle | Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ledex Dormeyer Saia, a Division of Johnson Electric | 0.157 in | 4 mm | Electromechanical | Wire Leads | 0.32 " | 8.13 mm | 10.16 mm | 0.4 " | 16 mm | 0.63 in | Round | Chassis Mount | 0.1 in | 2.54 mm | 5.2 W | 12 VDC | Intermittent | Open Frame (Pull) | 27.7 Ohm |
